Cross over 60 FSK SW

Cross over 60 FSK SW

Type GKSK 610 FSK SW
|
Item no. 6487940
|
EAN 4012197465971
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

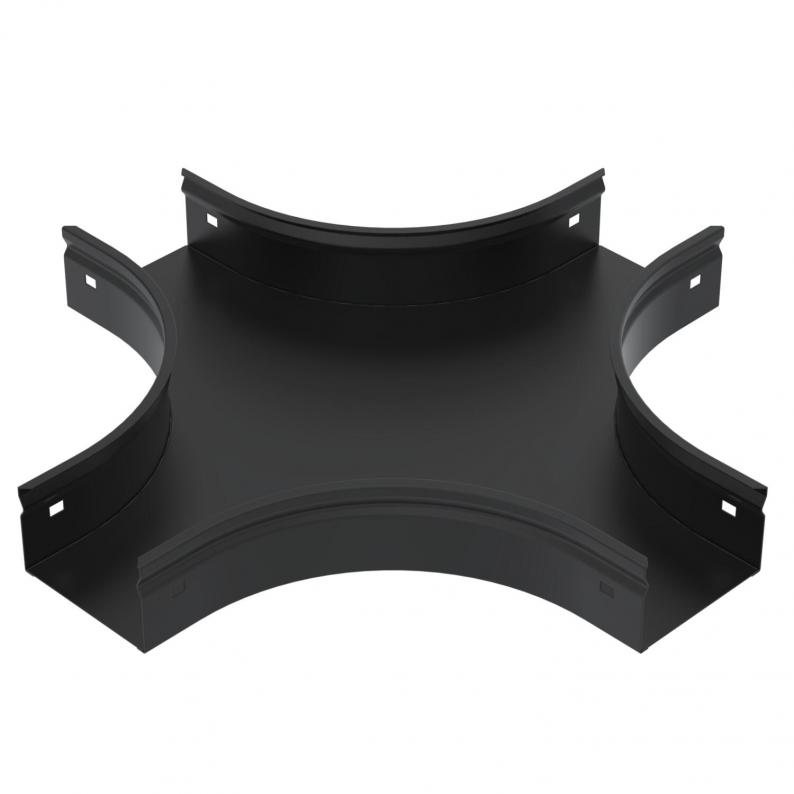

Horizontal cross over for all GKS... cable tray types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

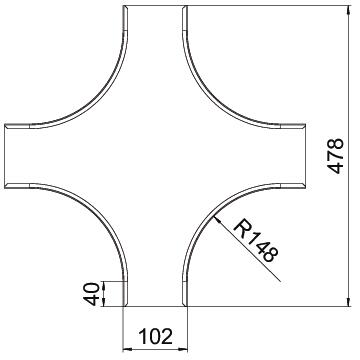

Dimensions

Width100 mm
Height60 mm
Dimension L478 mm
Dimension R102 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness0,8 mm
NATO hole patternno
Material thickness, floor plate0,8 mm
Rail thickness0,8 mm
Dimension60x100
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005

Downloads

0 selected

Product images (2)
Tender specifications (2)

Variants

Width
GKSK 610 FSK SW
Item no.
6487940
Width
100
GKSK 615 FSK SW
Item no.
6487941
Width
150
GKSK 620 FSK SW
Item no.
6487942
Width
200
GKSK 630 FSK SW
Item no.
6487944
Width
300
GKSK 640 FSK SW
Item no.
6487946
Width
400
GKSK 650 FSK SW
Item no.
6487948
Width
500
