Cross-over 60 FS
Type RK 615 FS
|Item no. 6043607
|EAN 4012196051618
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

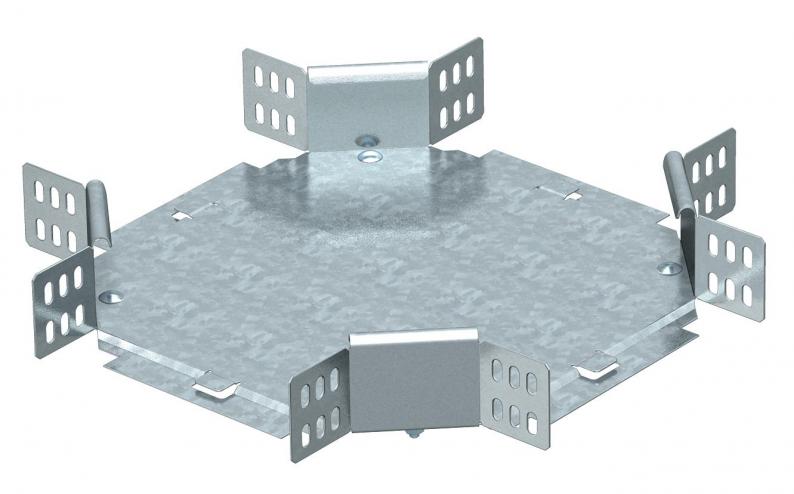

Horizontal cross-over for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state. All the sides are designed for the same cable tray width.
Including appropriate fastening material.
Technical data

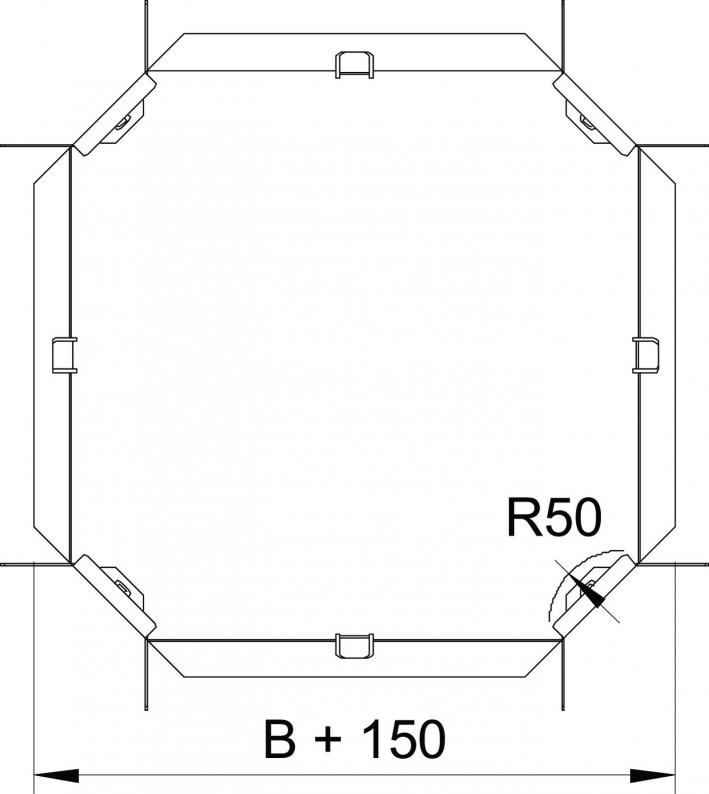

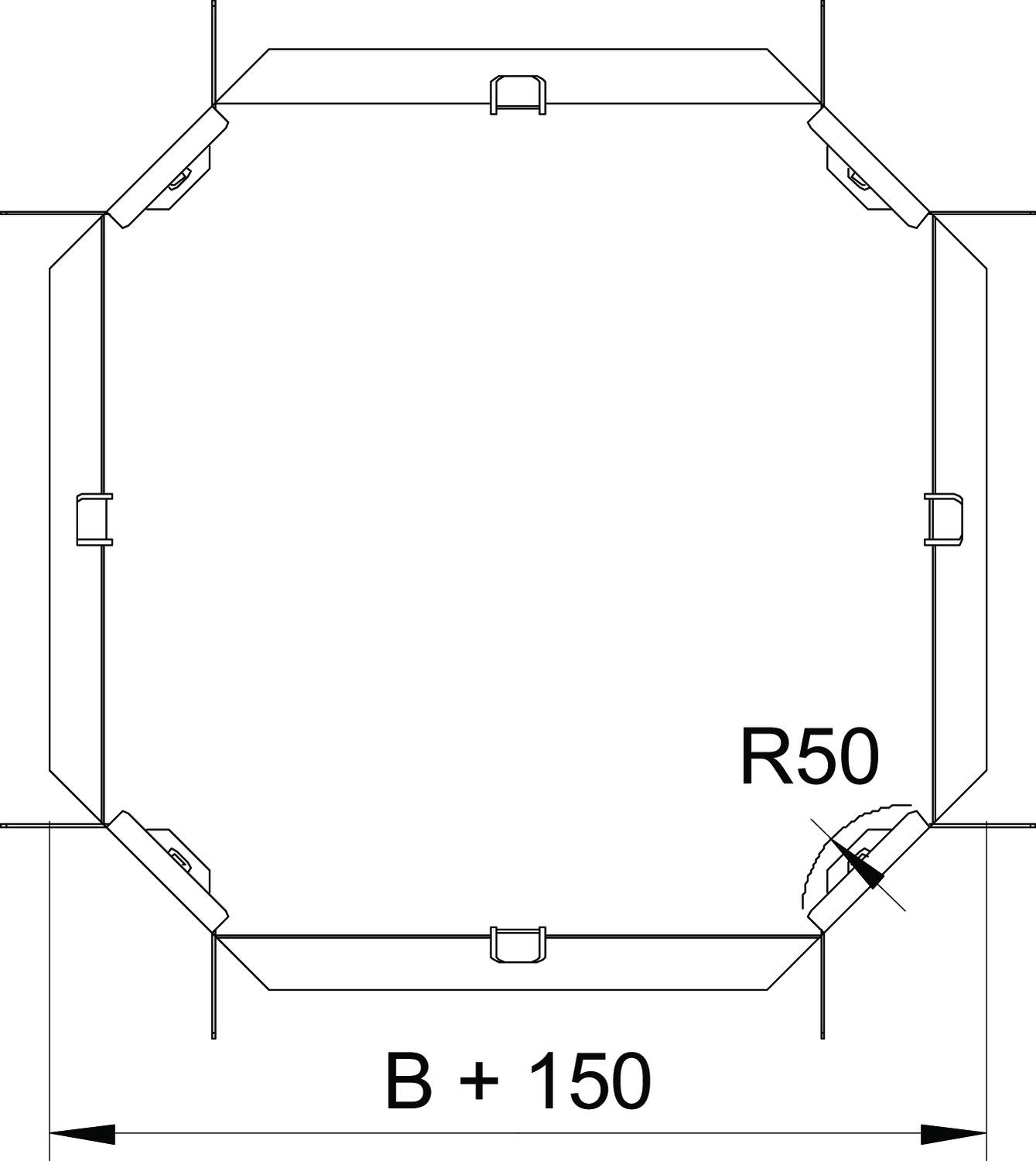

Dimensions
| Width | 150 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 150 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 60x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Item no.
RK 615 FS
150
6043607
RK 610 FS
100
6043615
RK 620 FS
200
6043623
RK 630 FS
300
6043631
Width
RK 615 FS
Item no.
6043607
Width
150
RK 610 FS
Item no.
6043615
Width
100
RK 620 FS
Item no.
6043623
Width
200
RK 630 FS
Item no.
6043631
Width
300
