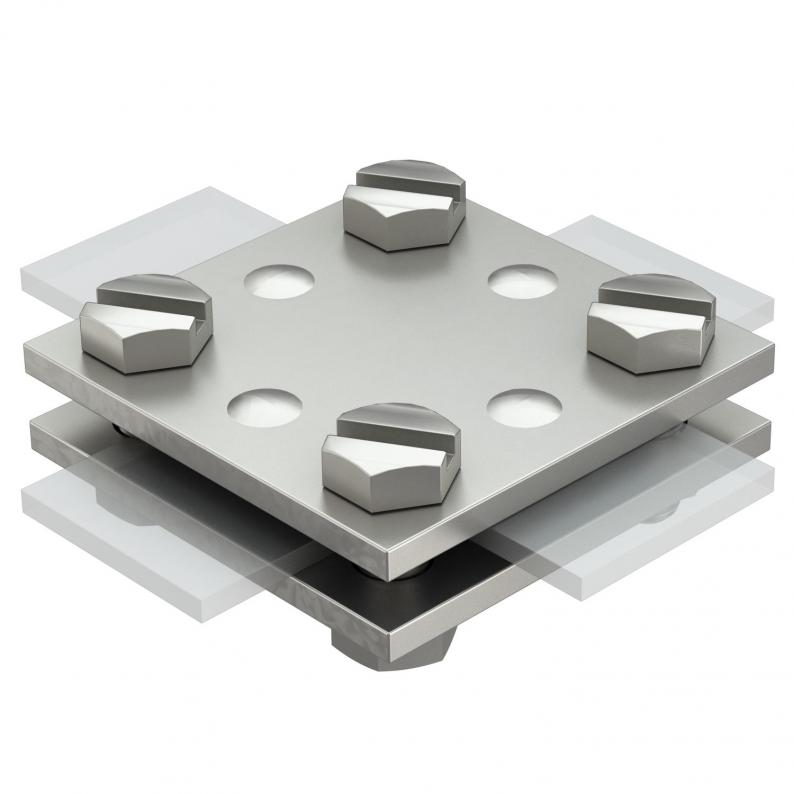

Cross-connector flat/flat without adapter plate A4
Type 256 25 SS316
|Item no. 5450489
|EAN 4012197008109
Item no. / Type
5450489 / 256 25 SS316
Smallest selling unit: 1 piece
1piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Max. FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
• Fit: Max. FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
Technical data

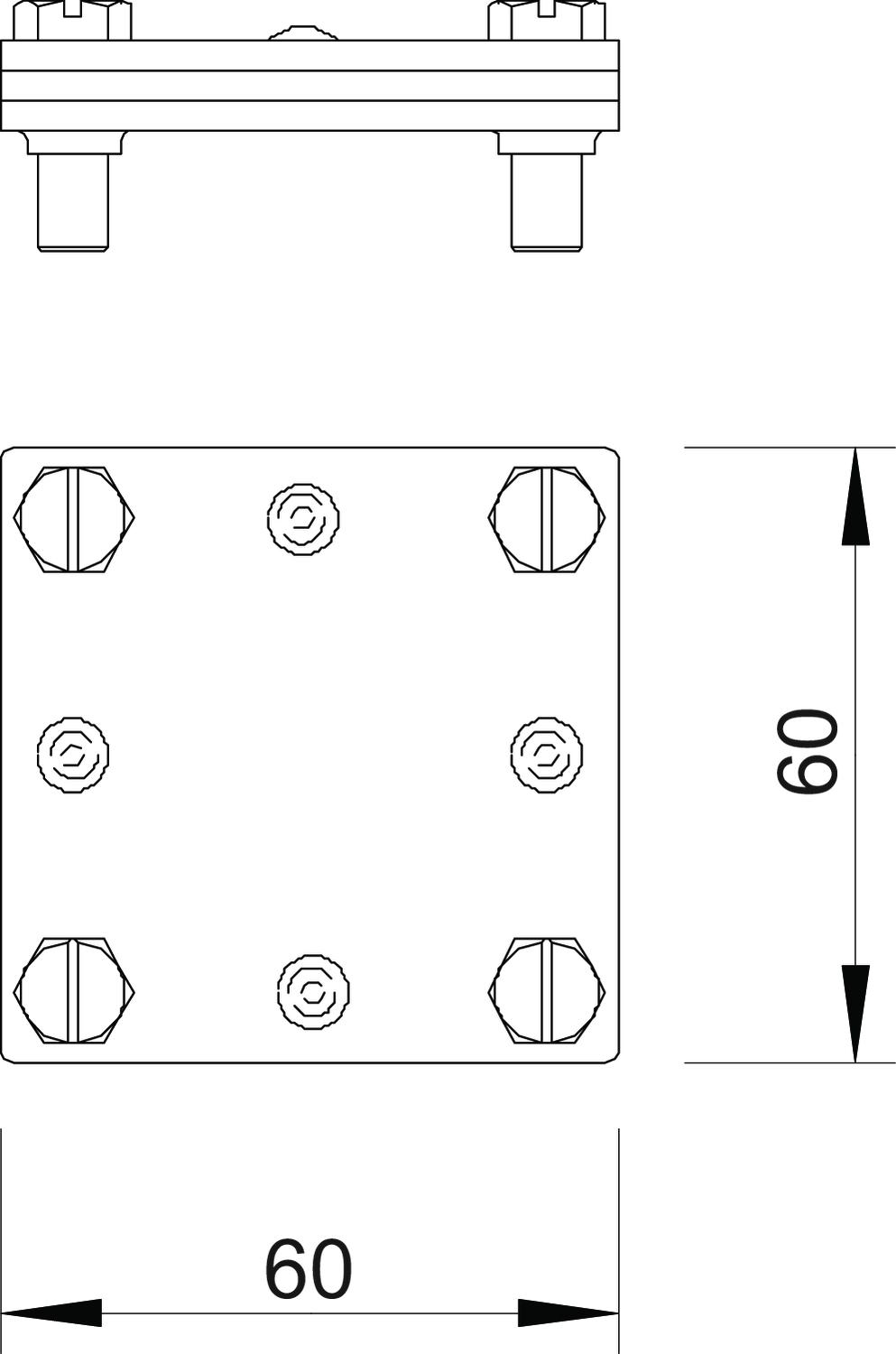

Dimensions
| Dimension A | 60 mm |
|---|---|
| Dimension B | 60 mm |
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Cross-connectors |
| Suitable for connection | Flat conductor Fl 30 / Fl 30 |
| Lightning current carrying capacity | H/100 kA |
| Fit | max. FL30 mm |
| Dimension | 25mm |
| Material | Stainless steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Fit
Item no.
256 25 SS316
max. FL30
5450489
256 25 SS316
Item no.
5450489
Fit
max. FL30
