Cover support for walkable cable trays
Type DSTK 100 FS
|Item no. 6049244
|EAN 4012197362935
Item no. / Type
6049244 / DSTK 100 FS
Smallest selling unit: 10 piece
10piece
piece
Description

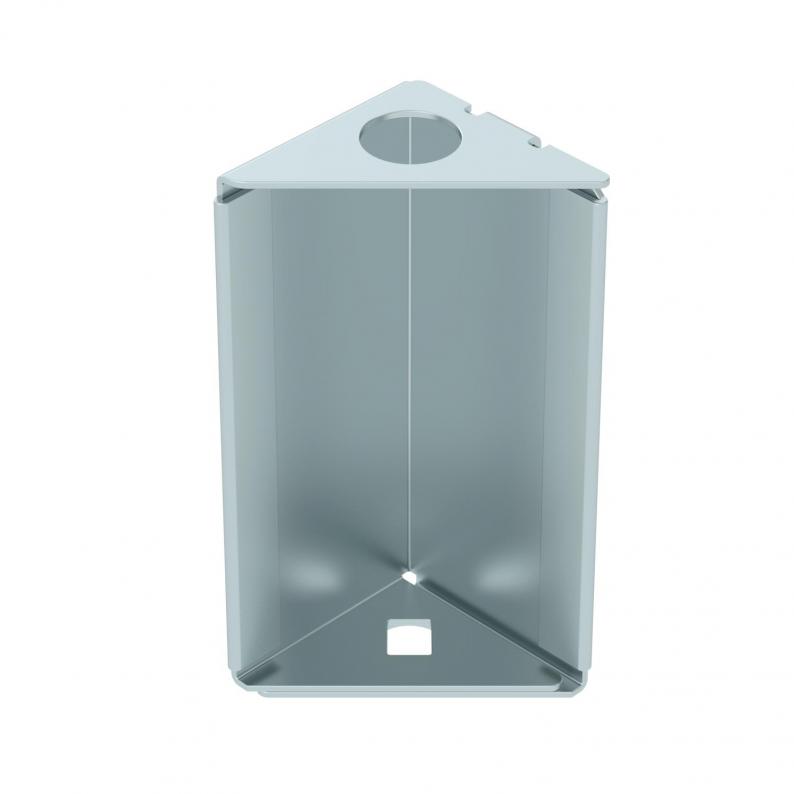

Cover support for the walkable BKRS cable tray system, as an additional support for covers. With rounded edges to protect the cables during routing.
Technical data

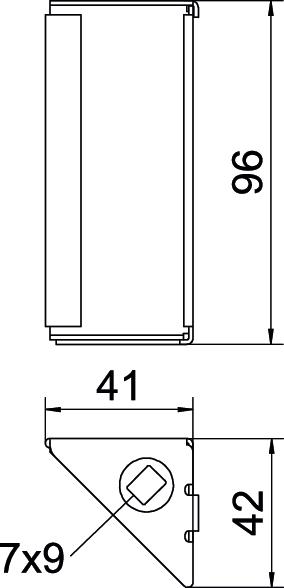

Dimensions
| Length | 41 mm |
|---|---|
| Width | 42 mm |
| Height | 100 mm |
| Dimension L | 96 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Material thickness | 1,25 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Profile shape | Miscellaneous |
| With screw accessories | no |
| Hole diameter | 15 mm |
| Suitable for profile shapes | Miscellaneous |
| Dimension | 96x43x42 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3996 kg CO2e / 1 Piece |
