Cover FS
Type GDRL 50 FS
|Item no. 6480100
|EAN 4012197449131
Item no. / Type
Length
Width
Plate thickness
Smallest selling unit: 3 m
3m
m
Description

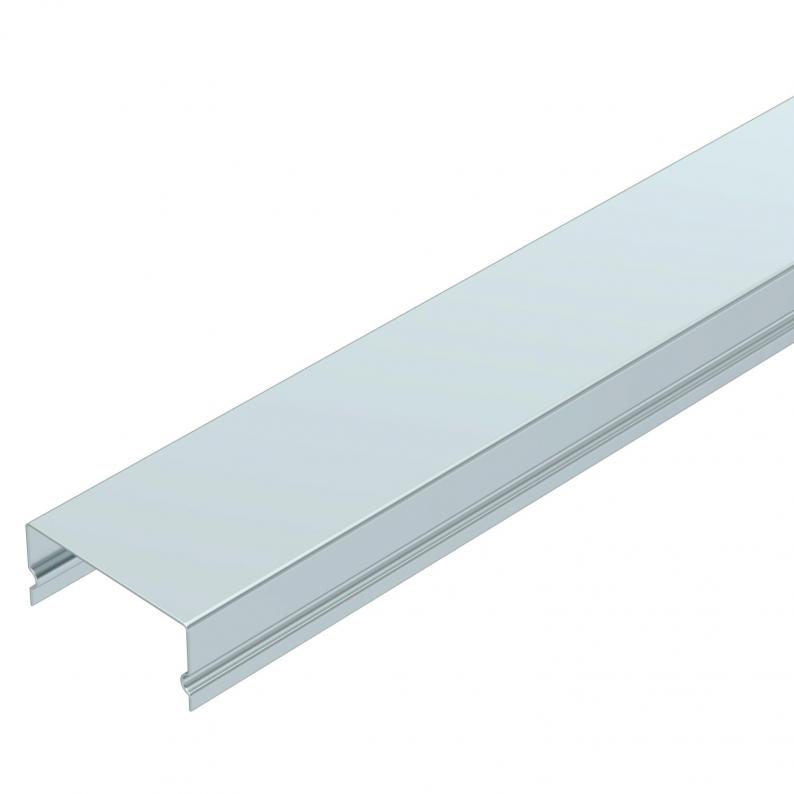

Unperforated cover for cable trays for direct attachment.
When using covers outdoors, additional measures against the influence of wind must be taken.
When using covers outdoors, additional measures against the influence of wind must be taken.
Technical data

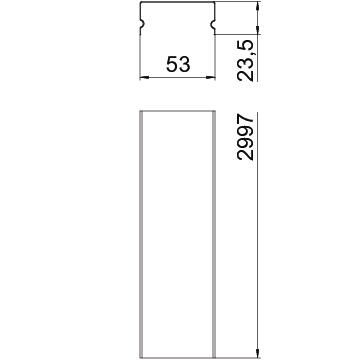

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 0,6 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening type | Locking |
| Dimension | 50x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Plate thickness
Item no.
GDRL 50 FS
3000
50
0,6
6480100
GDRL 100 FS
3000
100
0,6
6480101
GDRL 150 FS
3000
150
0,6
6480102
GDRL 200 FS
3000
200
0,6
6480103
GDRL 300 FS
3000
300
0,6
6480104
GDRL 400 FS
3000
400
0,7
6480105
GDRL 500 FS
3000
500
0,7
6480106
Width
Plate thickness
GDRL 50 FS
Item no.
6480100
Length
3000
Width
50
Plate thickness
0,6
GDRL 100 FS
Item no.
6480101
Length
3000
Width
100
Plate thickness
0,6
GDRL 150 FS
Item no.
6480102
Length
3000
Width
150
Plate thickness
0,6
GDRL 200 FS
Item no.
6480103
Length
3000
Width
200
Plate thickness
0,6
GDRL 300 FS
Item no.
6480104
Length
3000
Width
300
Plate thickness
0,6
GDRL 400 FS
Item no.
6480105
Length
3000
Width
400
Plate thickness
0,7
GDRL 500 FS
Item no.
6480106
Length
3000
Width
500
Plate thickness
0,7
