Cover for Tee FS
Type DFT 100 FS
|Item no. 7128215
|EAN 4012196248599
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

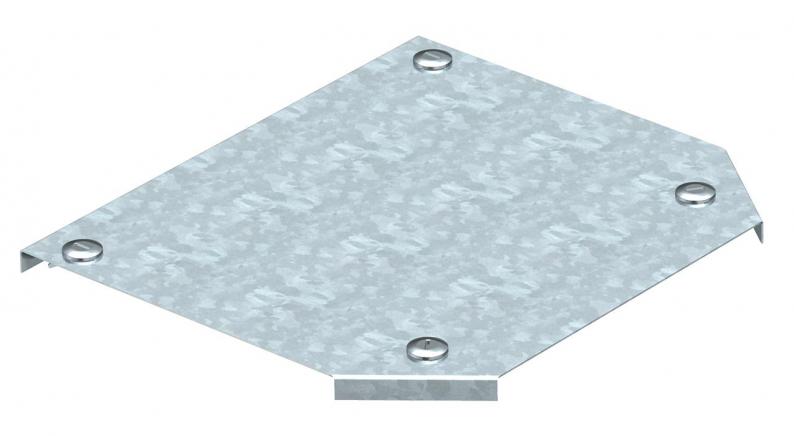

Cover for tee with pre-mounted turn buckle.
The cover can be used with fittings of all side heights.
Technical data

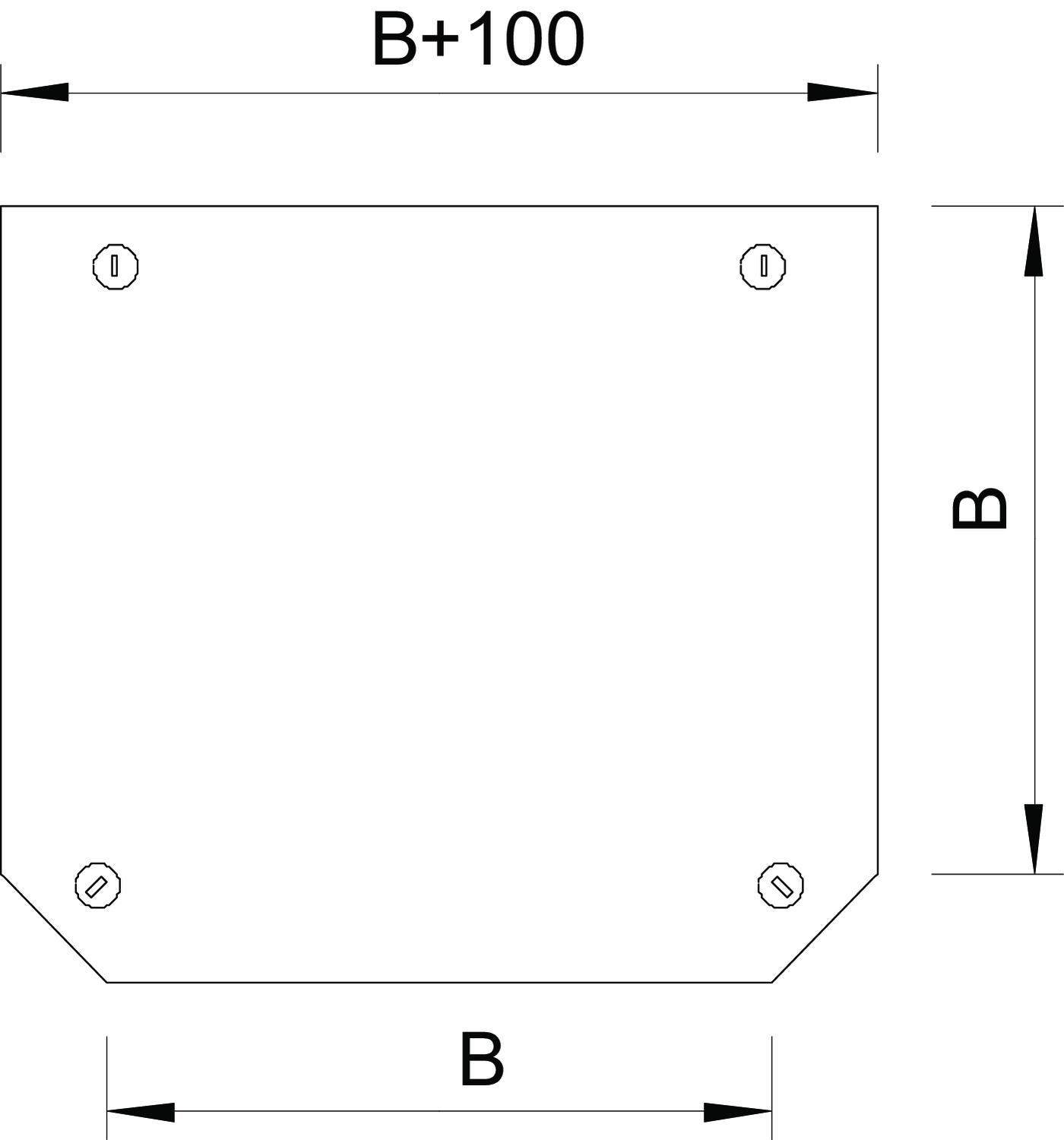

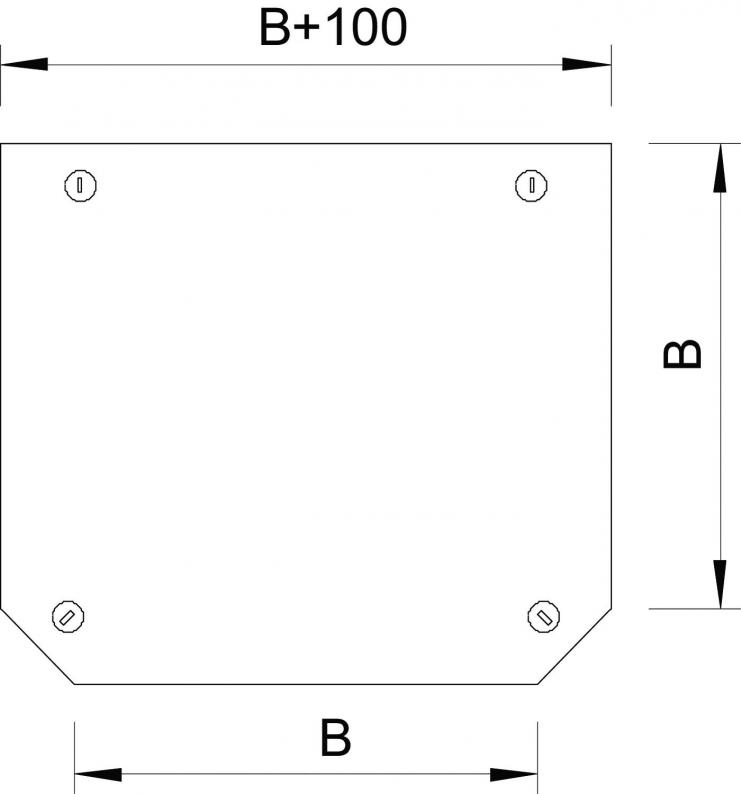

Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
| Dimension H | 15 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Number of turn buckles | 4 St. |
| Material thickness | 1 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFT 100 FS
100
1
7128215
DFT 150 FS
150
1
7128223
DFT 200 FS
200
1
7128231
DFT 300 FS
300
1
7128266
Width
DFT 100 FS
Item no.
7128215
Width
100
Plate thickness
1
DFT 150 FS
Item no.
7128223
Width
150
Plate thickness
1
DFT 200 FS
Item no.
7128231
Width
200
Plate thickness
1
DFT 300 FS
Item no.
7128266
Width
300
Plate thickness
1
