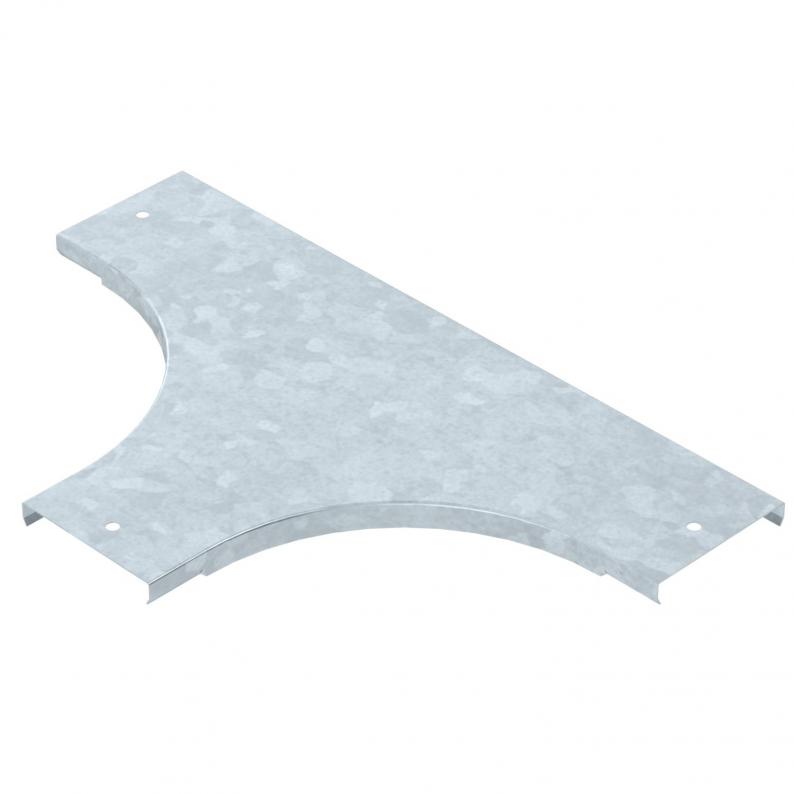

Cover for horizontal tee FT
Type GKSDT 100 FT
|Item no. 6483491
|EAN 4012195509516
Item no. / Type
Width
Plate thickness
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for horizontal tee for GKS... cable tray types with all side heights.
The cover can be used with fittings of all side heights.
Technical data

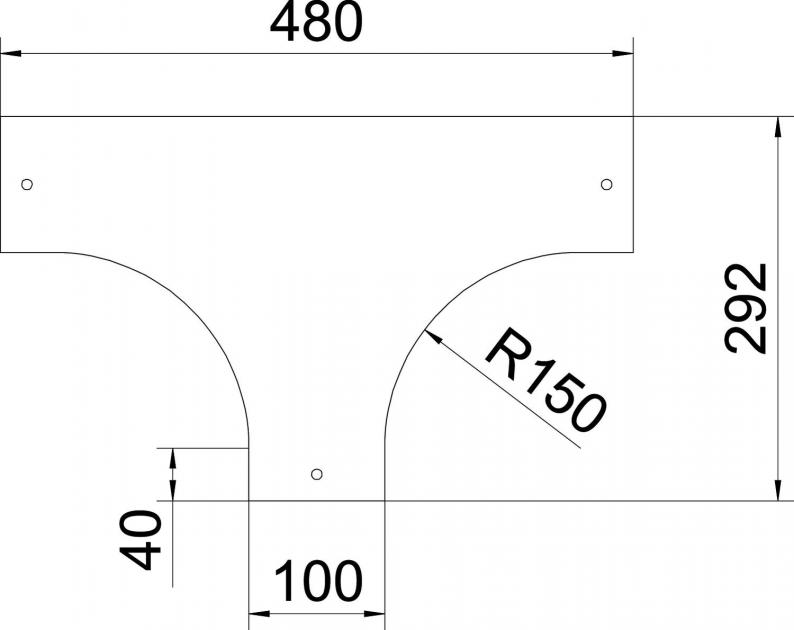

Dimensions
| Width | 100 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension d min. | 8 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Material thickness | 1 mm |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
GKSDT 100 FT
100
1
6483491
GKSDT 150 FT
150
1
6483492
GKSDT 200 FT
200
1
6483493
GKSDT 300 FT
300
1
6483494
GKSDT 400 FT
400
1
6483495
GKSDT 500 FT
500
1
6483496
Width
GKSDT 100 FT
Item no.
6483491
Width
100
Plate thickness
1
GKSDT 150 FT
Item no.
6483492
Width
150
Plate thickness
1
GKSDT 200 FT
Item no.
6483493
Width
200
Plate thickness
1
GKSDT 300 FT
Item no.
6483494
Width
300
Plate thickness
1
GKSDT 400 FT
Item no.
6483495
Width
400
Plate thickness
1
GKSDT 500 FT
Item no.
6483496
Width
500
Plate thickness
1
