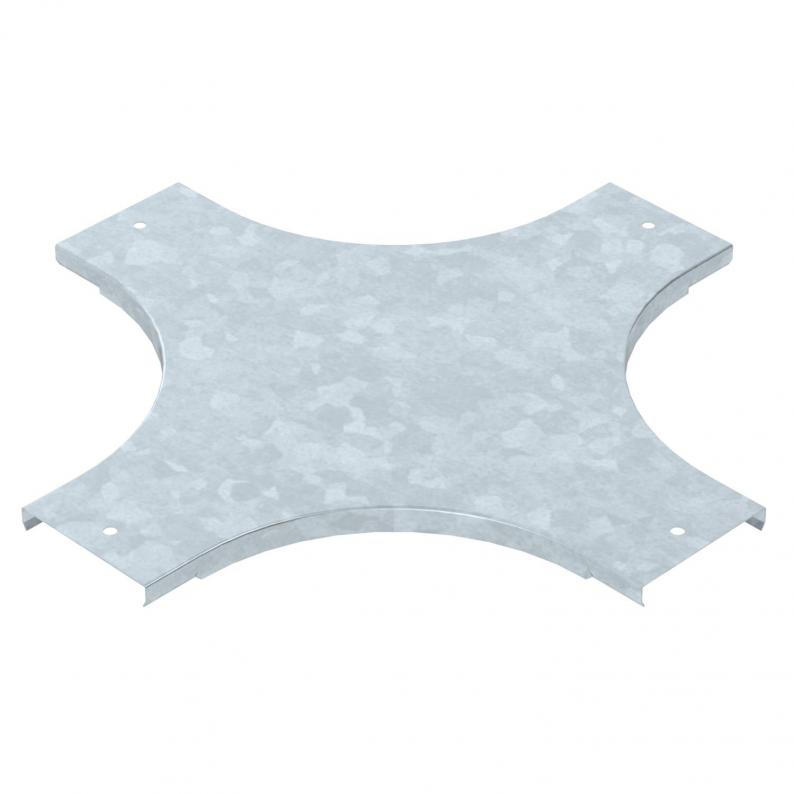

Cover for cross-over FT, horizontal
Type GKSDK 100 FT
|Item no. 6483531
|EAN 4012195509981
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for cross-over fitting for GKS... cable tray types with all side heights.
The cover can be used with fittings of all side heights.
Technical data

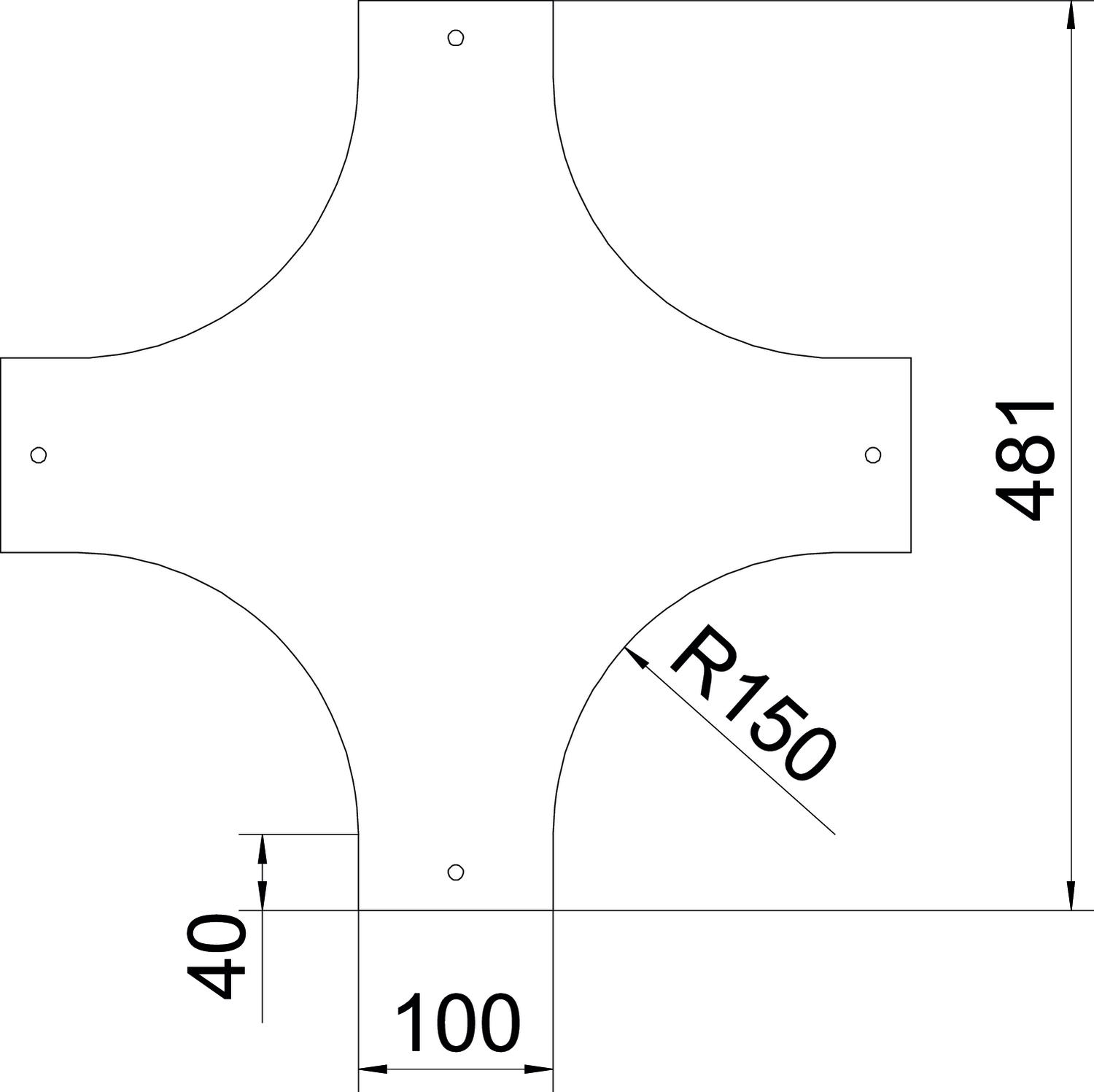

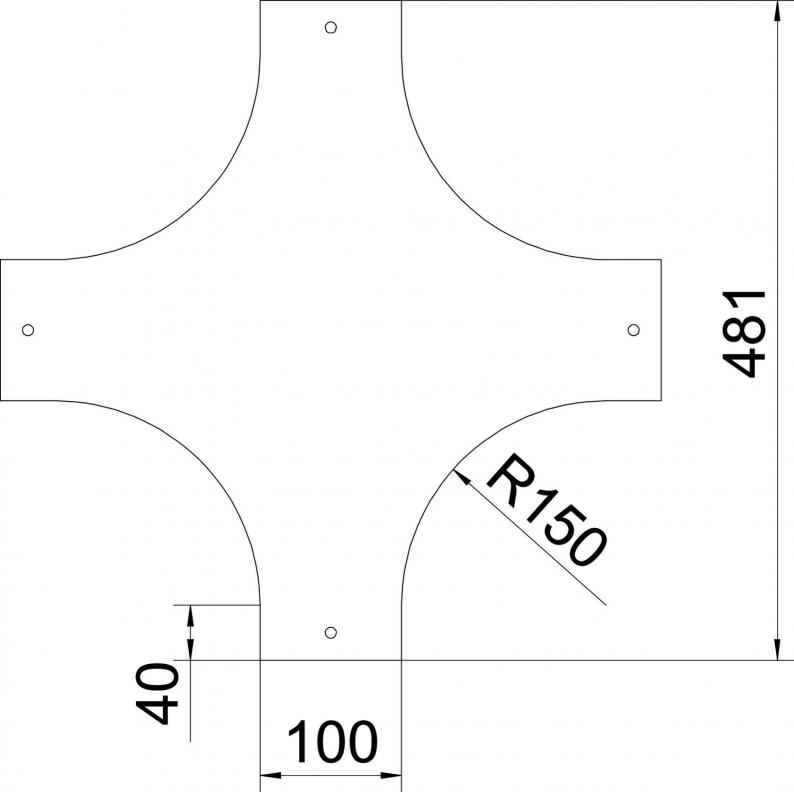

Dimensions
| Width | 100 mm |
|---|---|
| Dimension A | 480 mm |
| Dimension B | 100 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Item no.
GKSDK 100 FT
100
6483531
GKSDK 150 FT
150
6483532
GKSDK 200 FT
200
6483533
GKSDK 300 FT
300
6483534
GKSDK 400 FT
400
6483535
GKSDK 500 FT
500
6483536
