Cover for cross-over FS, horizontal
Type GKSDK 150 FS
Item no. 6480532
EAN 4012195489313
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for cross-over fitting for GKS... cable tray types with all side heights.
The cover can be used with fittings of all side heights.
Technical data

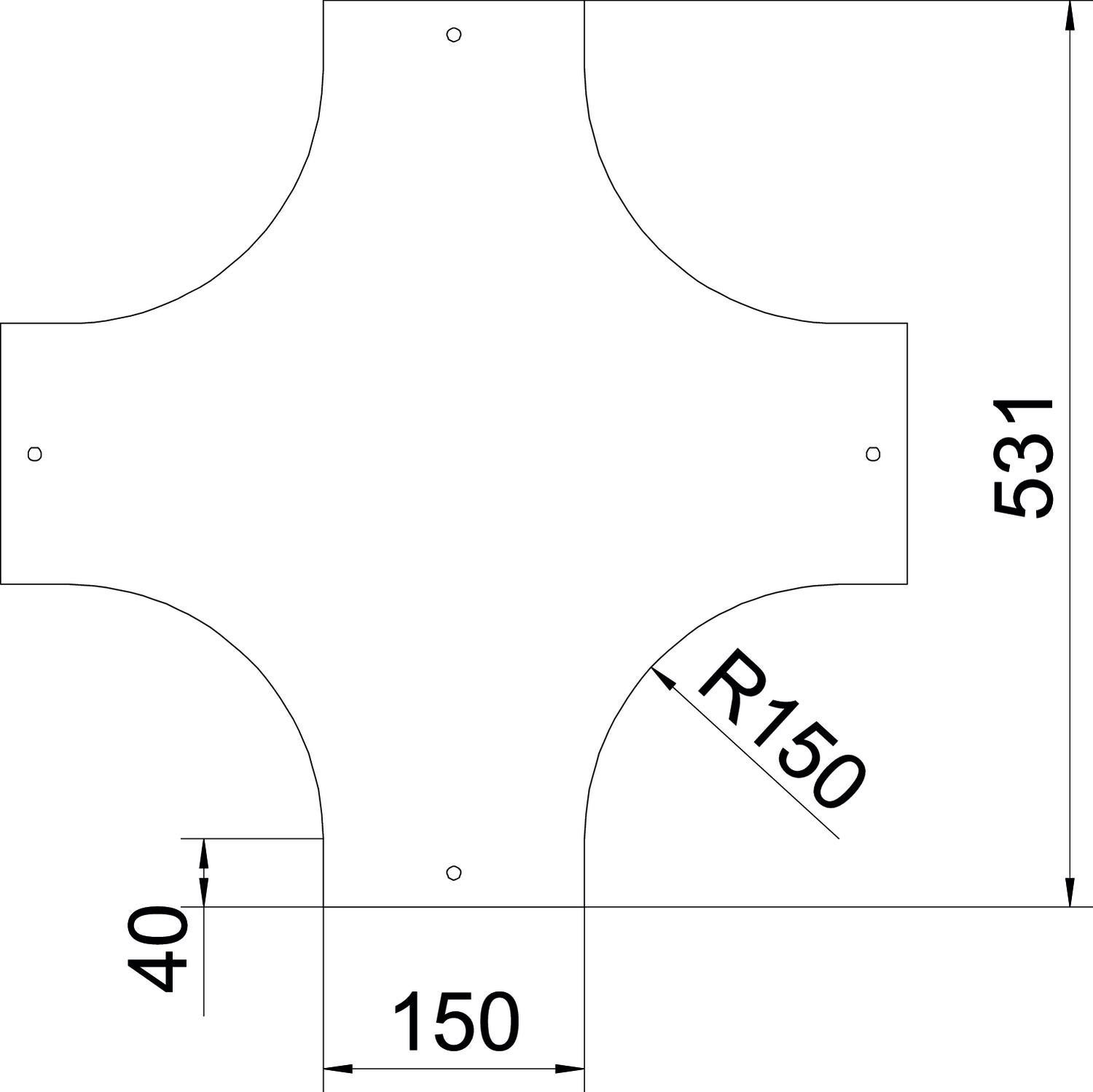

Dimensions
| Width | 150 mm |
|---|---|
| Dimension A | 530 mm |
| Dimension B | 150 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening type | Locking |
| ROHS-conformant | yes |
| Dimension | B150mm |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (3)
Tender specifications (1)
Variants
Type
Width
Item no.
GKSDK 100 FS
100
6480531
GKSDK 150 FS
150
6480532
GKSDK 200 FS
200
6480533
GKSDK 300 FS
300
6480534
GKSDK 400 FS
400
6480535
GKSDK 500 FS
500
6480536
