Cover for add-on tee A2
Type DFAA 100 A2
|Item no. 7136900
|EAN 4012196257058
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for add-on tee with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

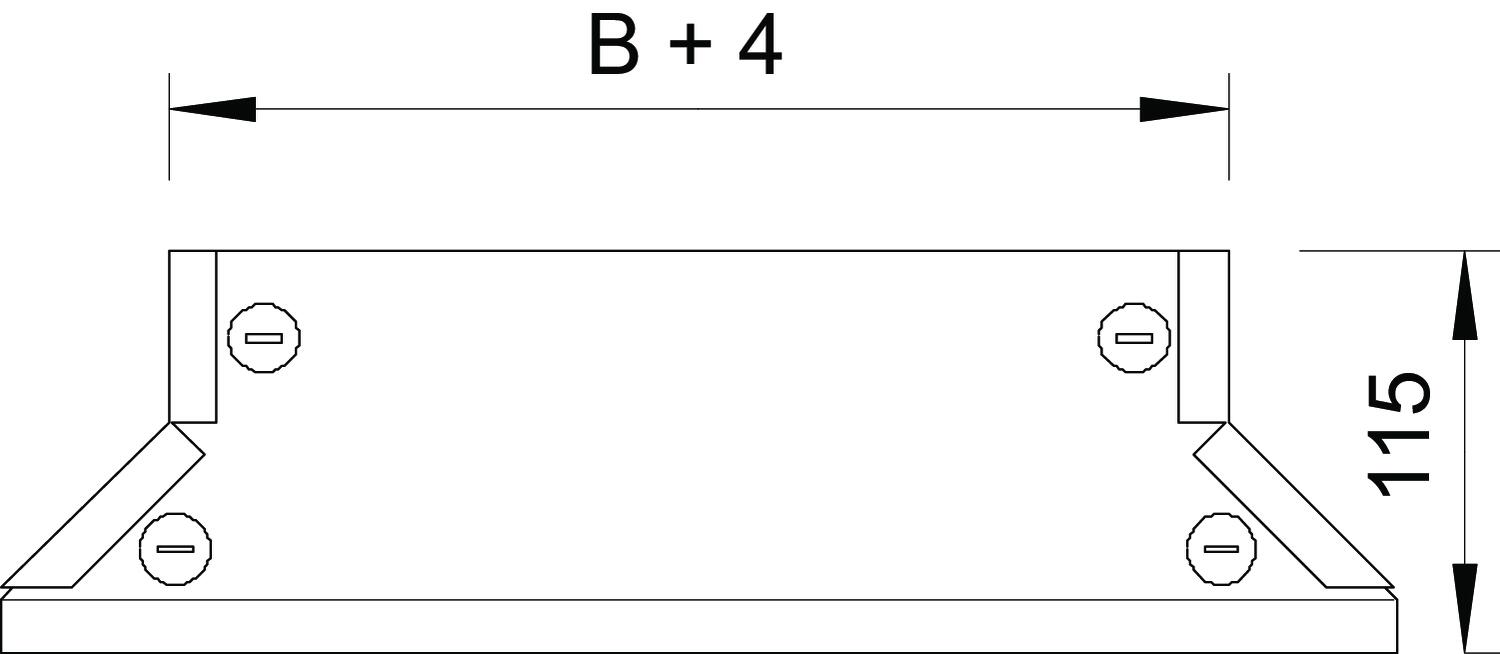

Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
| Dimension H | 15 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Number of turn buckles | 4 St. |
| Material thickness | 1 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| ROHS-conformant | yes |
| Dimension | B100mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Plate thickness
Item no.
DFAA 100 A2
100
1
7136900
DFAA 200 A2
200
1
7136919
DFAA 300 A2
300
1
7136927
Width
DFAA 100 A2
Item no.
7136900
Width
100
Plate thickness
1
DFAA 200 A2
Item no.
7136919
Width
200
Plate thickness
1
DFAA 300 A2
Item no.
7136927
Width
300
Plate thickness
1
