Cover for add-on tee 400-600 FS
Type DFAA 400 FS
|Item no. 7128487
|EAN 4012196249190
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

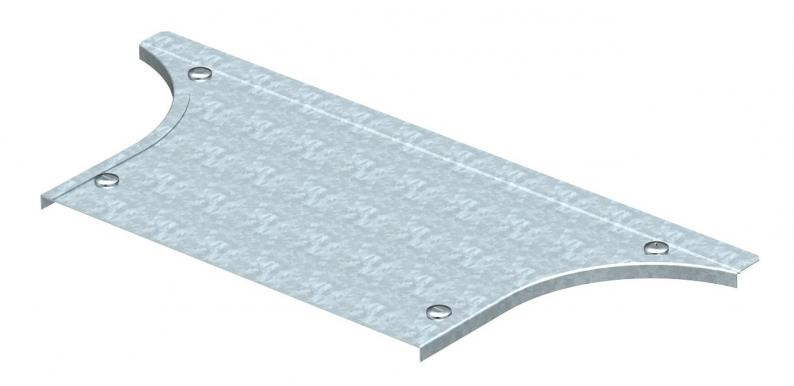

Cover for add-on tee with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

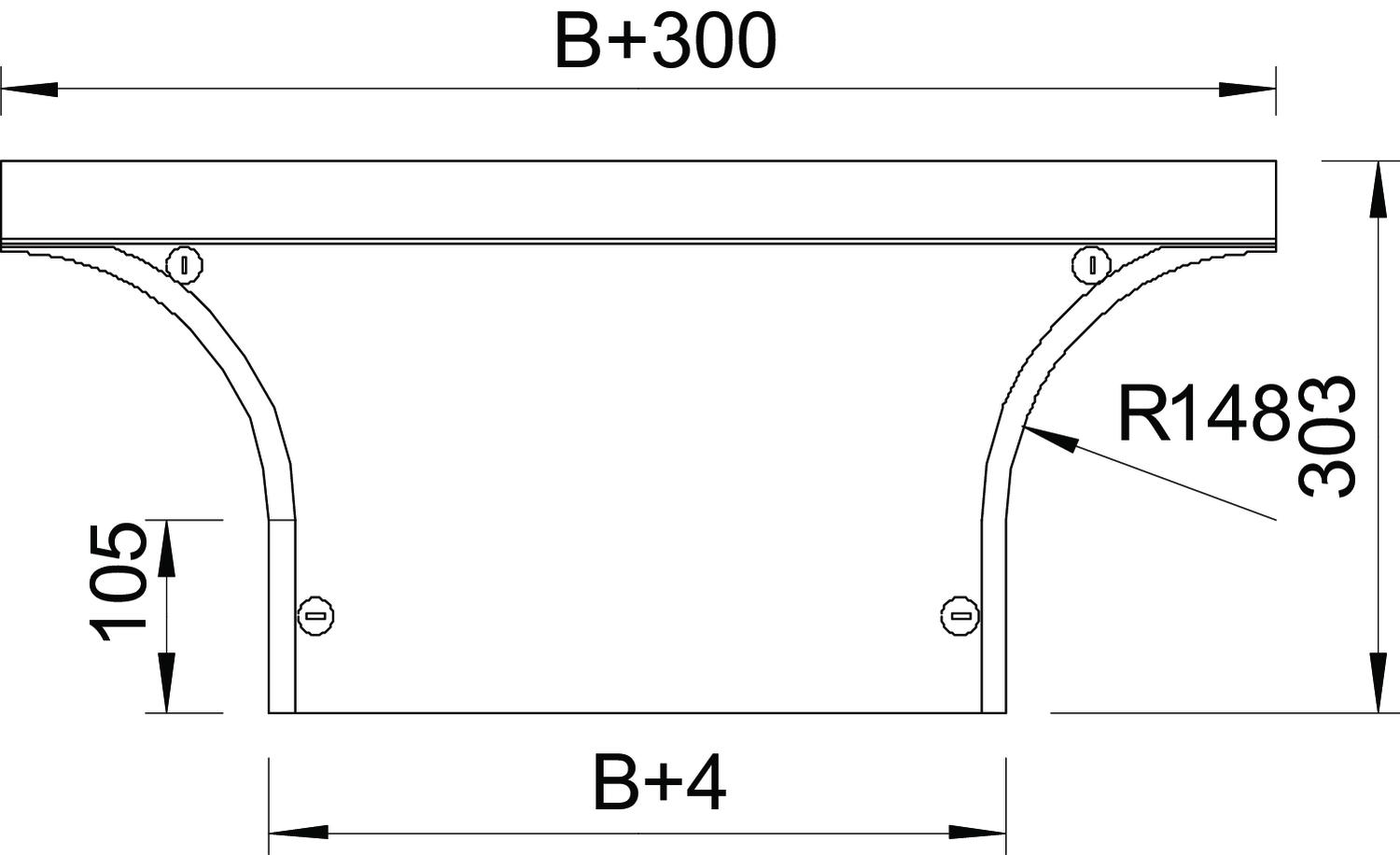

Dimensions
| Width | 400 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 400 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Number of turn buckles | 4 St. |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B400mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFAA 400 FS
400
1,25
7128487
DFAA 500 FS
500
1,25
7128509
DFAA 600 FS
600
1,25
7128525
Width
DFAA 400 FS
Item no.
7128487
Width
400
Plate thickness
1,25
DFAA 500 FS
Item no.
7128509
Width
500
Plate thickness
1,25
DFAA 600 FS
Item no.
7128525
Width
600
Plate thickness
1,25
