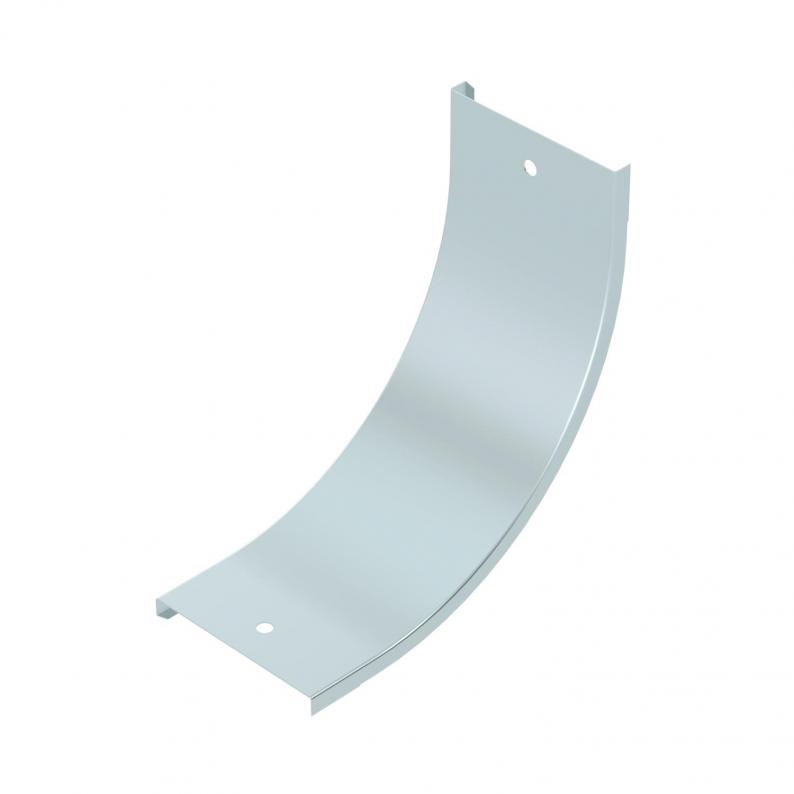

Cover for 90° vertical bend, rising, FS
Type GKSDBV 90100S FS
|Item no. 6480231
|EAN 4012195487432
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for 90° vertical bend (rising) fitting for GKS... cable tray types
Technical data

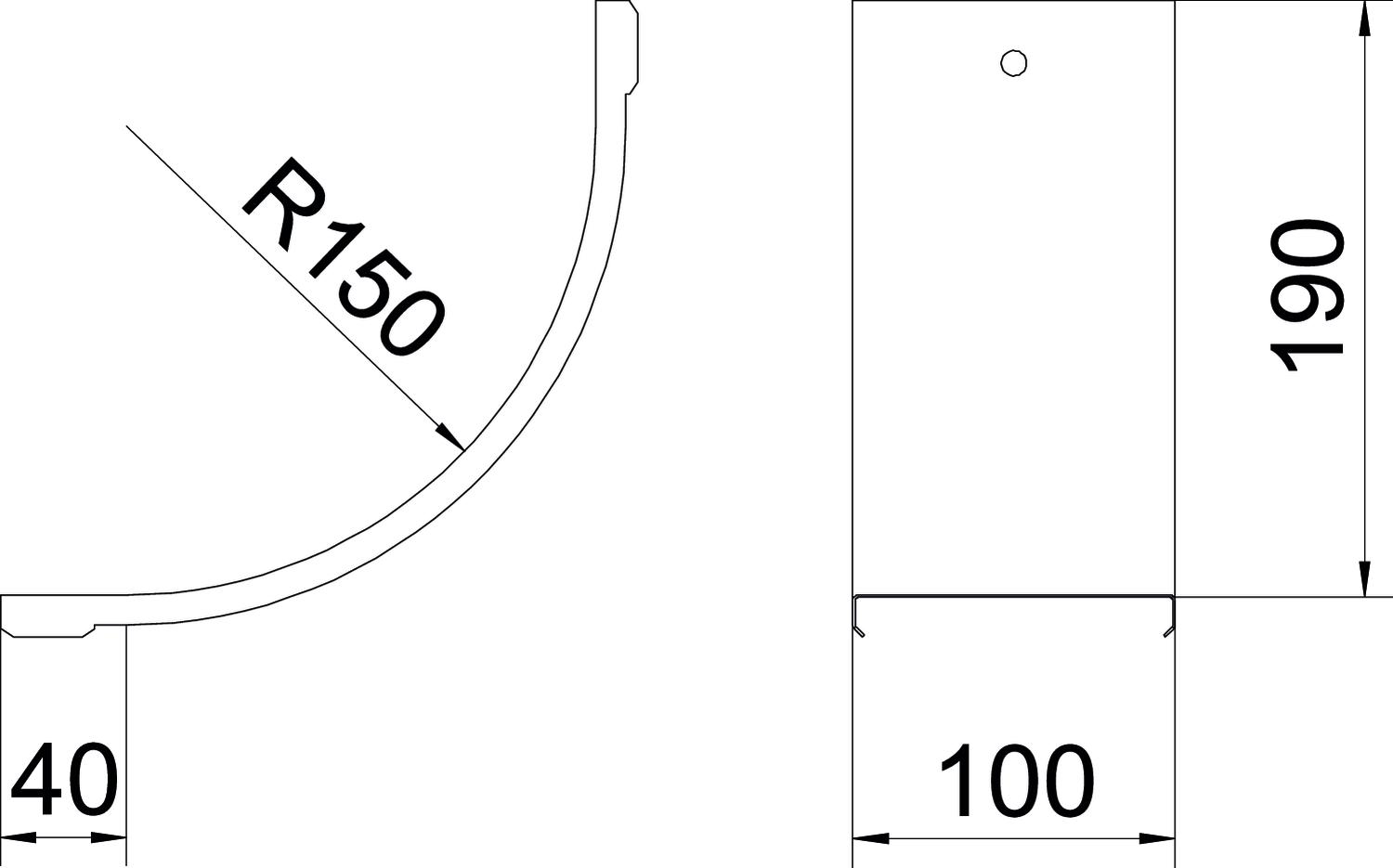

Dimensions
| Width | 100 mm |
|---|---|
| Height | 190 mm |
| Dimension A | 190 mm |
| Dimension B | 100 mm |
| Dimension D | 8 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Vertical rising |
| Fastening type | Cover clamp |
| Dimension | B100mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
GKSDBV 90100S FS
100
6480231
GKSDBV 90150S FS
150
6480232
GKSDBV 90200S FS
200
6480233
GKSDBV 90300S FS
300
6480234
GKSDBV 90400S FS
400
6480235
GKSDBV 90500S FS
500
6480236
