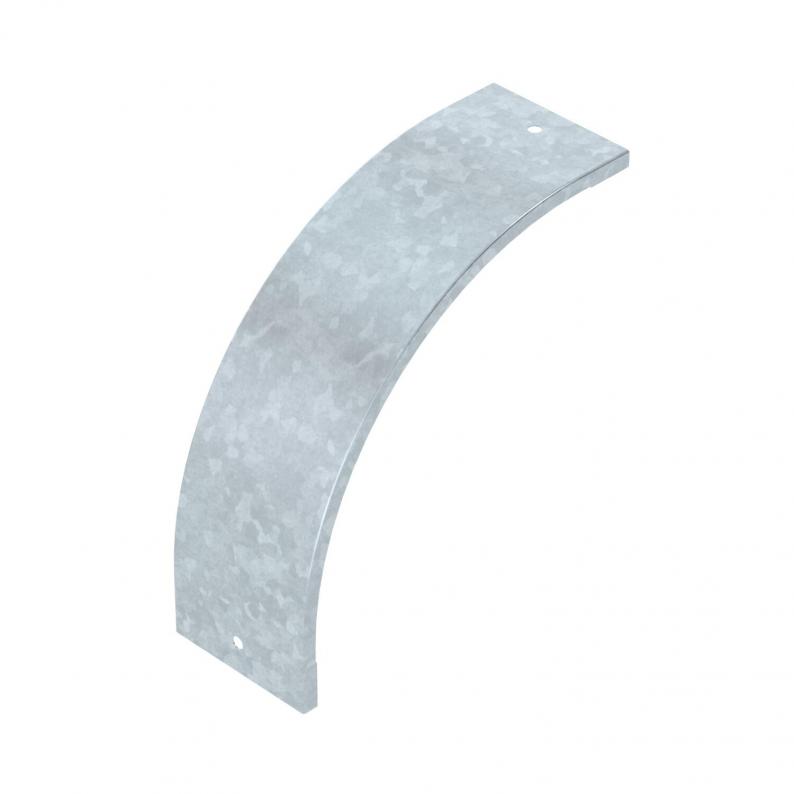

Cover for 90° vertical bend, falling, FT
Type GKSDBV 90100F FT
|Item no. 6483311
|EAN 4012195508076
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for 90° vertical bend (falling) fitting with 60 mm side height for GKS... cable tray types
Technical data

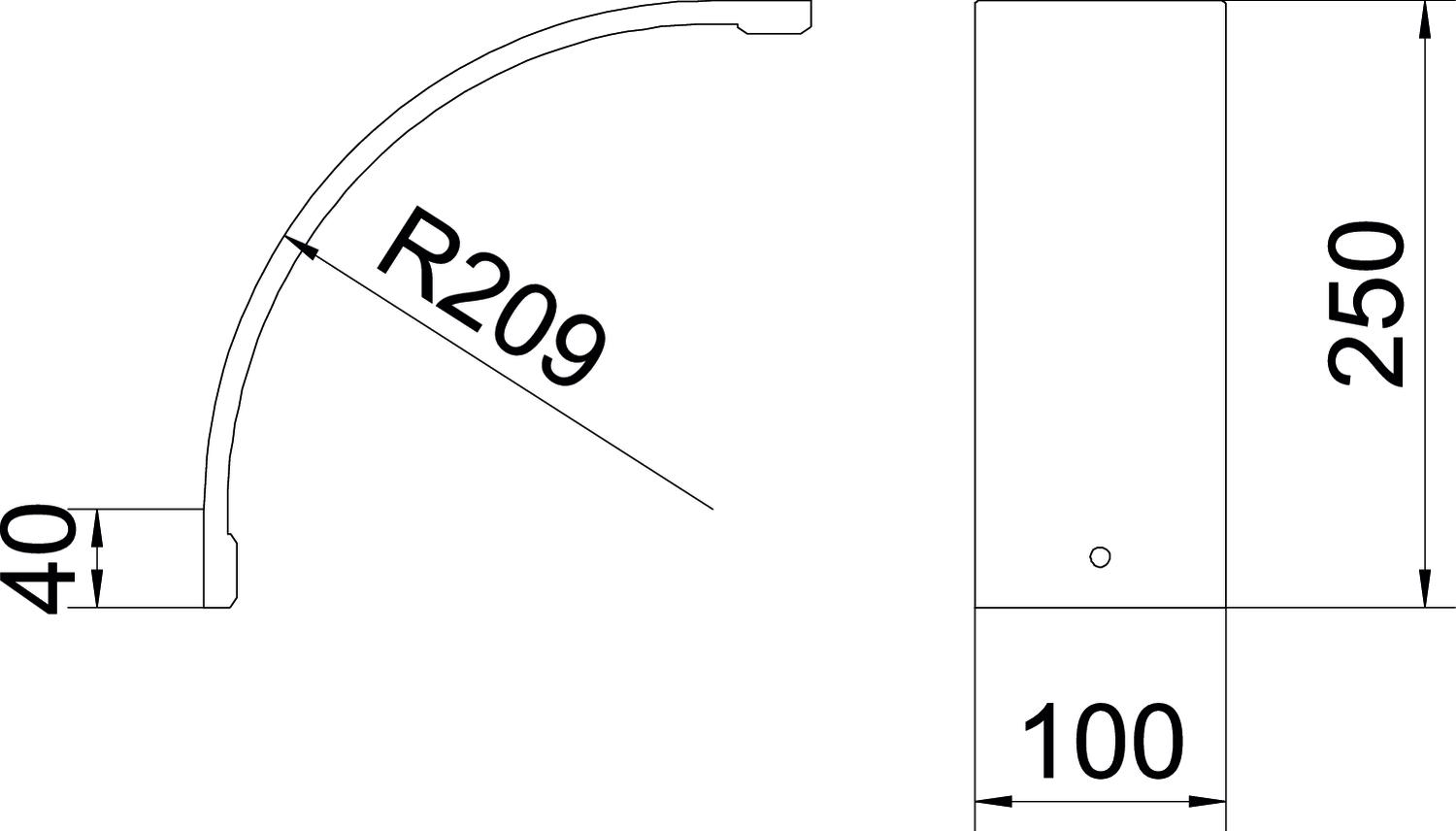

Dimensions
| Width | 100 mm |
|---|---|
| Dimension A | 250 mm |
| Dimension B | 100 mm |
| Dimension R | 209 mm |
| Dimension D | 8 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Fastening type | Sash lock |
| Dimension | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Item no.
GKSDBV 90100F FT
100
6483311
GKSDBV 90150F FT
150
6483312
GKSDBV 90200F FT
200
6483313
GKSDBV 90300F FT
300
6483314
GKSDBV 90400F FT
400
6483315
GKSDBV 90500F FT
500
6483316
