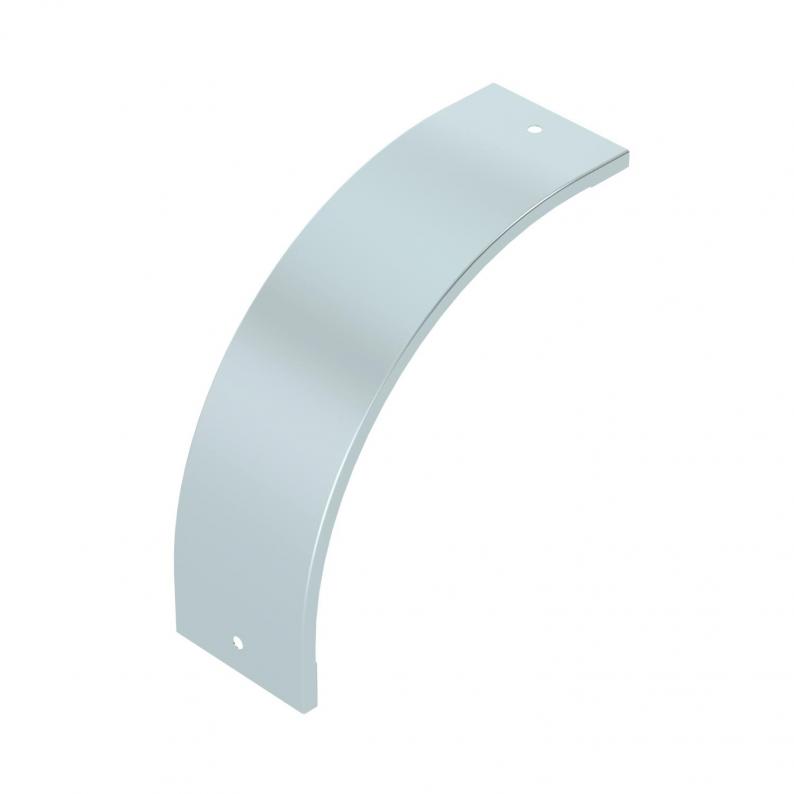

Cover for 90° vertical bend, falling, FS
Type GKSDBV 90100F FS
|Item no. 6480311
|EAN 4012195487937
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for 90° vertical bend (falling) fitting with 60 mm side height for GKS... cable tray types
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Dimension A | 250 mm |
| Dimension B | 100 mm |
| Dimension R | 209 mm |
| Dimension D | 8 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Vertical rising |
| Fastening type | Cover clamp |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Item no.
GKSDBV 90100F FS
100
6480311
GKSDBV 90150F FS
150
6480312
GKSDBV 90200F FS
200
6480313

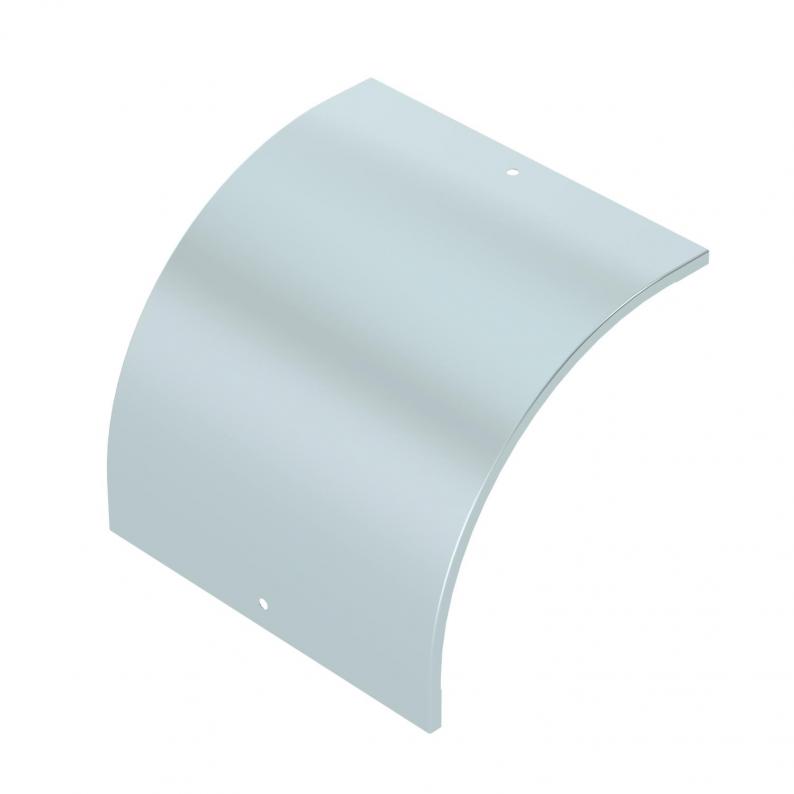

GKSDBV 90300F FS
300
6480314
GKSDBV 90400F FS
400
6480315
GKSDBV 90500F FS
500
6480316
