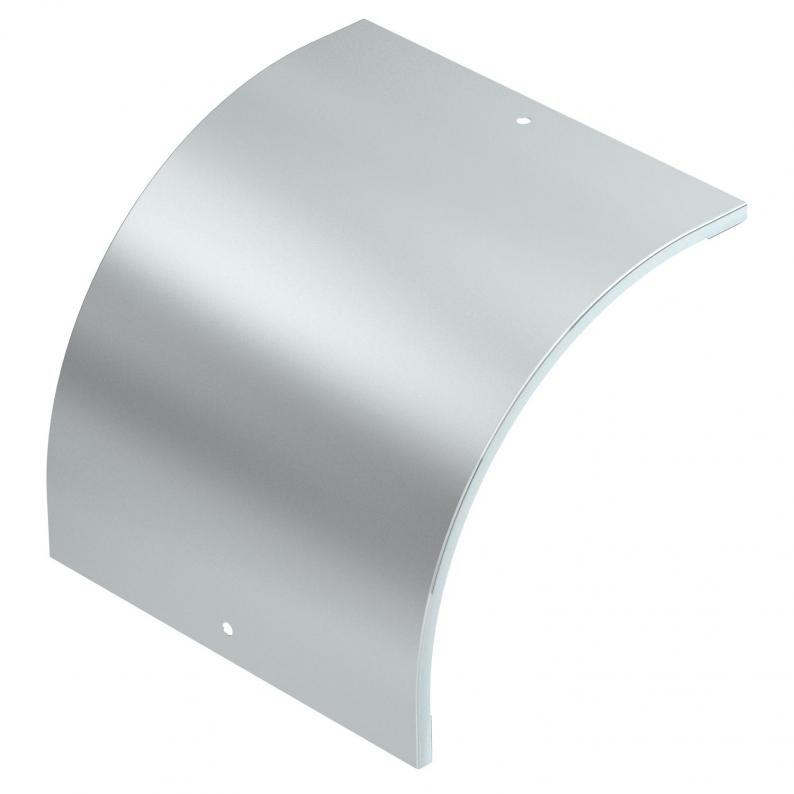

Cover for 90° vertical bend 100, falling, FS
Type GKSDBV 90150F FS
|Item no. 6480332
|EAN 4012195488057
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for 90° vertical bend (falling) fitting with 100 mm side height for GKS... cable tray types
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Dimension A | 290 mm |
| Dimension B | 150 mm |
| Dimension R | 250 mm |
| Dimension D | 8 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Vertical rising |
| Fastening type | Cover clamp |
| Dimension | 100x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
GKSDBV 90150F FS
150
6480332
GKSDBV 90200F FS
200
6480333
GKSDBV 90300F FS
300
6480334
GKSDBV 90400F FS
400
6480335
GKSDBV 90500F FS
500
6480336
