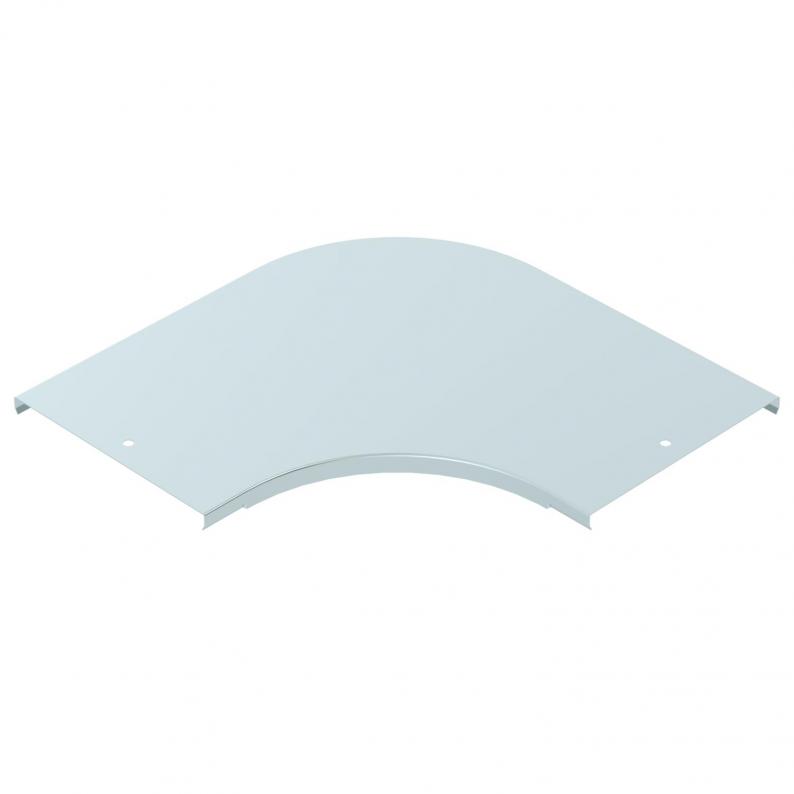

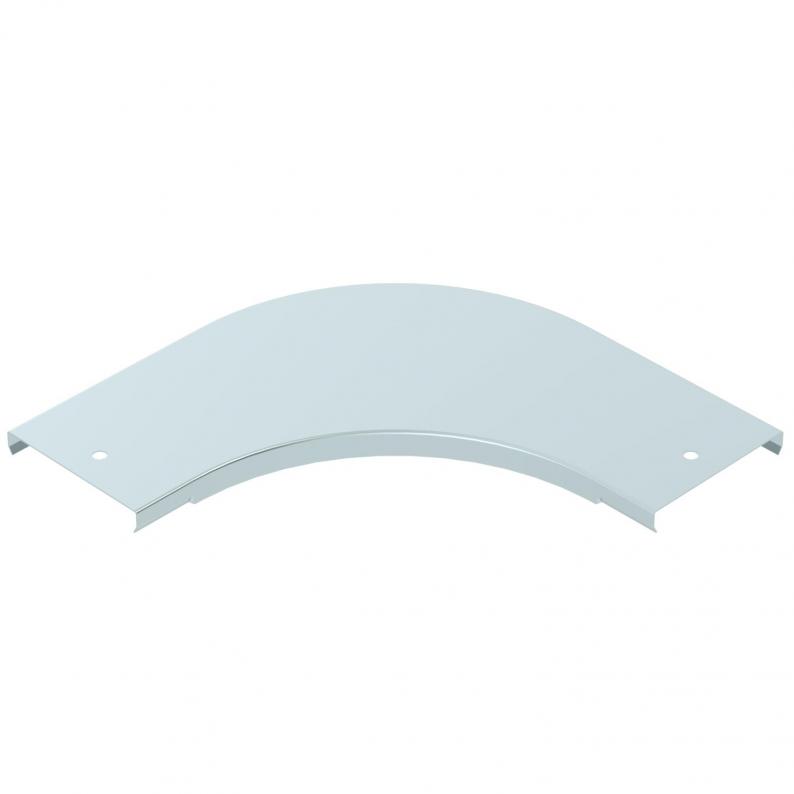

Cover for 90° bend, horizontal FS
Type GKSDB 90 100 FS
|Item no. 6480151
|EAN 4012195486893
Item no. / Type
Width
Plate thickness
Smallest selling unit: 1 piece
1piece
piece
Description
Lock-on cover for the 90° bend.
The cover can be used with fittings of all side heights.
Technical data

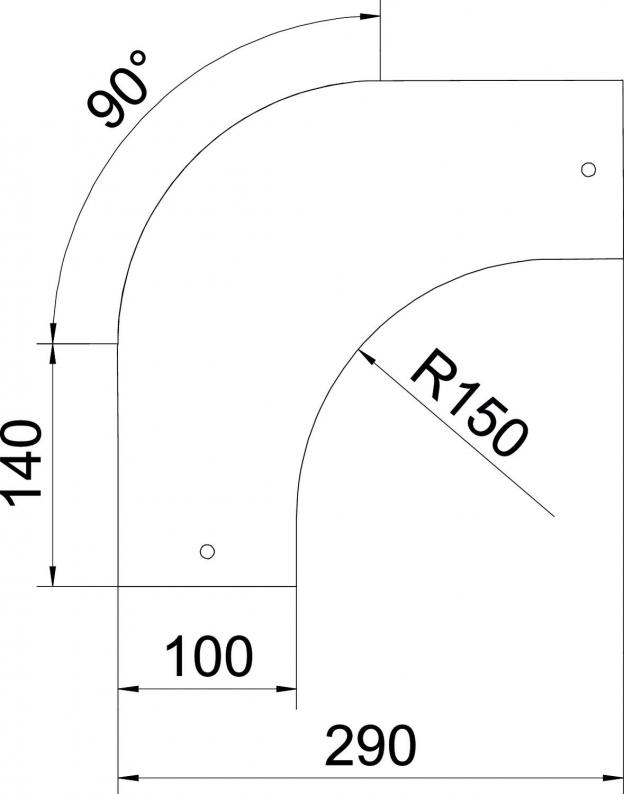

Dimensions
| Width | 100 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension D | 8 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
GKSDB 90 100 FS
100
1
6480151
GKSDB 90 150 FS
150
1
6480152
GKSDB 90 200 FS
200
1
6480153
GKSDB 90 300 FS
300
1
6480154
GKSDB 90 400 FS
400
1
6480155
GKSDB 90 500 FS
500
1
6480156
