Cover for 90° bend FS
Type DFB 90 400 FS
|Item no. 7129688
|EAN 4012196250936
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

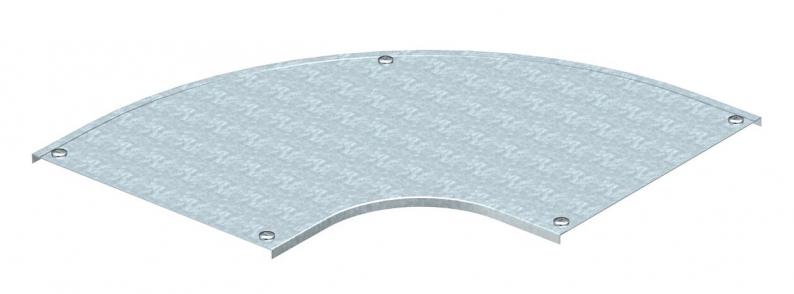

Cover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

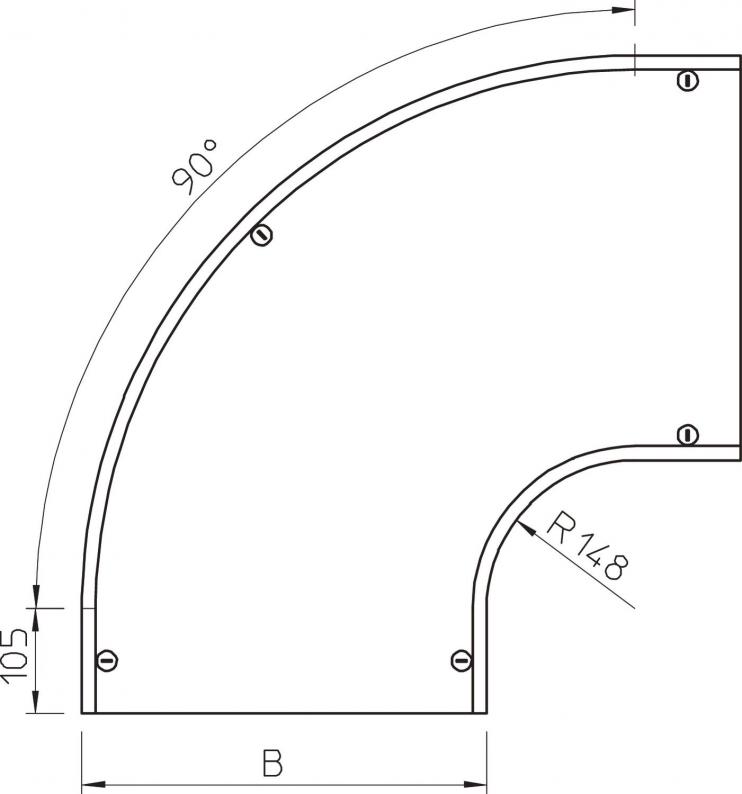

Dimensions
| Width | 400 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 400 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Number of turn buckles | 5 St. |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B400mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFB 90 400 FS
400
1,25
7129688
DFB 90 500 FS
500
1,25
7129718
DFB 90 600 FS
600
1,25
7129734
Width
DFB 90 400 FS
Item no.
7129688
Width
400
Plate thickness
1,25
DFB 90 500 FS
Item no.
7129718
Width
500
Plate thickness
1,25
DFB 90 600 FS
Item no.
7129734
Width
600
Plate thickness
1,25
