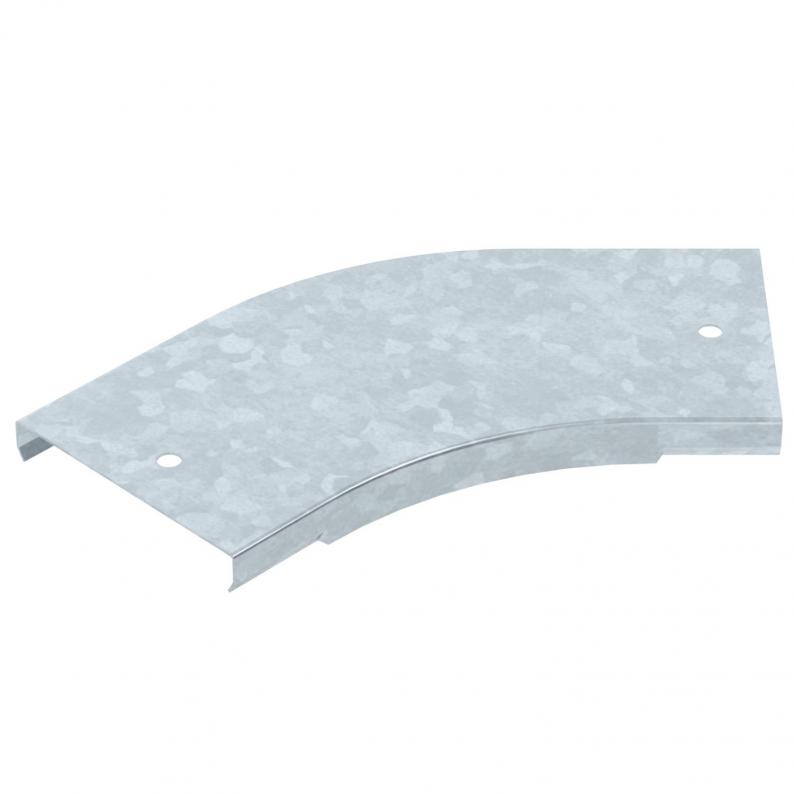

Cover for 45° bend, horizontal FT

Cover for 45° bend, horizontal FT

Type GKSDB 45 100 FT
|
Item no. 6483191
|
EAN 4012195507352
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Lock-on cover for the 45° bend.


The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm

Technical data

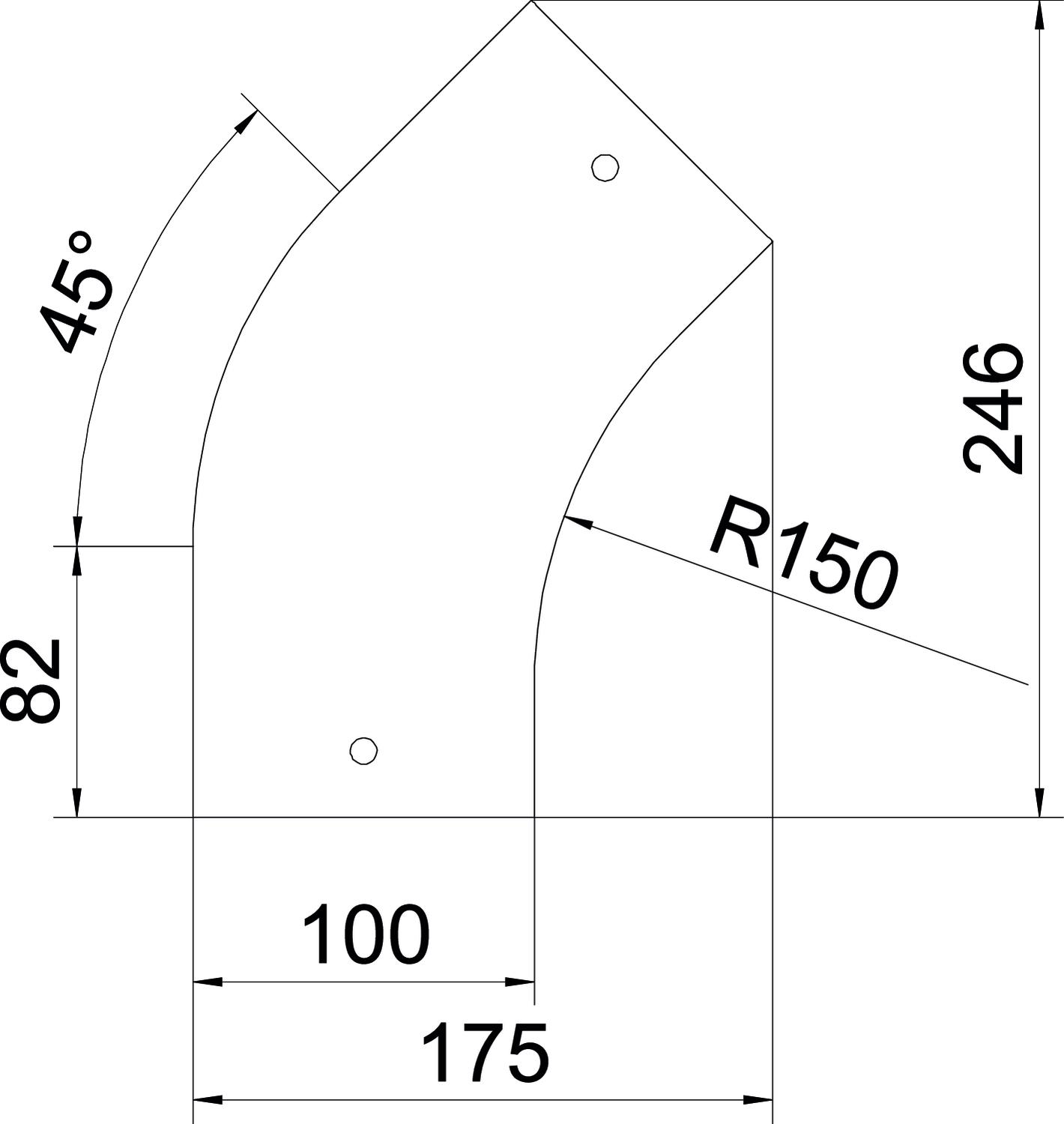

Dimensions

Width100 mm
Dimension B100 mm
Dimension D8 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Bend (angle)45°
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hingedno
Change of directionHorizontal
Fastening typeLocking
DimensionB100mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSDB 45 100 FT
Item no.
6483191
Width
100
GKSDB 45 150 FT
Item no.
6483192
Width
150
GKSDB 45 200 FT
Item no.
6483193
Width
200
GKSDB 45 300 FT
Item no.
6483194
Width
300
GKSDB 45 400 FT
Item no.
6483195
Width
400
GKSDB 45 500 FT
Item no.
6483196
Width
500
