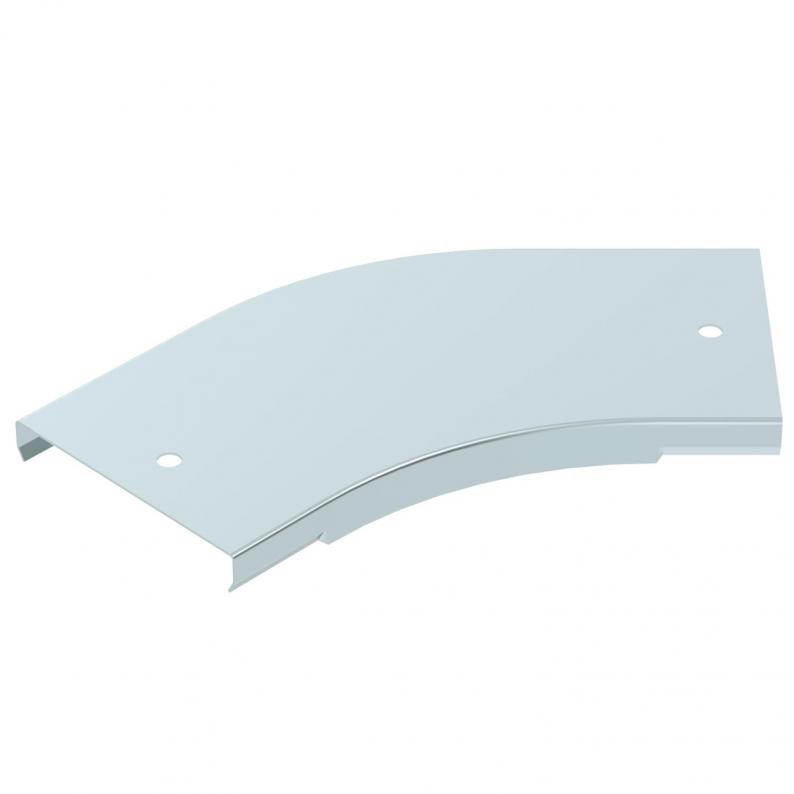

Cover for 45° bend, horizontal FS

Cover for 45° bend, horizontal FS

Type GKSDB 45 100 FS
|
Item no. 6480191
|
EAN 4012195487197
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Lock-on cover for the 45° bend.


The cover can be used with fittings of all side heights.

Technical data

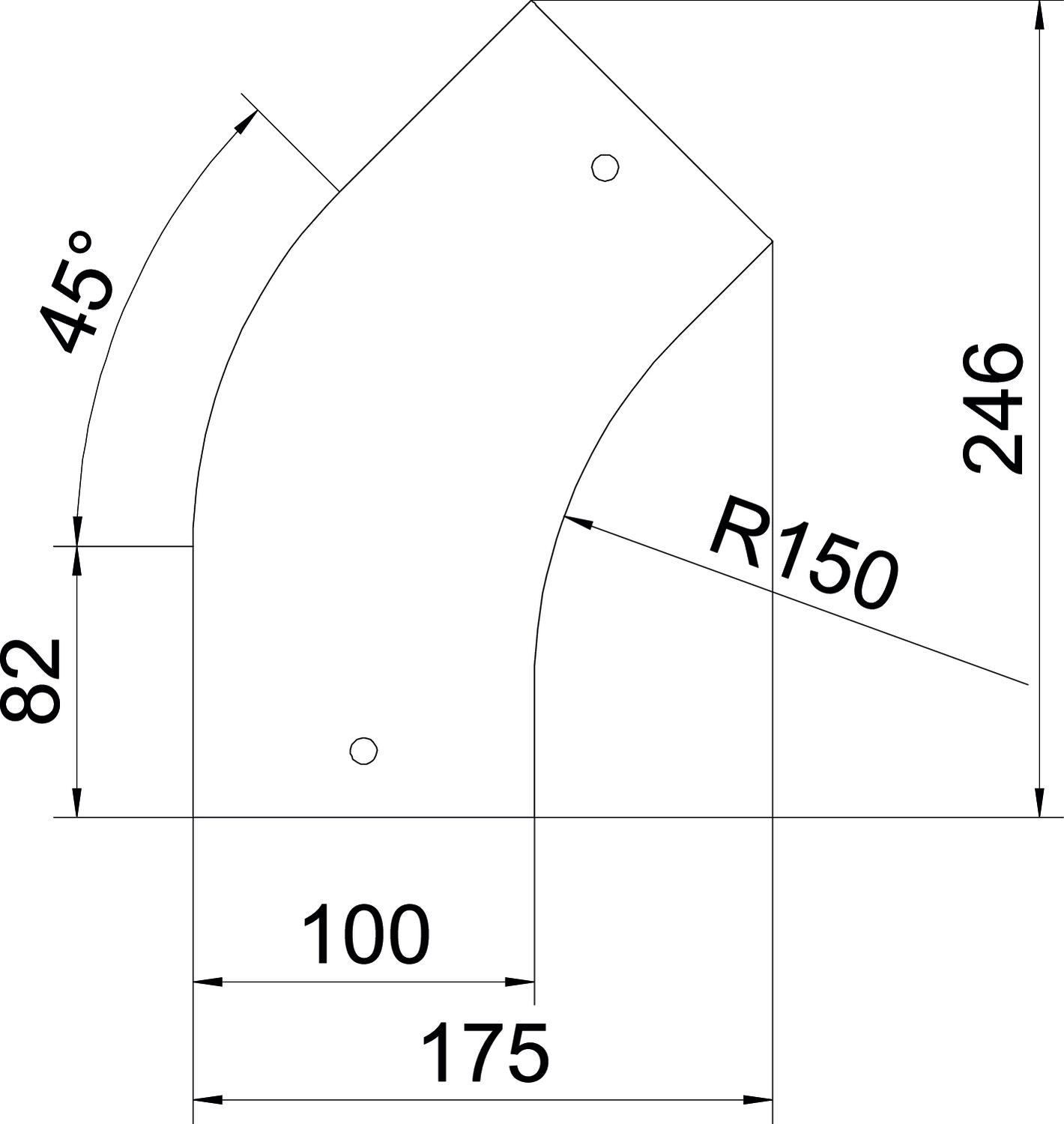

Dimensions

Width100 mm
Dimension B100 mm
Dimension D8 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Bend (angle)45°
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Hingedno
Change of directionHorizontal
Fastening typeLocking
DimensionB100mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSDB 45 100 FS
Item no.
6480191
Width
100
GKSDB 45 150 FS
Item no.
6480192
Width
150
GKSDB 45 200 FS
Item no.
6480193
Width
200
GKSDB 45 300 FS
Item no.
6480194
Width
300
GKSDB 45 400 FS
Item no.
6480195
Width
400
GKSDB 45 500 FS
Item no.
6480196
Width
500
