Cover DD
Type GDRL 100 DD
|Item no. 6480086
|EAN 4012197531775
Item no. / Type
Length
Width
Plate thickness
Smallest selling unit: 3 m
3m
m
Description

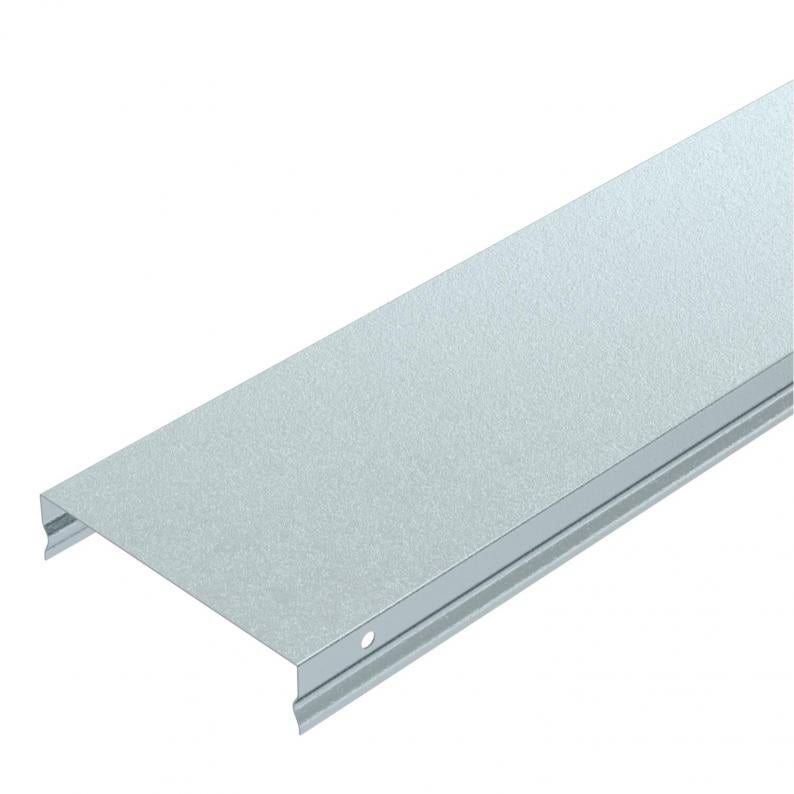

Unperforated cover for cable trays, for direct snapping-on.
When using covers outdoors, additional measures against the influence of wind must be taken.
When using covers outdoors, additional measures against the influence of wind must be taken.
Technical data

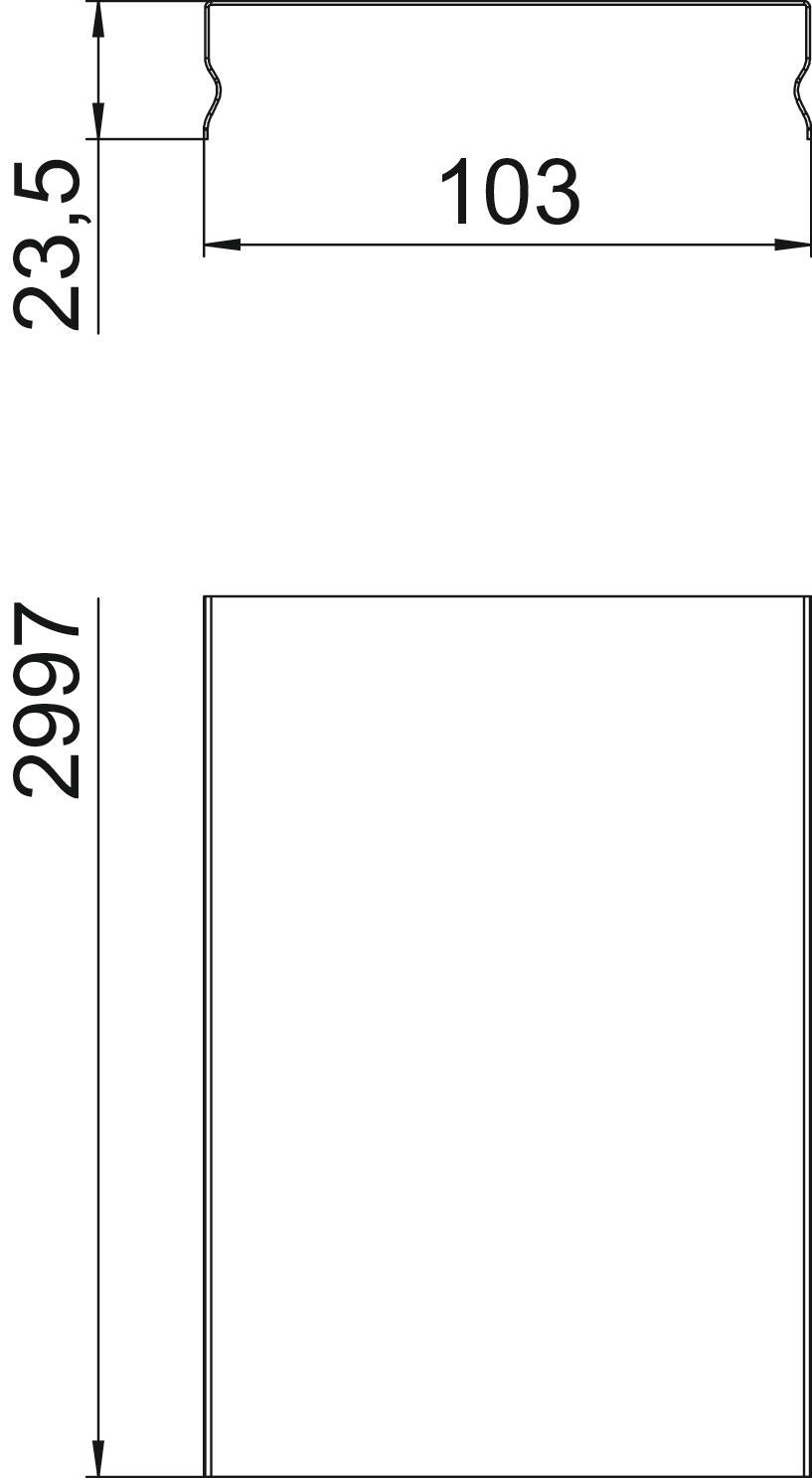

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 24 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 0,6 mm |
| Number of turn buckles | 0 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening type | Locking |
| ROHS-conformant | yes |
| Dimension | 100x3000 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Product images (2)
Tender specifications (1)
Variants
Type
Length
Width
Plate thickness
Item no.
GDRL 50 DD
3000
50
0,6
6480085
GDRL 100 DD
3000
100
0,6
6480086
GDRL 150 DD
3000
150
0,6
6480087
GDRL 200 DD
3000
200
0,6
6480088
GDRL 300 DD
3000
300
0,6
6480090
GDRL 400 DD
3000
400
0,7
6480092
GDRL 500 DD
3000
500
0,7
6480094
Width
Plate thickness
GDRL 50 DD
Item no.
6480085
Length
3000
Width
50
Plate thickness
0,6
GDRL 100 DD
Item no.
6480086
Length
3000
Width
100
Plate thickness
0,6
GDRL 150 DD
Item no.
6480087
Length
3000
Width
150
Plate thickness
0,6
GDRL 200 DD
Item no.
6480088
Length
3000
Width
200
Plate thickness
0,6
GDRL 300 DD
Item no.
6480090
Length
3000
Width
300
Plate thickness
0,6
GDRL 400 DD
Item no.
6480092
Length
3000
Width
400
Plate thickness
0,7
GDRL 500 DD
Item no.
6480094
Length
3000
Width
500
Plate thickness
0,7
