Corner connector FS
Type REV 85 FS
|Item no. 6067980
|EAN 4012196066377
Item no. / Type
6067980 / REV 85 FS
Smallest selling unit: 10 piece
10piece
piece
Description

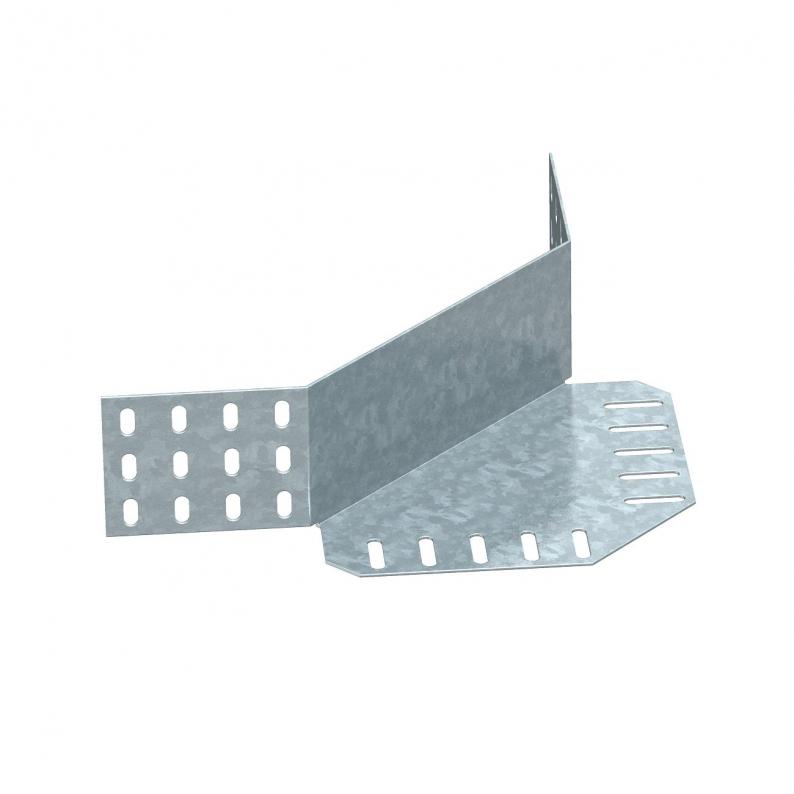

Corner connector for cable trays with side height 85 mm.
Fastening materials should be ordered separately.
Technical data
Dimensions
| Length | 240 mm |
|---|---|
| Width | 400 mm |
| Height | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 240 x 130 |
| Suitable for cable tray system height | 85 mm |
| Version for | Corner connector |
| Connection type | Screw connector |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
2,237 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,237 kg CO2e / 1 Piece |
|---|
