Corner connector 110 FS
Type REV 110 FS
|Item no. 6067999
|EAN 4012196066438
Item no. / Type
6067999 / REV 110 FS
Smallest selling unit: 10 piece
10piece
piece
Description

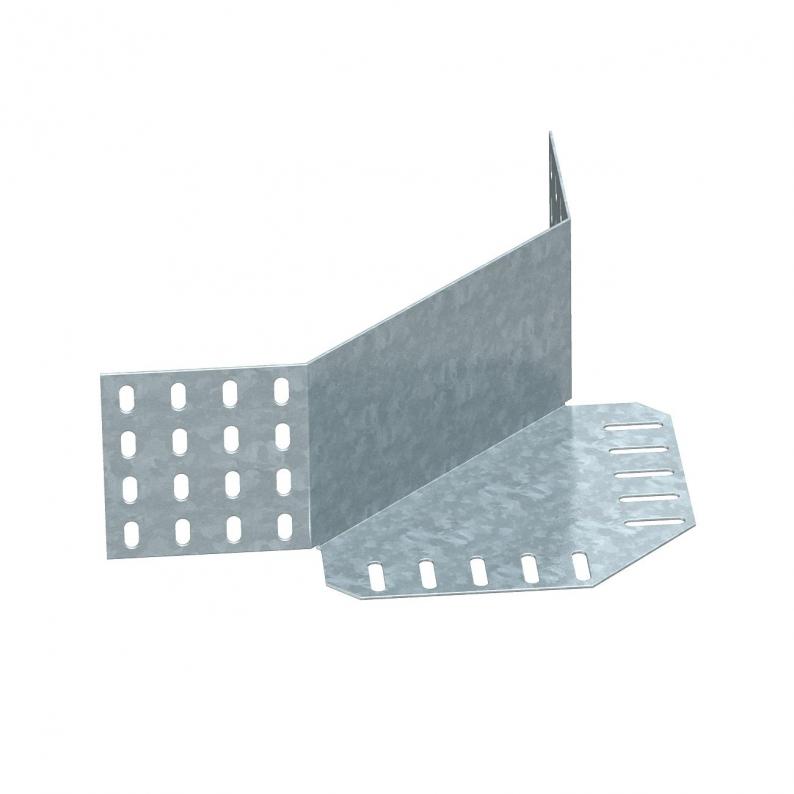

Corner connector for cable trays with side height 110 mm.
Fastening materials should be ordered separately.
Technical data
Dimensions
| Length | 240 mm |
|---|---|
| Width | 400 mm |
| Height | 105 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 240 x 130 |
| Suitable for cable tray system height | 110 mm |
| Version for | Corner connector |
| Connection type | Screw connector |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
2,2701 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,2701 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Height
Plate thickness
Item no.
REV 110 FS
105
1,25
6067999
REV 110 FS
Item no.
6067999
Height
105
Plate thickness
1,25
