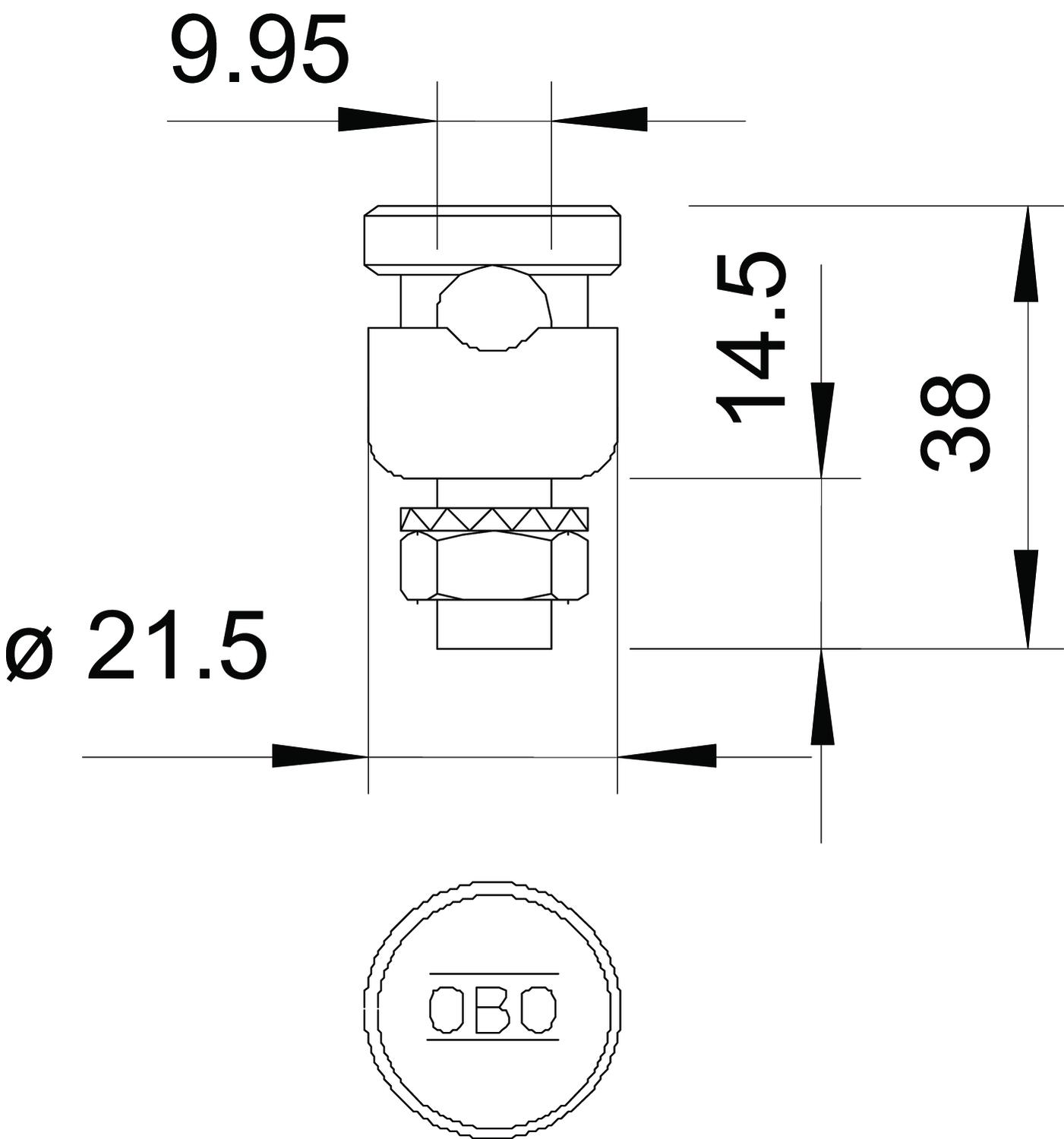

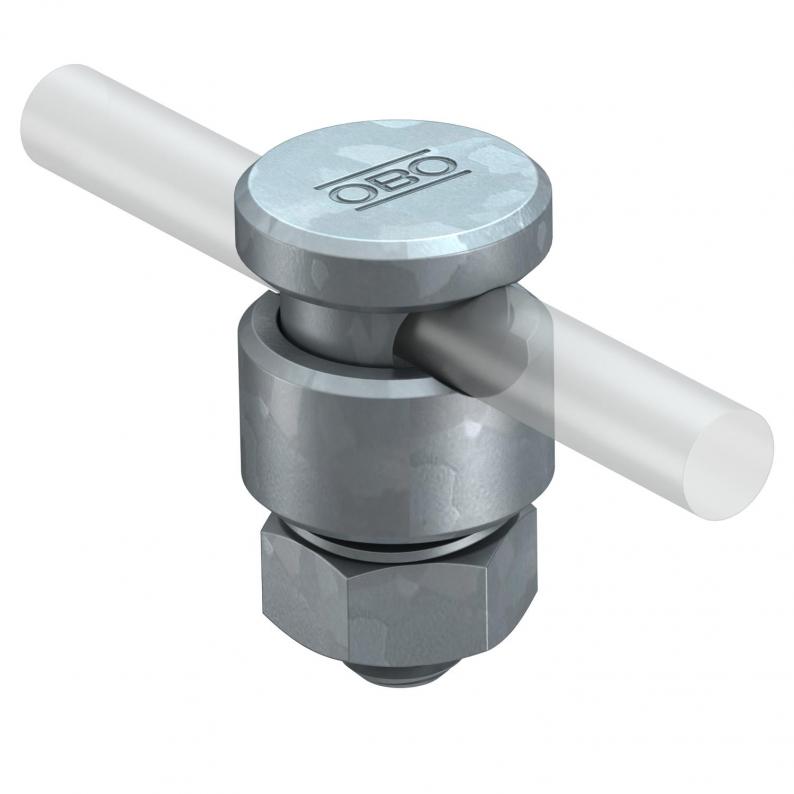

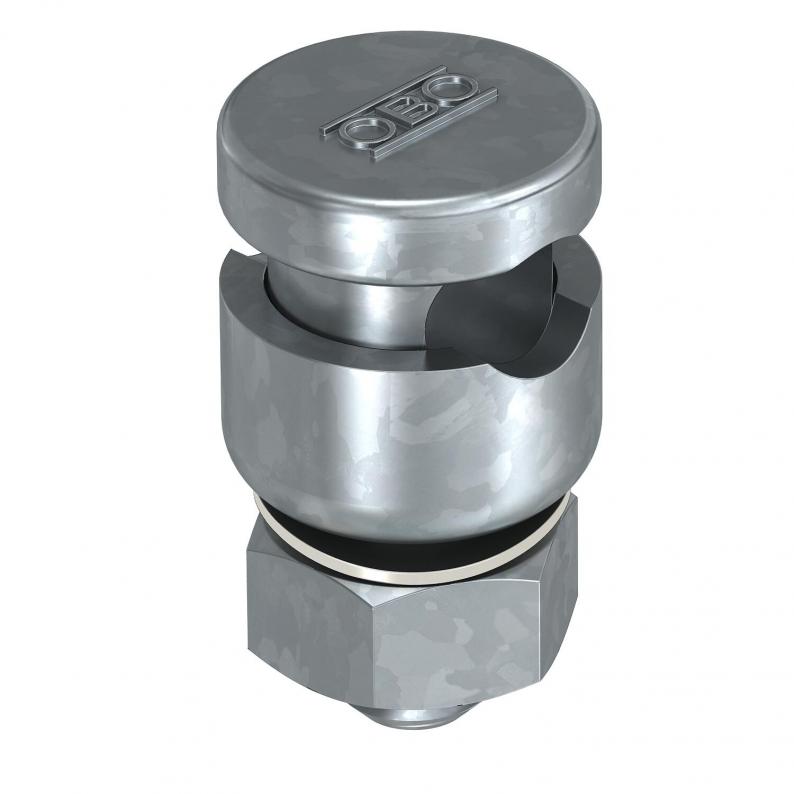

Connector, Rd 8−10 mm with pressure trough FT
Type 5001 N-FT
|Item no. 5304164
|EAN 4012195817512
Item no. / Type
5304164 / 5001 N-FT
Smallest selling unit: 20 piece
20piece
piece
Description
• With 1 Fix-Kontakt clamping bolt, nut and spring washer
• With pre-mounted pressure trough
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• With pre-mounted pressure trough
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Intermediate plate | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Connectors |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,205 kg CO2e / 1 Piece |
