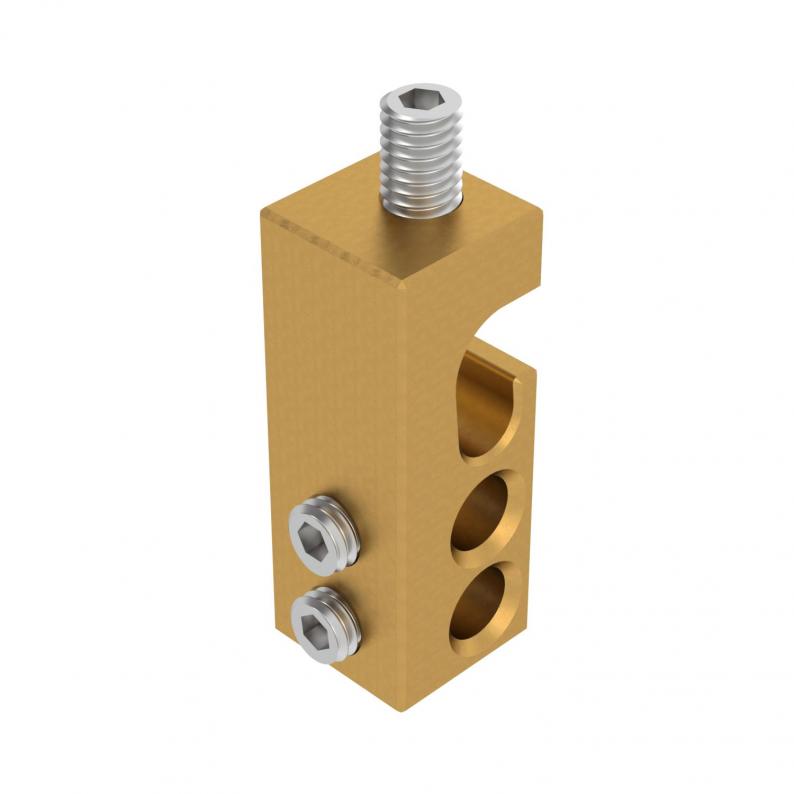

Connection terminal, single
Type AKL 25 E
|Item no. 6049276
|EAN 4012196702718
Item no. / Type
6049276 / AKL 25 E
Material
Brass
Type connection terminal for conductor cable
1x
Smallest selling unit: 10 piece
10piece
piece
Description
Simple connection terminal to accept 1 conductor cable, to create the protective equipotential bonding for cable support systems. Mounting on conductor cable, central in clamp spring.
Technical data

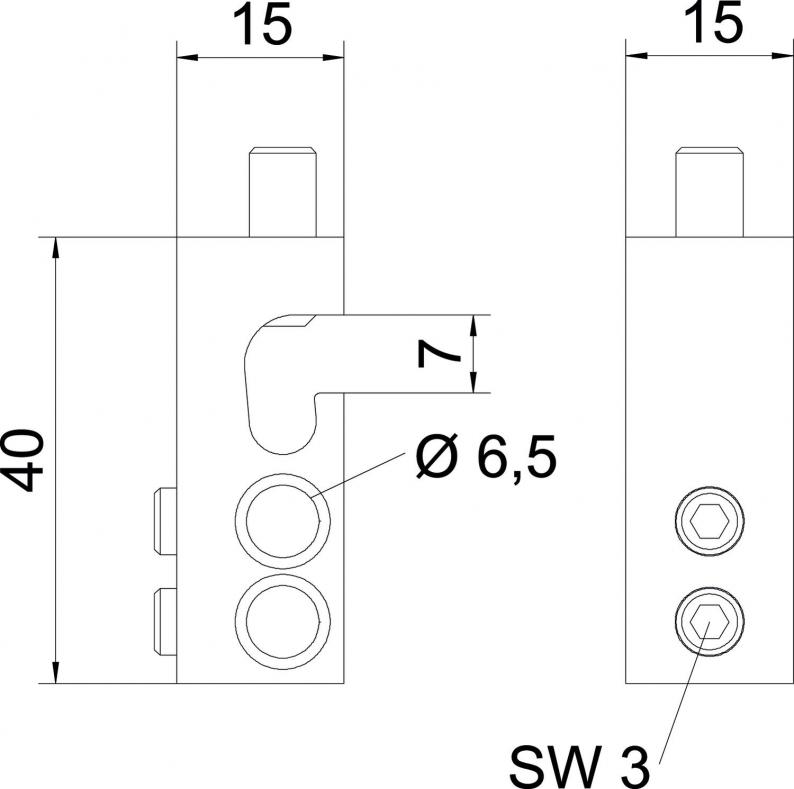

Dimensions
| Length | 15 mm |
|---|---|
| Width | 15 mm |
| Height | 40 mm |
| Dimension B | 7 mm |
| Dimension H | 40 mm |
| Dimension D | 6,5 mm |
Technical data
| Suitable for | Round conductor |
|---|---|
| Cross-section | 25 mm² |
| Dimension | 25mm² |
| Material | Brass |
| Colour | Brass |
| Type connection terminal for conductor cable | 1x |
