Connection shackle, duct height 38 mm
Type DC 5038
|Item no. 7490046
|EAN 4012196511143




Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description
Duct connector for mounting screed-covered underfloor installation ducts.
Technical data

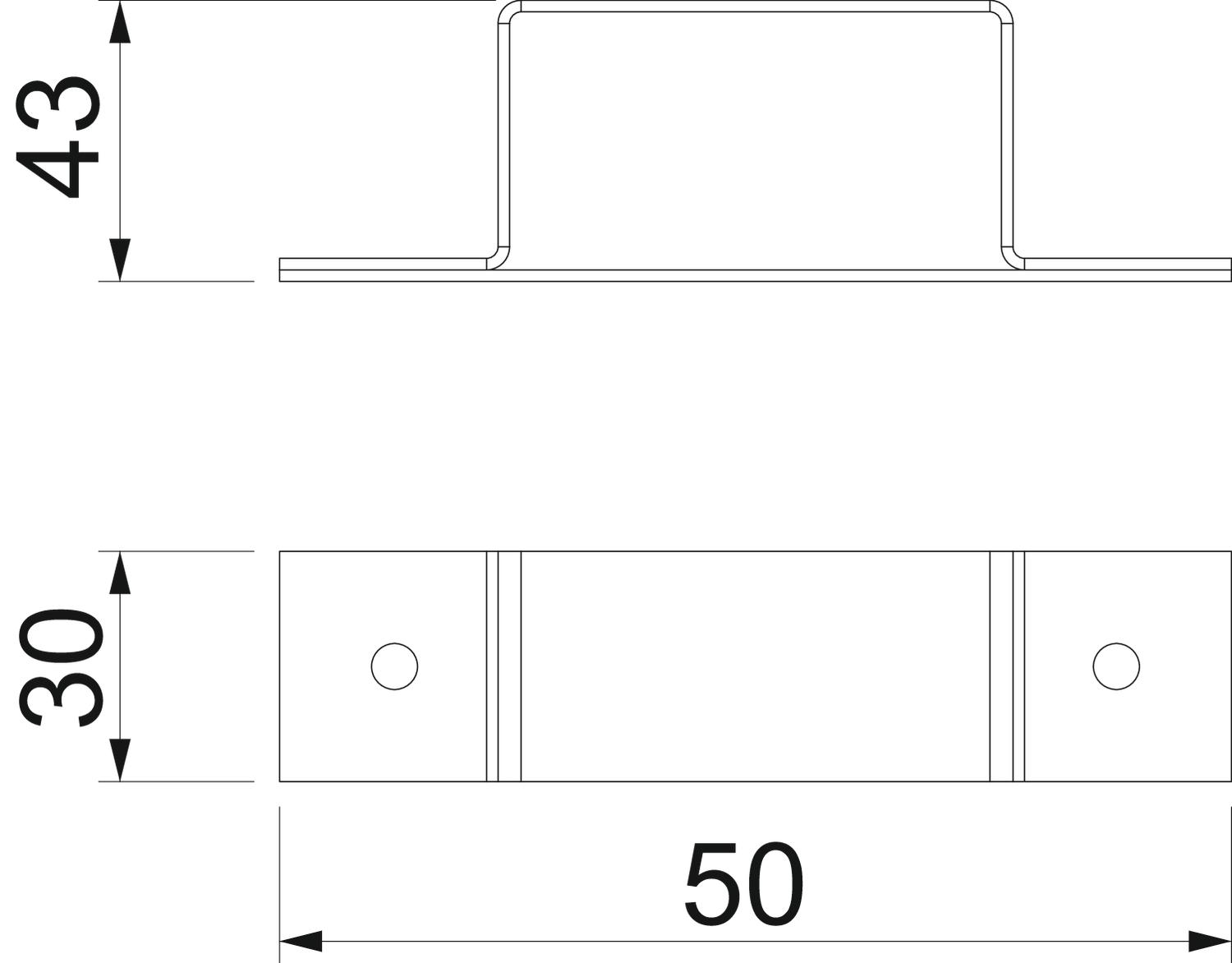

Dimensions
| Width | 50 mm |
|---|---|
| Height | 43 mm |
| Dimension h | 43 mm |
Technical data
| Trunking width, min. | 50 mm |
|---|---|
| Duct height, min. | 43 mm |
| Dimension | 112x40x42.5 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Product images (3)
Tender specifications (1)
Variants
Type
Width
Height
Item no.
DC 5038
50
43
7490046
DC 7538
75
43
7490048
DC 10038
30
43
7490049
DC 15038
150
43
7490051
DC 20038
200
43
7490053
DC 22538
225
43
7490055
DC 25038
250
43
7490056
DC 30038
300
43
7490057
Width
DC 5038
Item no.
7490046
Width
50
Height
43
DC 7538
Item no.
7490048
Width
75
Height
43
DC 10038
Item no.
7490049
Width
30
Height
43
DC 15038
Item no.
7490051
Width
150
Height
43
DC 20038
Item no.
7490053
Width
200
Height
43
DC 22538
Item no.
7490055
Width
225
Height
43
DC 25038
Item no.
7490056
Width
250
Height
43
DC 30038
Item no.
7490057
Width
300
Height
43
