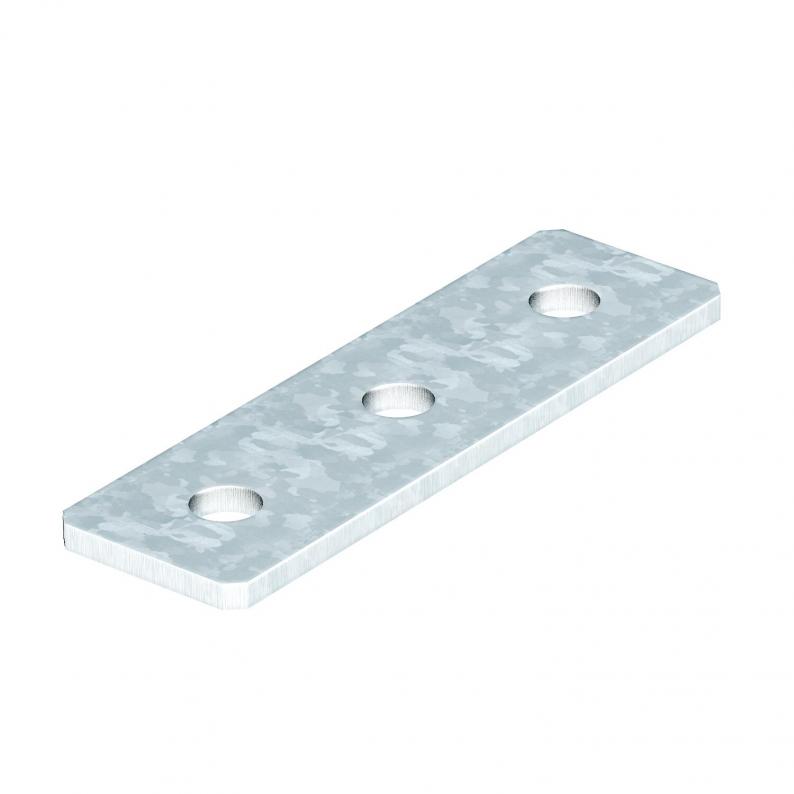

Connection plate with 3 holes FT
Type GMS 3 VP FT
|Item no. 1124647
|EAN 4012195486039
Item no. / Type
1124647 / GMS 3 VP FT
Smallest selling unit: 20 piece
20piece
piece
Description
Connection plate with three holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
Technical data

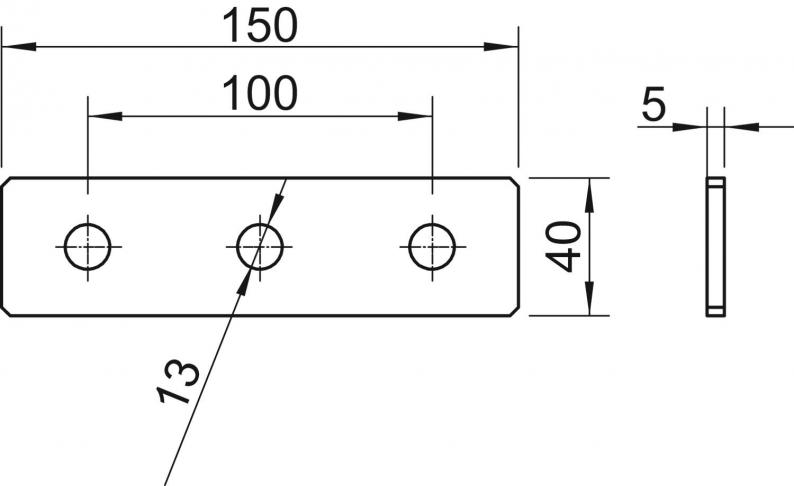

Dimensions
| Length | 150 mm |
|---|---|
| Width | 40 mm |
| Height | 5 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Material thickness | 5 mm |
| Hole size | 13 mm |
| With screw accessories | no |
| Version for | With continuous perforation 13 mm |
| Suitable for profile shapes | C profile |
| Dimension | 150x40x5 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5832 kg CO2e / 1 Piece |
