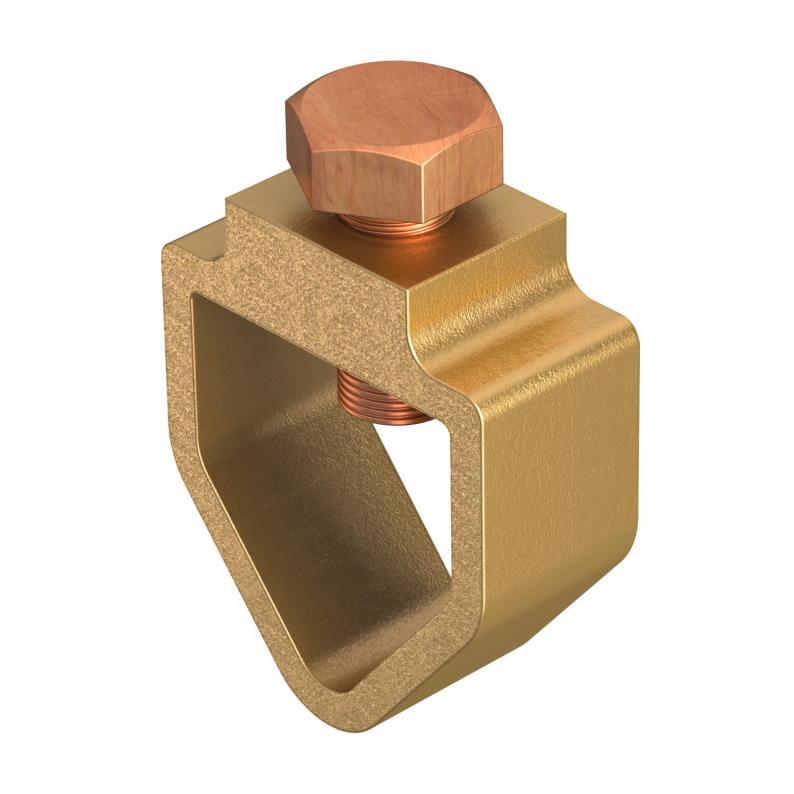

Connection clip

Type 14 25 RT

Item no. 5450060

EAN 4012196497553

Item no. / Type

for earth rods

Smallest selling unit: 1 piece

piece

Description

• Suitable for connecting round conductors Rd 8-10 or flat conductors with earth rod 219 16 CU

Intermediate plate	no
Type of connector	Connectors
Earthing connection diameter	16 mm
Connection	Flat conductor
Suitable for round conductor diameters, min.	8 mm
Suitable for round conductor diameters, max.	10 mm
Type	Connection sleeve
for earth rods	14,2 mm
Fit	Rd 8-10/ FL 25 mm

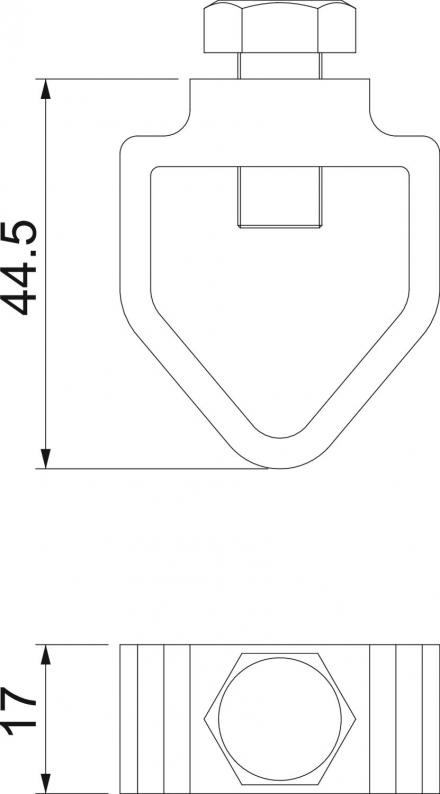

Dimension	37x24x15
Material	Aluminium bronze
Clamping range, min.	8 mm
Clamping range, max.	10 mm
Suitable for flat conductor width max.	25 mm
