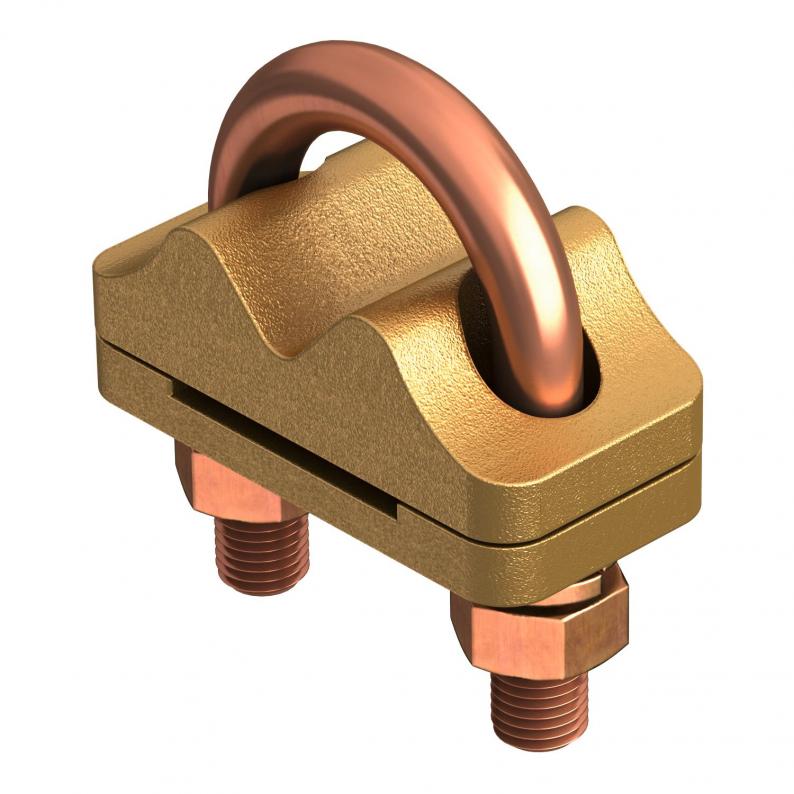

Connection clamp BS
Type 2740 16 25-95
|Item no. 5450073
|EAN 4012196879472
Item no. / Type
for earth rods
Smallest selling unit: 20 piece
20piece
piece
Description
• Complies with the requirements of VDE 0185-350 (IEC 62305)
Technical data

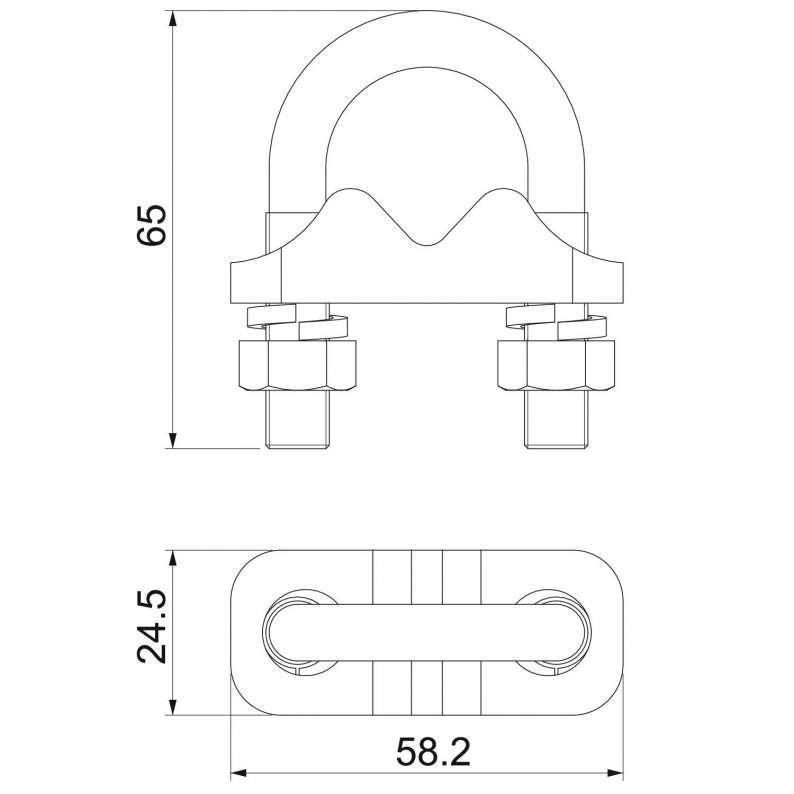

Dimensions
| Length | 59 mm |
|---|---|
| Width | 27 mm |
| Height | 65 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of connector | Connectors |
| Earthing connection diameter | 16 mm |
| Connection | Flat conductor |
| Suitable for round conductor diameters, min. | 8 mm |
| Suitable for round conductor diameters, max. | 10 mm |
| Type | Connection terminal |
| for earth rods | 14,2 mm |
| Fit | Rd 8-10/ FL 25 mm |
| Dimension | 16mm |
| Material | Brass |
| Clamping range, min. | 8 mm |
| Clamping range, max. | 10 mm |
| Suitable for flat conductor width max. | 25 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
for earth rods
Item no.
2740 16 25-95
14,2
5450073
2740 20 35-95
14,2
5450074
2740 16 70-185
14,2
5450075
2740 16 150-300
14,2
5450076
2740 16 E DP
14,2
5450077
2740 20 E DP
14,2
5450078
2745 20 RTT
14,2
5450291
2745 20 RTC
14,2
5450292
2740 16 25-95
Item no.
5450073
for earth rods
14,2
2740 20 35-95
Item no.
5450074
for earth rods
14,2
2740 16 70-185
Item no.
5450075
for earth rods
14,2
2740 16 150-300
Item no.
5450076
for earth rods
14,2
2740 16 E DP
Item no.
5450077
for earth rods
14,2
2740 20 E DP
Item no.
5450078
for earth rods
14,2
2745 20 RTT
Item no.
5450291
for earth rods
14,2
2745 20 RTC
Item no.
5450292
for earth rods
14,2
