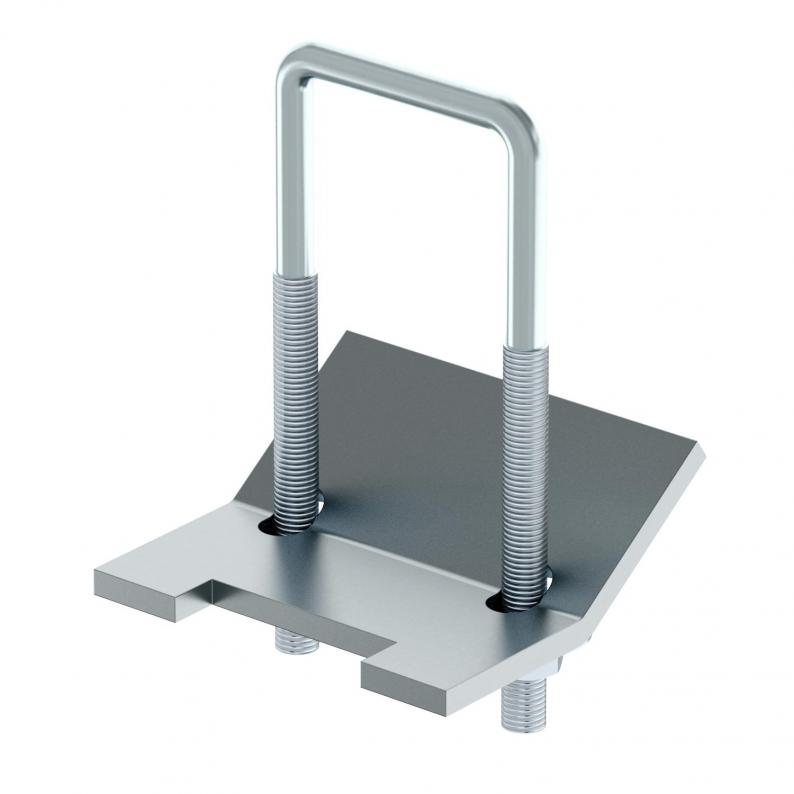

Clamp, FT
Type SB MS 41 M8 FT
|Item no. 1124679
|EAN 4012196624232
Item no. / Type
1124679 / SB MS 41 M8 FT
Smallest selling unit: 20 piece
20piece
piece
Description
Connection element for two-sided fastening of profile rails to steel girders. Fastening is possible independently of the arrangement of the rail opening. The rail length should be at least the width of the steel girder + 2 x 50 mm. Always use in pairs for mounting. For use with profile rail MS4022, MS4141, MS4142, MS4124.
Technical data

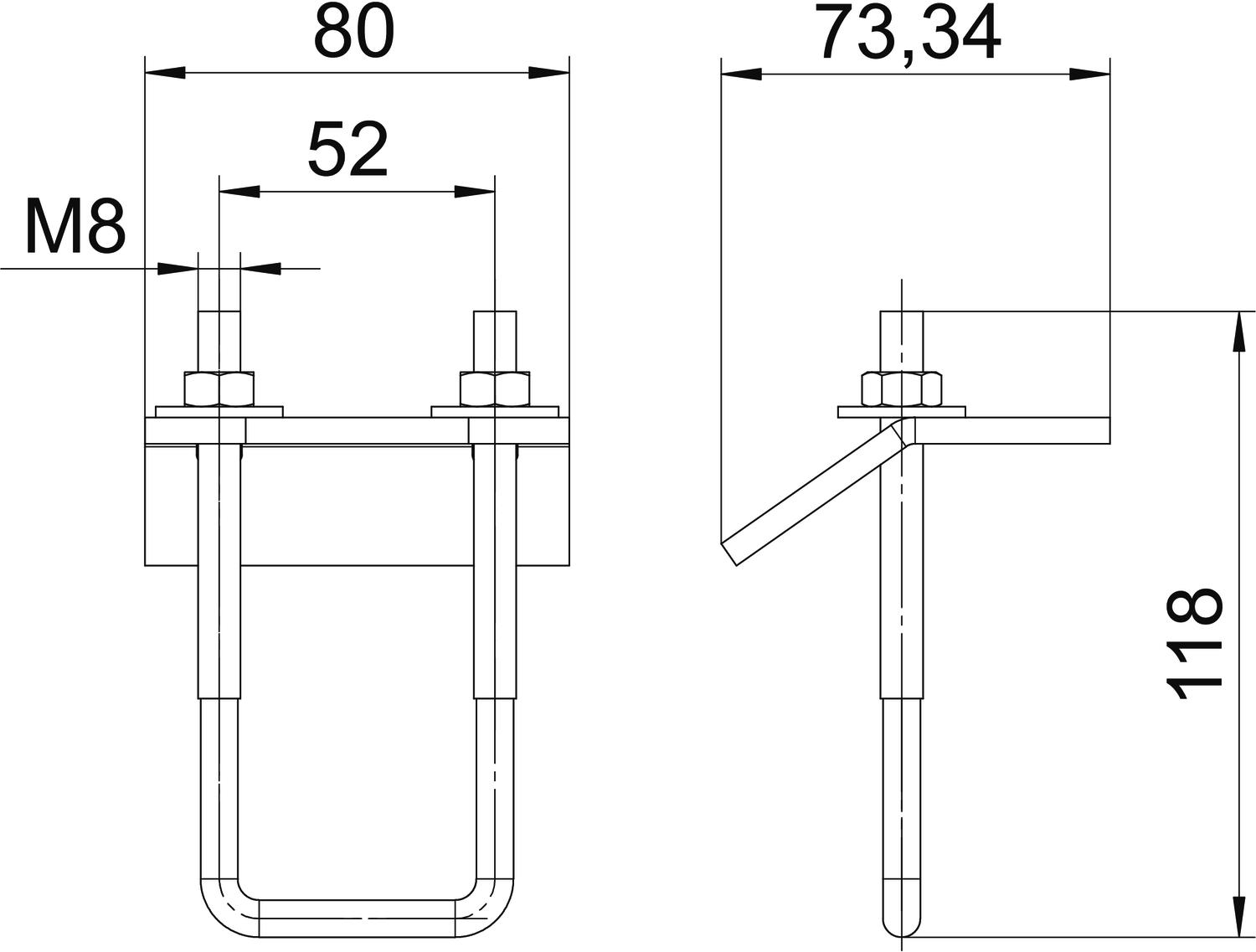

Dimensions
| Length | 118 mm |
|---|---|
| Width | 80 mm |
| Height | 74 mm |
Technical data
| Breaking load | 3,5 kN |
|---|---|
| Max. Tightening torque | 20 Nm |
| Flange thickness F max. | 16 mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7202 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Height
Item no.
SB MS 41 M8 FT
118
80
74
1124679
SB MS 41 M8 FT
Item no.
1124679
Length
118
Width
80
Height
74
