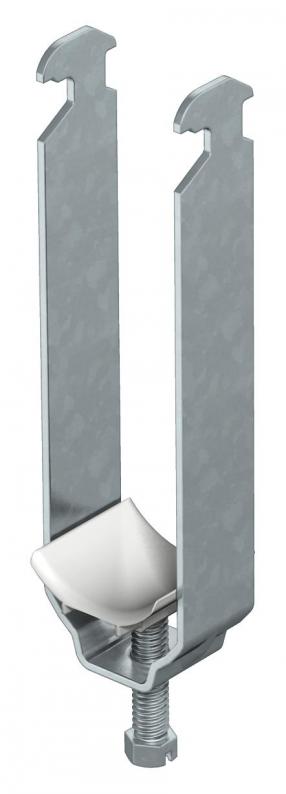

Clamp clip, triple, FT plastic pressure trough
Type 2056 3 16 FT
|Item no. 1162160
|EAN 4012195067030
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| for rail with slot width (with interval), min. | 16 mm |
|---|---|
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 3 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| Clamping range D, min. | 12 mm |
| Clamping range D, max. | 16 mm |
| Dimension | 12-16mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1151 kg CO₂e / 1 Piece |

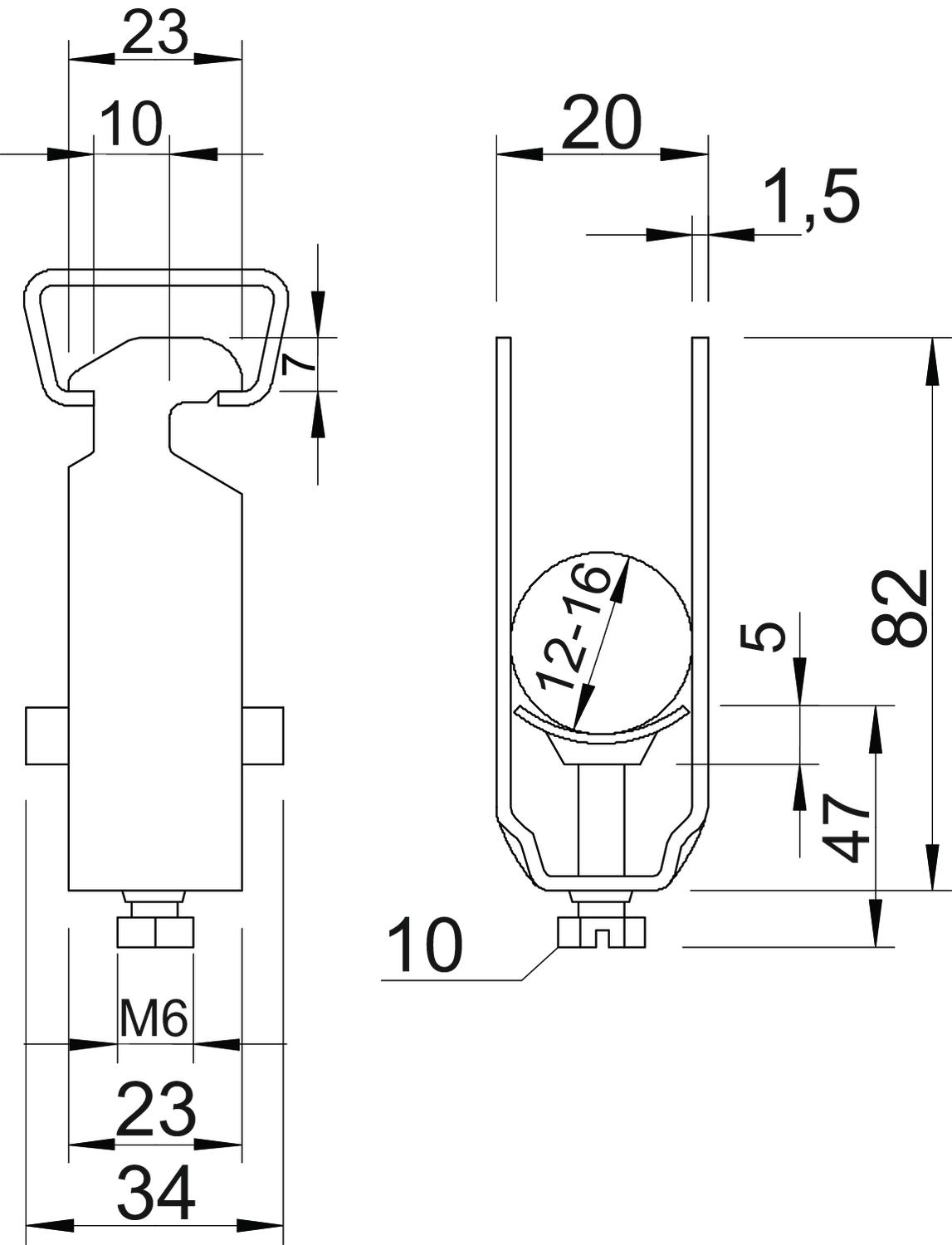

Dimensions
| Dimension L | 47 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 20 mm |
| Dimension H | 82 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056 3 16 FT
3
12
16
1162160
2056 3 22 FT
3
16
22
1162225
2056 3 40 FT
5
34
40
1162403
2056 3 46 FT
5
40
46
1162462
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056 3 16 FT
Item no.
1162160
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056 3 22 FT
Item no.
1162225
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056 3 40 FT
Item no.
1162403
Max. Tightening torque
5
Clamping range D, min.
34
Clamping range D, max.
40
2056 3 46 FT
Item no.
1162462
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
