Cable tray GKS GX 60 FT
Type GKS GX 610 FT
|Item no. 6483031
|EAN 4012195506454
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

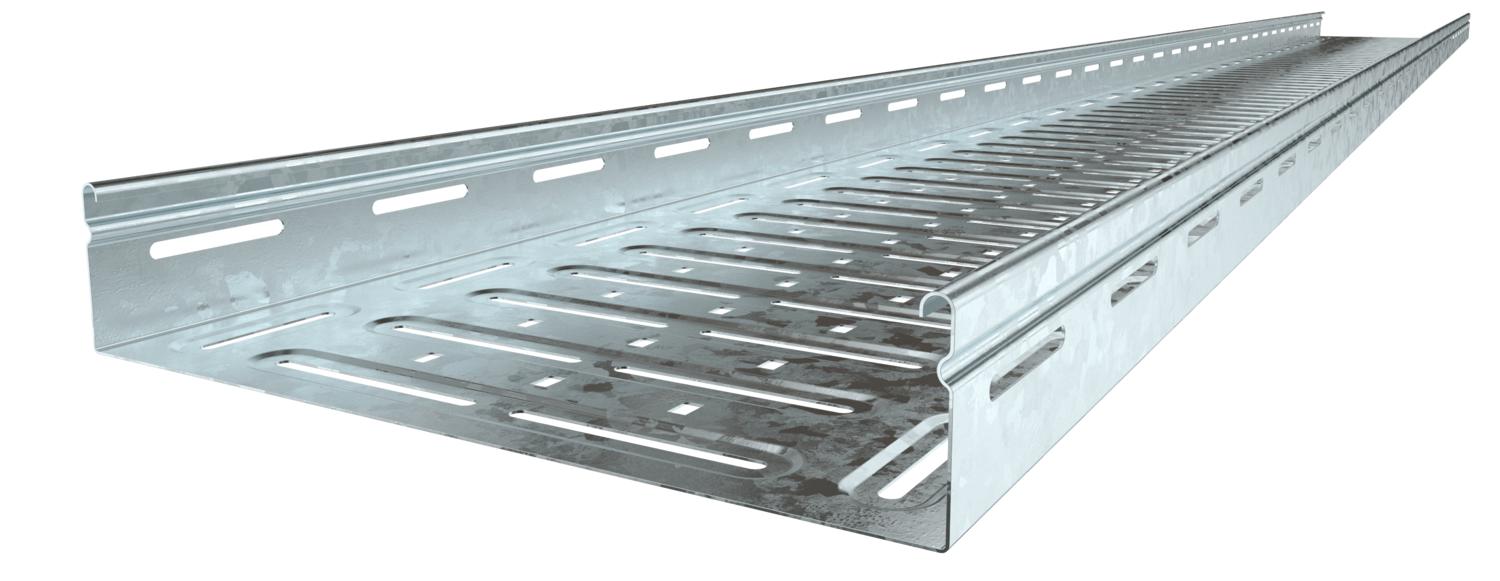

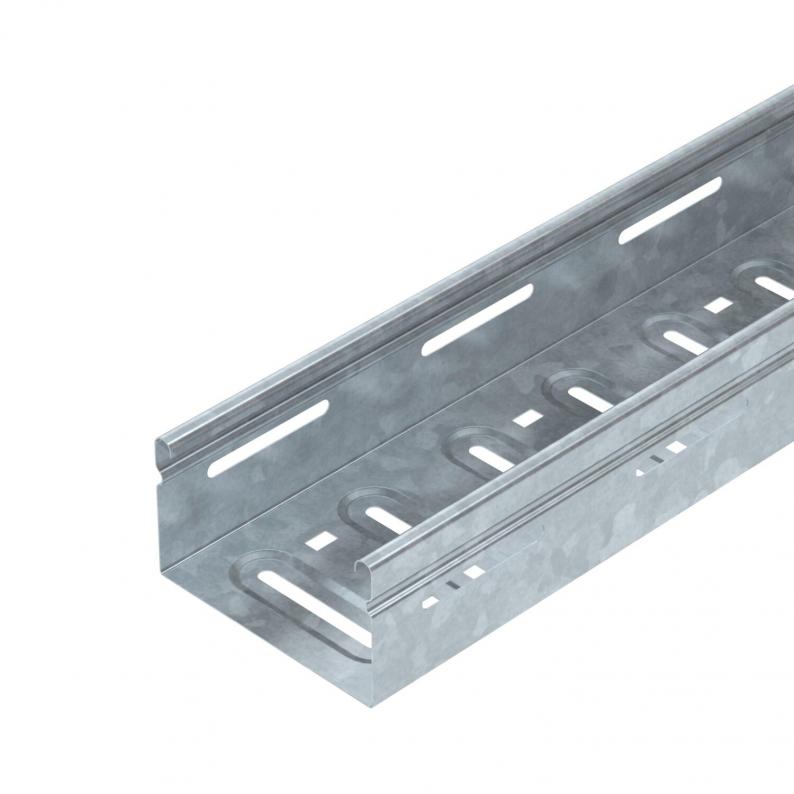

GKS 60 GX = perforated cable tray system with 60 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data
Dimensions

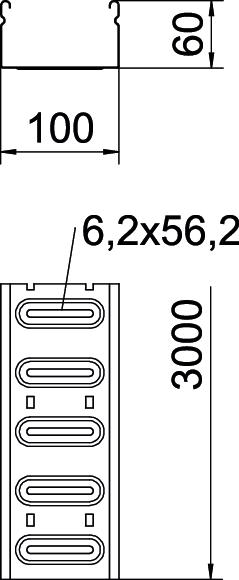

| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 60 mm |
| Dimension L | 3000 mm |
| Dimension B | 100 mm |
| Dimension H | 60 mm |
| Dimension D | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 58 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,6 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 5800 mm² |
| With cover | no |
| Dimension | 60x100x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,5 kN/m |
|---|---|
| Support spacing 2.5 m | 0,3 kN/m |
| Support spacing 1.0 m | 1,2 kN/m |
| Support spacing 1.5 m | 0,6 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing

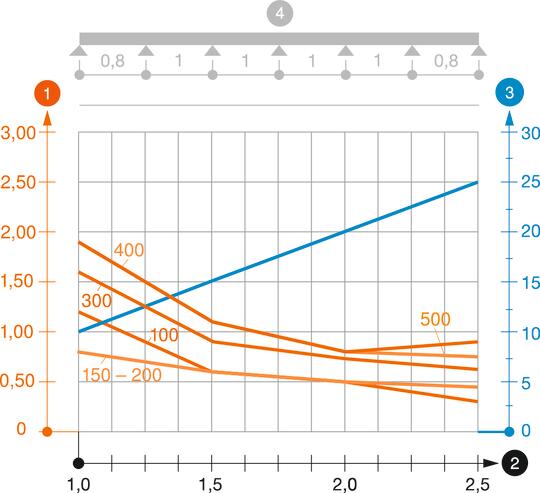

Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Ab der Breite 100 mm mit Stoßstellenleiste geprüft
