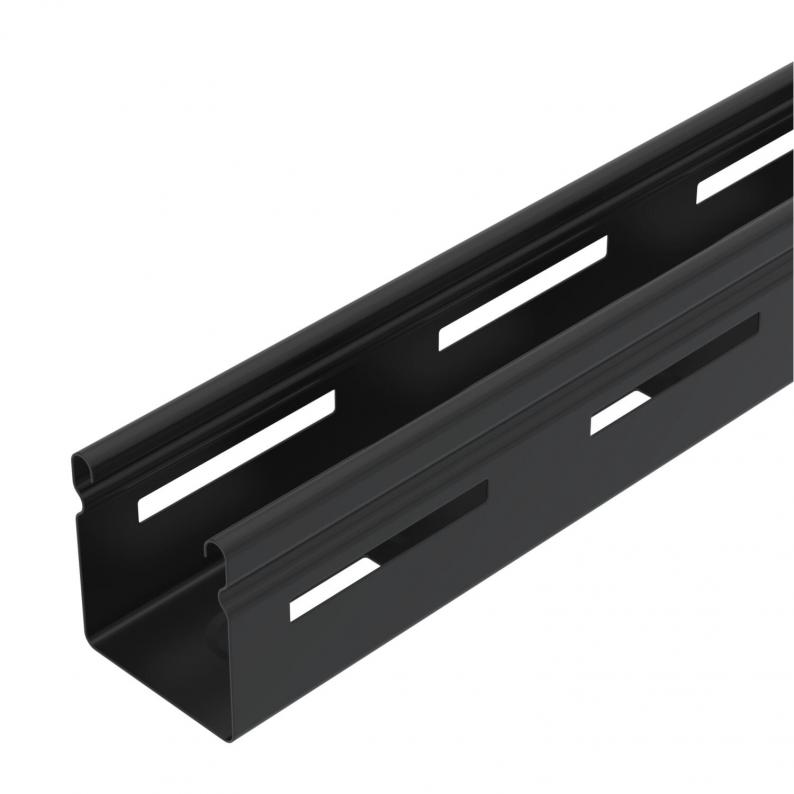

Cable tray GKS GX 60 FSKSW

Cable tray GKS GX 60 FSKSW

Type GKS GX 605 FSKSW
|
Item no. 6487860
|
EAN 4012197466626
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
PES50 - Polyester/epoxy
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsVariants

Description

GKS 60 GX = perforated cable tray system with 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

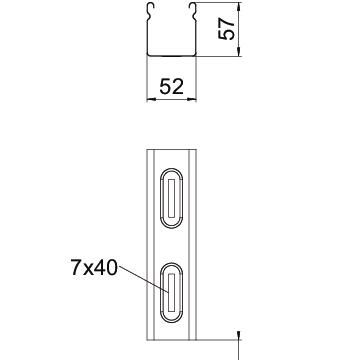

Dimensions

Length3000 mm
Width50 mm
Height57 mm
Dimension W52 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section16 cm²
Rustproof steel, pickledno
Plate thickness0,8 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section1600 mm²
Dimension60x50
Base perforation7x40
Dimension60x50x3000
SurfacePES50 - Polyester/epoxy
MaterialSteel
ColourJet black; RAL 9005
Load diagram, cable tray, type GKS GX60

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Ab der Breite 100 mm mit Stoßstellenleiste geprüft

Downloads

0 selected

Product images (2)
Tender specifications (2)

Variants

Width
Plate thickness
GKS GX 605 FSKSW
Item no.
6487860
Length
3000
Width
50
Maintain electrical functions
no
Plate thickness
0,8
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS GX 610 FSKSW
Item no.
6487861
Length
3000
Width
100
Maintain electrical functions
no
Plate thickness
0,6
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS GX 615 FSKSW
Item no.
6487862
Length
3000
Width
150
Maintain electrical functions
no
Plate thickness
0,7
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS GX 620 FSKSW
Item no.
6487863
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
0,7
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS GX 630 FSKSW
Item no.
6487865
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS GX 640 FSKSW
Item no.
6487867
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,2
Surface
PES50 - Polyester/epoxy
Material
Steel
GKS GX 650 FSKSW
Item no.
6487869
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,2
Surface
PES50 - Polyester/epoxy
Material
Steel
