Cable tray GKS GX 60 FSKSW
Type GKS GX 610 FSKSW
|Item no. 6487861
|EAN 4012197466664
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
PES50 - Polyester/epoxy
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

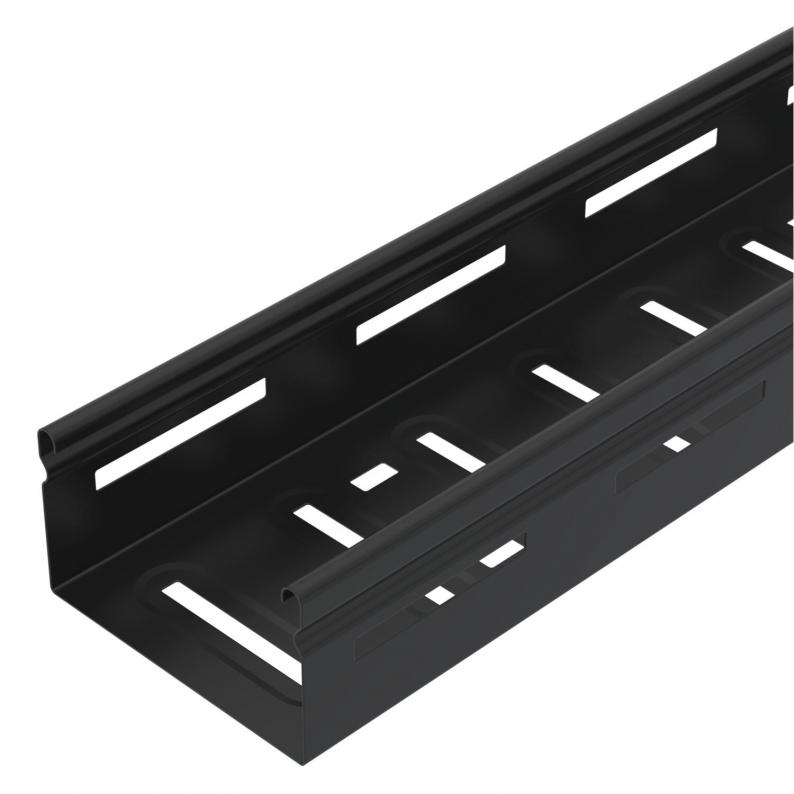

GKS 60 GX = perforated cable tray system with 60 mm side height.
Technical data

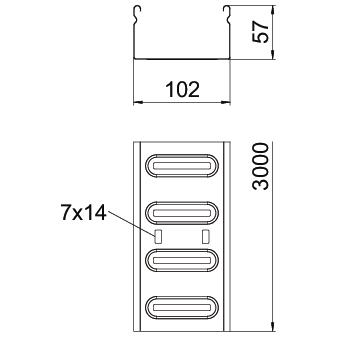

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 57 mm |
| Dimension W | 102 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,6 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Dimension | 60x100 |
| Base perforation | 7x58 |
| Dimension | 60x100x3000 |
| Surface | PES50 - Polyester/epoxy |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
Loads
| Support spacing 2.0 m | 0,5 kN/m |
|---|---|
| Support spacing 2.5 m | 0,3 kN/m |
| Support spacing 1.0 m | 1,2 kN/m |
| Support spacing 1.5 m | 0,6 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Ab der Breite 100 mm mit Stoßstellenleiste geprüft
