Cable ladder LG 75, 3 m VS FT

Cable ladder LG 75, 3 m VS FT

Type LG 720 VS FT
|
Item no. 6487032
|
EAN 4012196512270
Show all variants
Item no. / Type
Length
Width
Rail thickness
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsVariants

Description

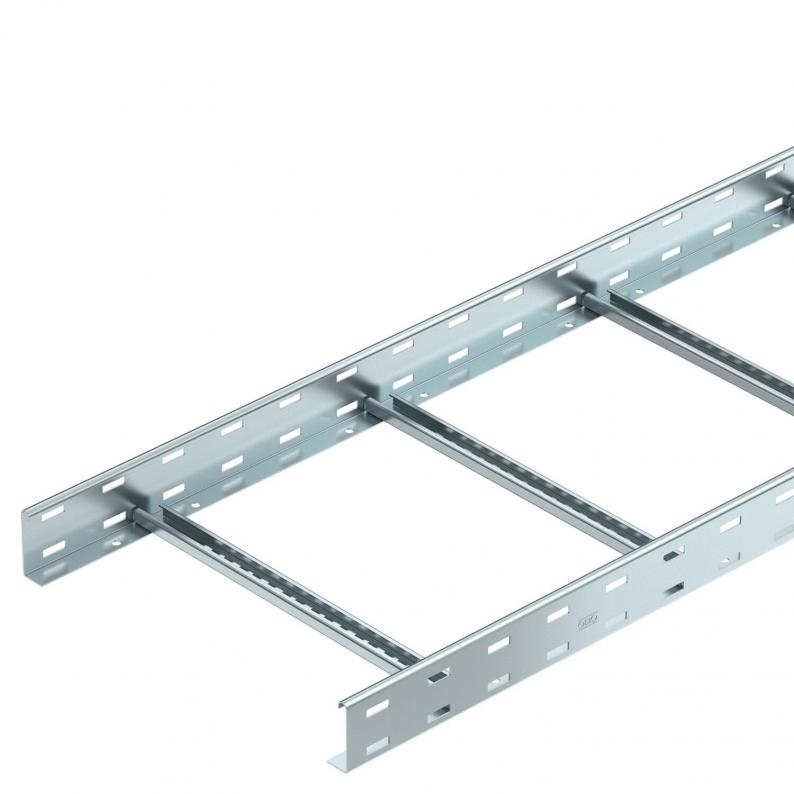

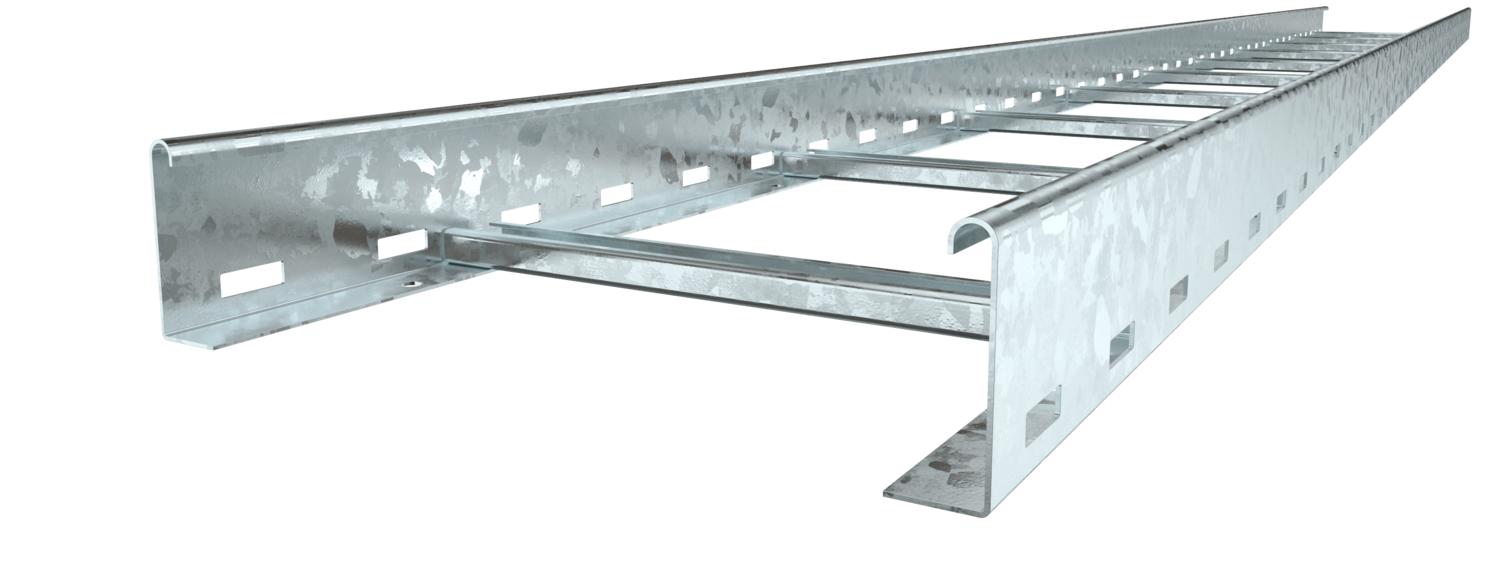

Cable ladder with perforated side rail of side height 75 mm with riveted C profile rungs, open in an upwards direction. Assignment of the rungs on both sides possible using U clamps.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

Dimensions

Length3000 mm
Width200 mm
Height75 mm

Technical data

Wide-span versionno
Usable cross-section108 cm²
Usable cross-section10800 mm²
Rung distance300 mm
Fastening of rungBlind riveted
Rail thickness1,5 mm
Dimension75x200x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Loads

Support spacing 2.0 m1,4 kN/m
Support spacing 2.5 m1 kN/m
Support spacing 3.0 m0,75 kN/m
Support spacing 4.0 m0,35 kN/m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

Width
Rail thickness
LG 720 VS FT
Item no.
6487032
Length
3000
Width
200
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 730 VS FT
Item no.
6487034
Length
3000
Width
300
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 745 VS FT
Item no.
6487037
Length
3000
Width
450
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 760 VS FT
Item no.
6487039
Length
3000
Width
600
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 775 VS FT
Item no.
6487042
Length
3000
Width
750
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 7100 VS FT
Item no.
6487045
Length
3000
Width
1000
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
