Cable ladder LG 50, 3 m FT
Type LG 520 VS FT
|Item no. 6487002
|EAN 4012196512157
Item no. / Type
Length
Width
Rail thickness
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

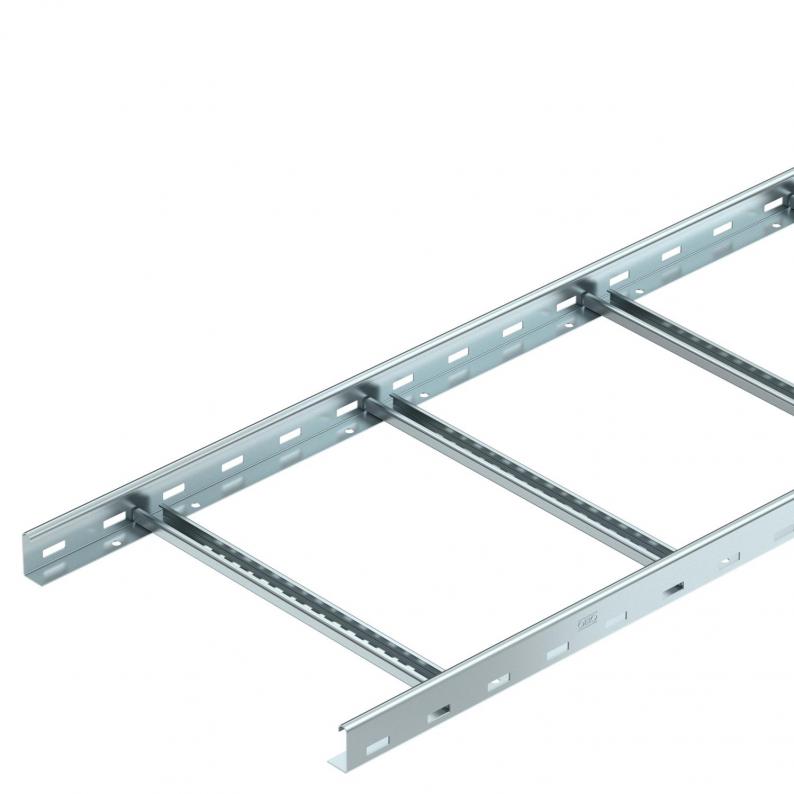

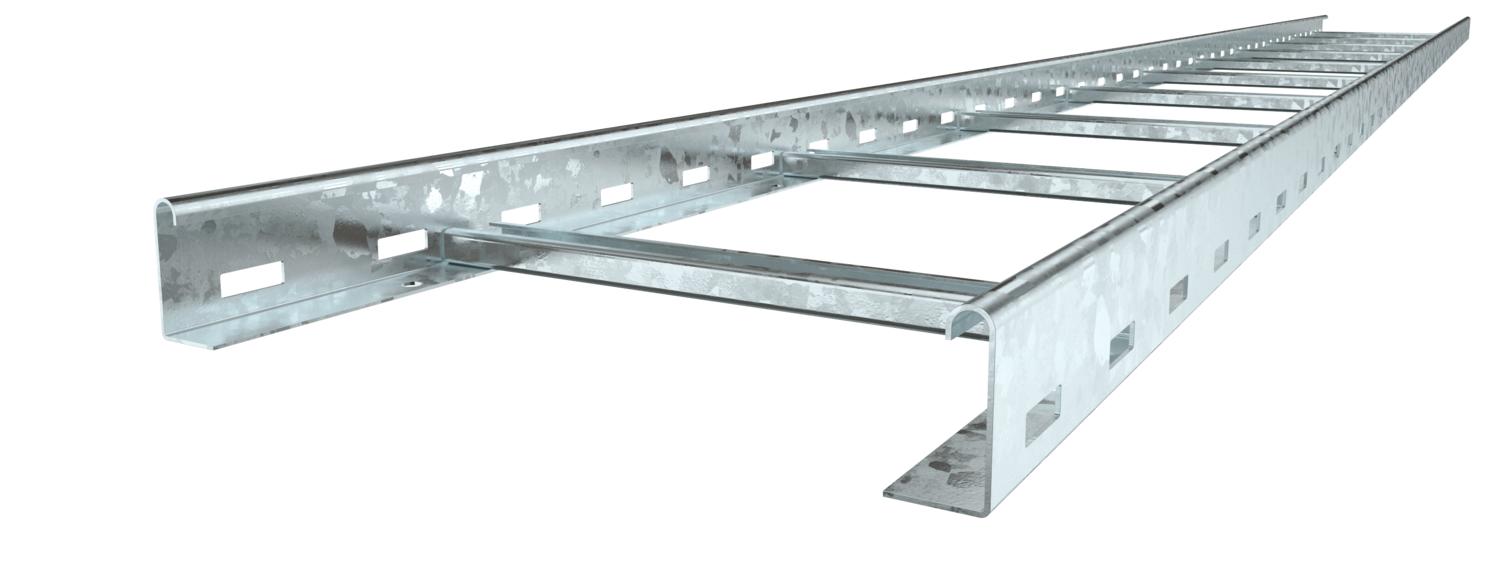

Cable ladder with perforated side rail of side height 50 mm with riveted C profile rungs, open in an upwards direction. Assignment of the rungs on both sides possible using U clamps.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Technical data

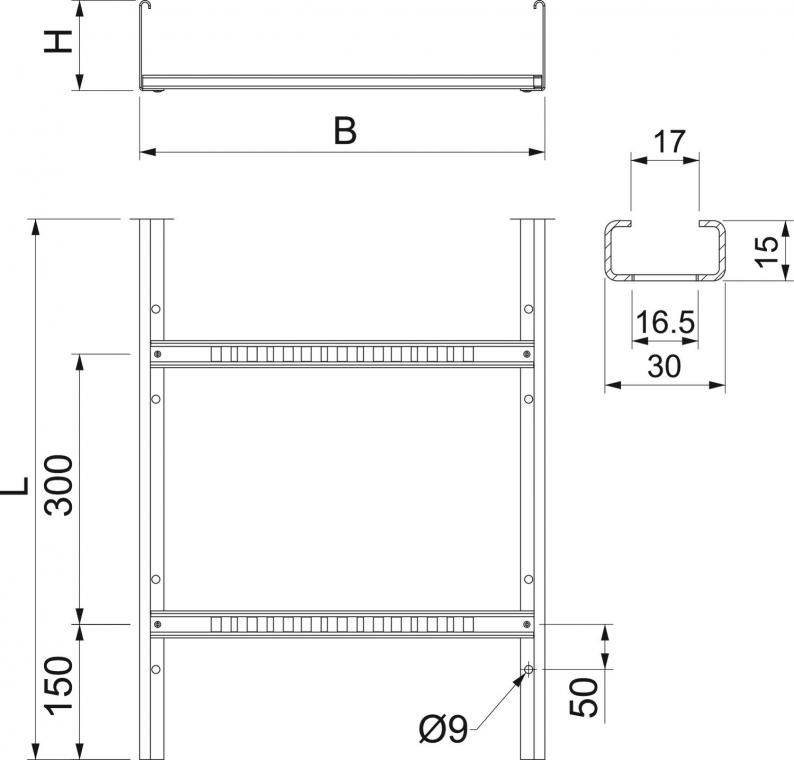

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 50 mm |
Technical data
| Wide-span version | no |
|---|---|
| Usable cross-section | 60 cm² |
| Usable cross-section | 6000 mm² |
| Rung distance | 300 mm |
| Fastening of rung | Blind riveted |
| Rail thickness | 1,5 mm |
| Dimension | 50x200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Loads
| Support spacing 2.0 m | 0,7 kN/m |
|---|---|
| Support spacing 2.5 m | 0,5 kN/m |
| Support spacing 3.0 m | 0,35 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Rail thickness
Surface
Material
Item no.
LG 520 VS FT
3000
200
1,5
Hot-dip galvanised
Steel
6487002
LG 530 VS FT
3000
300
1,5
Hot-dip galvanised
Steel
6487004
LG 545 VS FT
3000
450
1,5
Hot-dip galvanised
Steel
6487007
LG 560 VS FT
3000
600
1,5
Hot-dip galvanised
Steel
6487009
Width
LG 520 VS FT
Item no.
6487002
Length
3000
Width
200
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 530 VS FT
Item no.
6487004
Length
3000
Width
300
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 545 VS FT
Item no.
6487007
Length
3000
Width
450
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
LG 560 VS FT
Item no.
6487009
Length
3000
Width
600
Rail thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
