Cable ladder LG 100, 3 m VS FT
Type LG 1020 VS FT
|Item no. 6487102
|EAN 4012196512454
Item no. / Type
Length
Width
Rail thickness
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

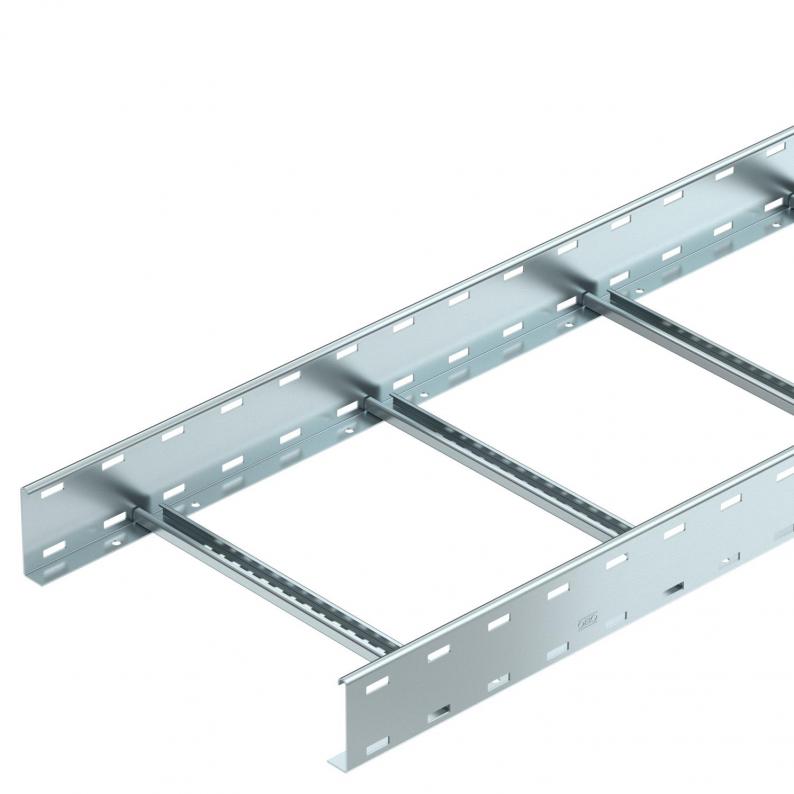

Cable ladder with perforated side rail of side height 100 mm with riveted C profile rungs, open in an upwards direction. Assignment of the rungs on both sides possible using U clamps.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 100 mm |
Technical data
| Wide-span version | no |
|---|---|
| Usable cross-section | 158 cm² |
| Usable cross-section | 15800 mm² |
| Rung distance | 300 mm |
| Fastening of rung | Blind riveted |
| Rail thickness | 2 mm |
| Dimension | 100x200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Loads
| Support spacing 2.0 m | 2,6 kN/m |
|---|---|
| Support spacing 2.5 m | 1,7 kN/m |
| Support spacing 3.0 m | 1,3 kN/m |
| Support spacing 4.0 m | 0,5 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Rail thickness
Surface
Material
Item no.
LG 1020 VS FT
3000
200
2
Hot-dip galvanised
Steel
6487102
LG 1030 VS FT
3000
300
2
Hot-dip galvanised
Steel
6487104
LG 1045 VS FT
3000
450
2
Hot-dip galvanised
Steel
6487107
LG 1060 VS FT
3000
600
2
Hot-dip galvanised
Steel
6487109
LG 1075 VS FT
3000
750
2
Hot-dip galvanised
Steel
6487112
LG 1090 VS FT
3000
900
2
Hot-dip galvanised
Steel
6487114
LG 10100 VS FT
3000
1000
2
Hot-dip galvanised
Steel
6487116
Width
LG 1020 VS FT
Item no.
6487102
Length
3000
Width
200
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 1030 VS FT
Item no.
6487104
Length
3000
Width
300
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 1045 VS FT
Item no.
6487107
Length
3000
Width
450
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 1060 VS FT
Item no.
6487109
Length
3000
Width
600
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 1075 VS FT
Item no.
6487112
Length
3000
Width
750
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 1090 VS FT
Item no.
6487114
Length
3000
Width
900
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
LG 10100 VS FT
Item no.
6487116
Length
3000
Width
1000
Rail thickness
2
Surface
Hot-dip galvanised
Material
Steel
