Cable gland, PG thread, light grey

Cable gland, PG thread, light grey

Type V-TEC PG7 LGR
|
Item no. 2024705
|
EAN 4012195446774
Show all variants
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Light grey; RAL 7035

Smallest selling unit: 50 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP68
ThreadPg 7
For Ex zoneWithout
Thread typePG
Bend protectionno
With locknutno
Sealing insert, multipleno
Flat cable glandno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,41 mm
Nominal thread size7
Hexagonal corner dimension16,5 mm
Sealing area D, min.2,5 mm
Sealing area D, max.6,5 mm
WAF15
Version forStraight
Thread length8 mm
Unstable torque1,67 Nm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.65 °C
DimensionPG7
MaterialPolyamide
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,0223 kg CO2e / 1 Piece

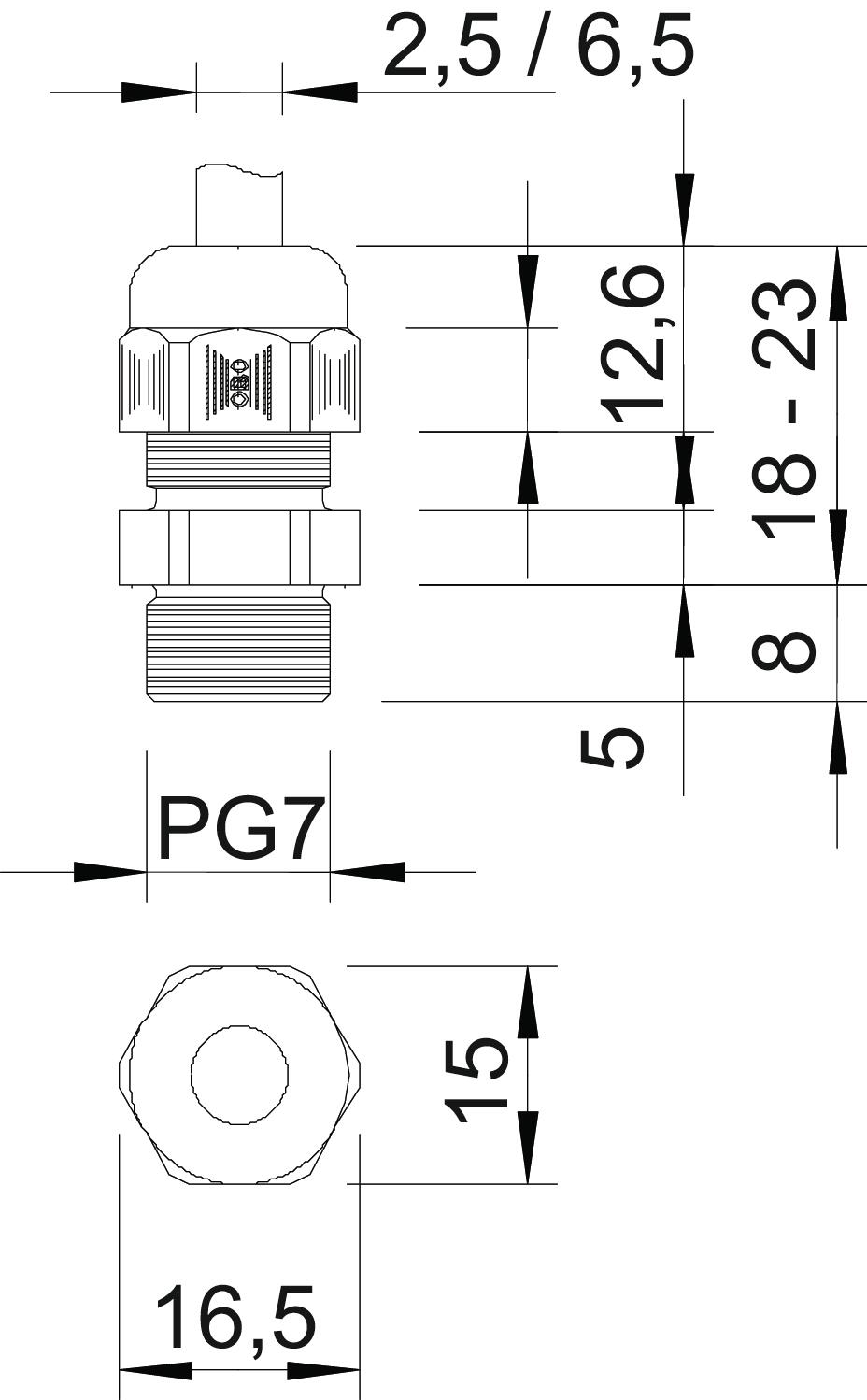

Dimensions

Dimension L min.18 mm
Dimension L max.23 mm
Dimension L18 mm
Dimension L25 mm
Dimension L312,6 mm
Dimension E16,5 mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (2)

Variants

Thread
V-TEC PG7 LGR
Item no.
2024705
Thread
Pg 7
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG9 LGR
Item no.
2024713
Thread
Pg 9
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG11 LGR
Item no.
2024721
Thread
Pg 11
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG13 LGR
Item no.
2024748
Thread
Pg 13,5
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG16 LGR
Item no.
2024756
Thread
Pg 16
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG21 LGR
Item no.
2024764
Thread
Pg 21
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG29 LGR
Item no.
2024772
Thread
Pg 29
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG36 LGR
Item no.
2024780
Thread
Pg 36
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG42 LGR
Item no.
2024799
Thread
Pg 42
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC PG48 LGR
Item no.
2024802
Thread
Pg 48
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
