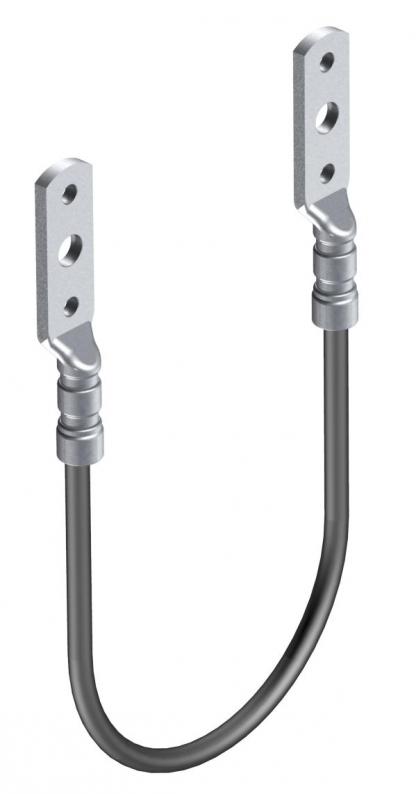

Bridging cable
Type 853 300
|Item no. 5331013
|EAN 4012195423379
Item no. / Type
5331013 / 853 300
Smallest selling unit: 10 piece
10piece
piece
Description
• With aluminium cable lugs
• From flexible copper cable 16 mm²
• Coating: Black, chlorinated EM5 natural rubber mixture
• With 1 fastening hole Ø 10.5 mm per attachment side
• With 2 fastening holes Ø 6.5 mm per attachment side
• Suitable for applications outside or inside
• Temperature range –25 °C to +80 °C (moved) and –40 °C to +80 °C (not moved)
• UV-resistant
• From flexible copper cable 16 mm²
• Coating: Black, chlorinated EM5 natural rubber mixture
• With 1 fastening hole Ø 10.5 mm per attachment side
• With 2 fastening holes Ø 6.5 mm per attachment side
• Suitable for applications outside or inside
• Temperature range –25 °C to +80 °C (moved) and –40 °C to +80 °C (not moved)
• UV-resistant
Technical data

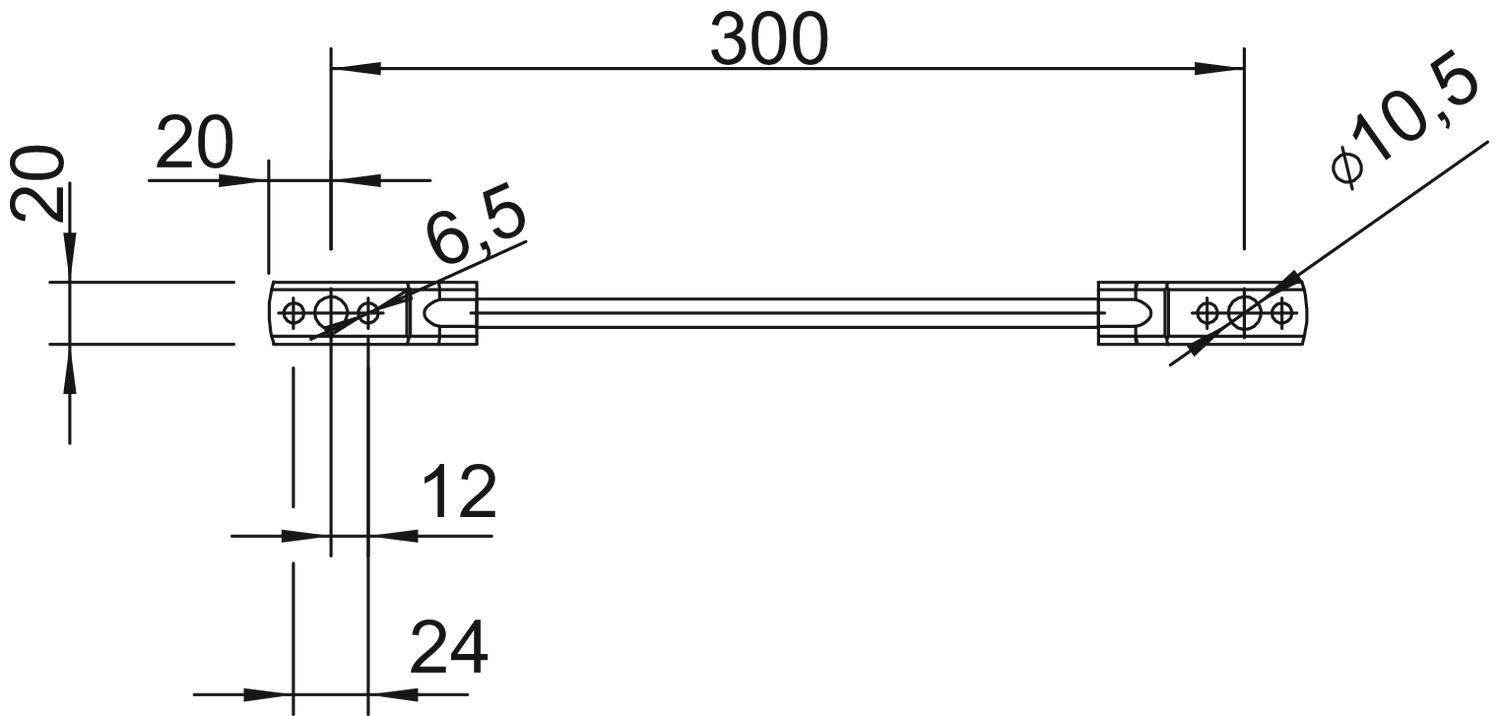

Dimensions
| Length | 300 mm |
|---|---|
| Dimension L | 300 mm |
Technical data
| Dimension | 300mm |
|---|---|
| Material | Copper |
| Colour | Black |
| Accessories | yes |
| Spare part | no |
