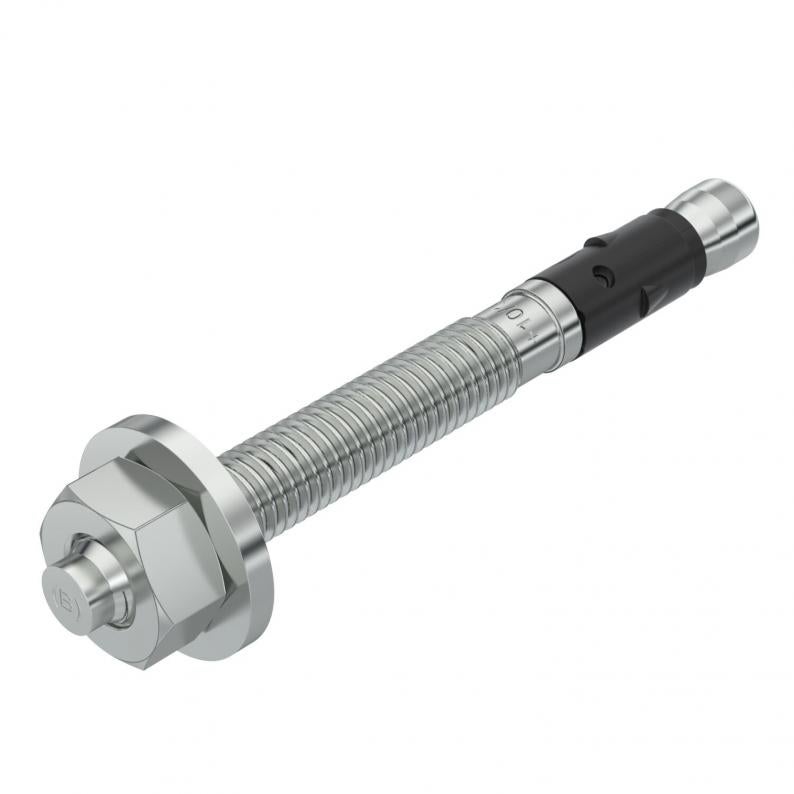

Bolt tie FAZ II P G

Bolt tie FAZ II P G

Type FAZIIPlus 10/10
|
Item no. 3498912
|
EAN 4012197507176
Show all variants
Item no. / Type
Length
Thread

Smallest selling unit: 50 piece

piece

Description

Bolt tie FAZ II Plus for the anchoring of medium to heavy loads in cracked or uncracked concrete. Suitable for high loads with small edge and axial distances. For knocking in.
European Technical Assessment ETA-99/0520, including characteristic values under fire exposure to fire resistance R 120.
Proof of suitability in the event of seismic impacts, categories C1 and C2.
  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

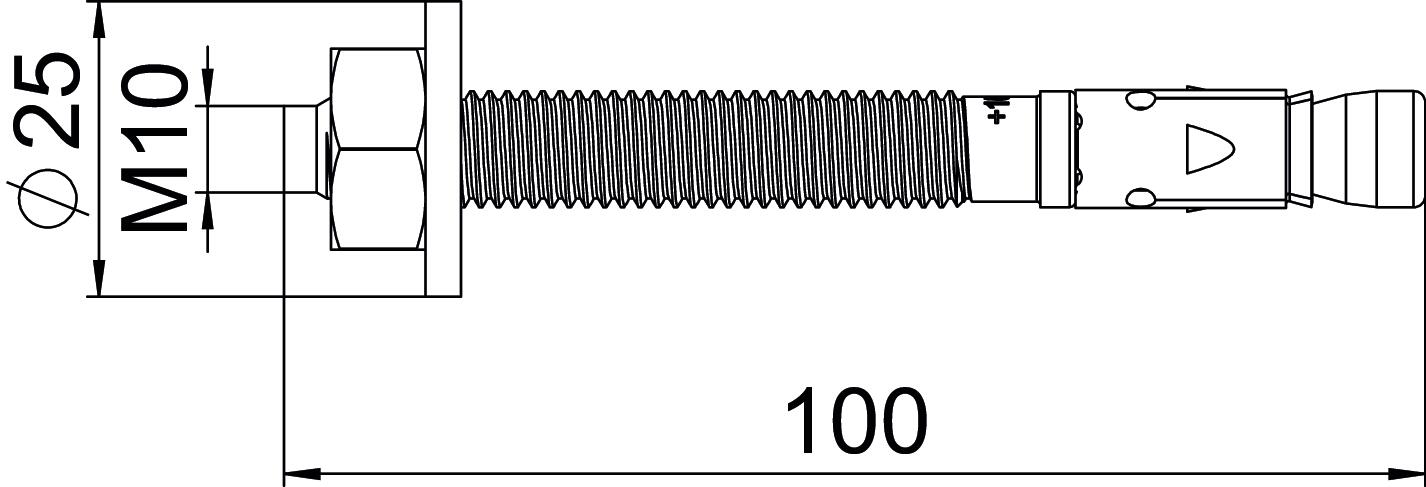

Dimensions

Length95 mm
Dimension L95 mm

Technical data

Thread metric10
ThreadM10
Anchor/nail/bolt versionSpreading anchor
Approvals availableyes
Clamping strength10 mm
WAF17
Version forFor pushing in
ROHS-conformantyes
Thread length53 mm
Drill hole diameter, min.10 mm
Drill hole depth74,5 mm
Thread typeMetric
DimensionM10x95
SurfaceElectrogalvanised
MaterialSteel
Colourzinc
Mounting type, anchor, tiePush-through mounting, Pre-mounting, Stand-off mounting
Version, tieBolt
Tie fastening deviceNut
Tie screw systemHexagon head
Clamping range, min.10 mm
Clamping range, max.30 mm
ETA earthquake ratingC1 and C2

Downloads

0 selected

Data sheet (1)
Declarations (2)
Certificates (1)
Product images (2)
Tender specifications (1)

Variants

Length
Thread
FAZIIPlus 8/10
Item no.
3498900
Length
75
Thread
M8
Material
Steel
FAZIIPlus 8/30
Item no.
3498902
Length
95
Thread
M8
Material
Steel
FAZIIPlus 10/10
Item no.
3498912
Length
95
Thread
M10
Material
Steel
FAZIIPlus 10/30
Item no.
3498914
Length
115
Thread
M10
Material
Steel
