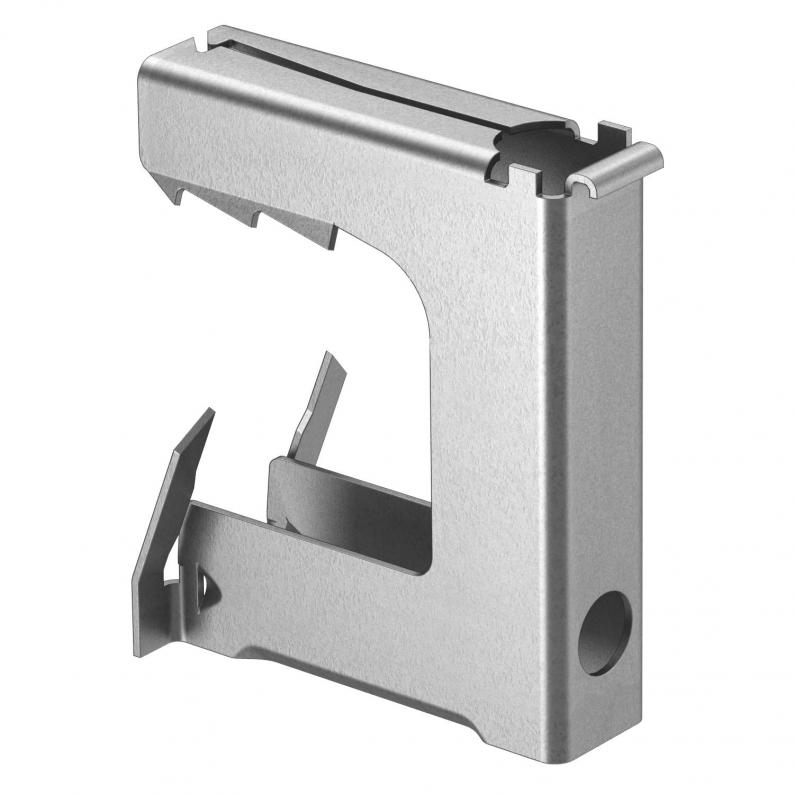

Beam clamp, multifunctional
Type TK MULTI 8
|Item no. 1485140
|EAN 4012195928126
Item no. / Type
Width
Height
Dimension B
Flange thickness F min.
Flange thickness F max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
The multifunctional beam clamp is suitable for fastening cables, protective pipes and cable sections on steel girders of any size (one clip for every application). Here, the beam clamp is very versatile thanks to various fastening options. Mounting of the beam clamp is quick and efficient, with no need for welding or drilling. It is simply mounted by hammering or pushing into place. The beam clamp can be used in both internal and external areas.
Technical data

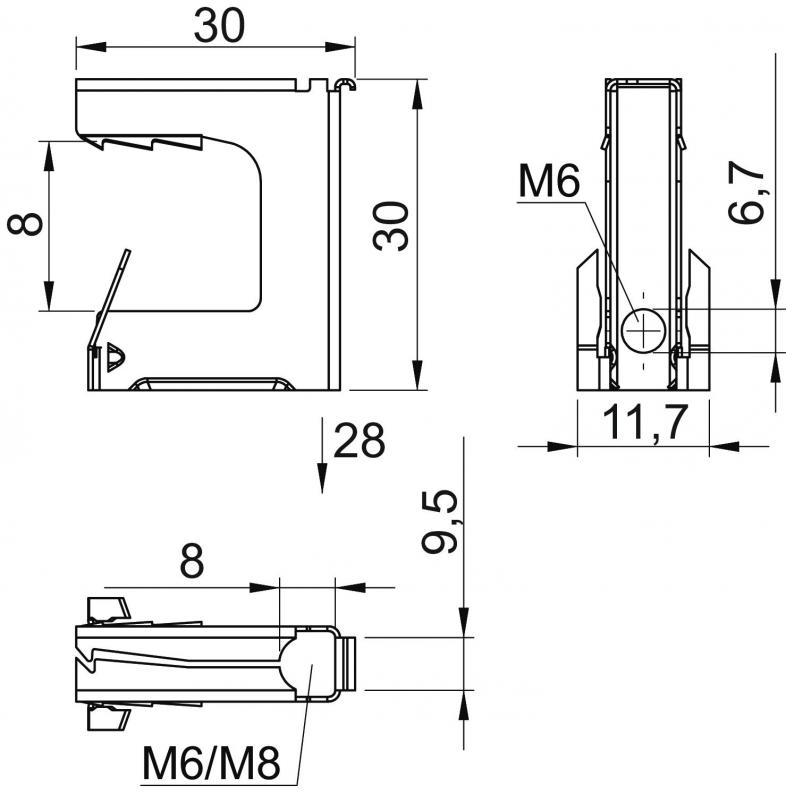

Dimensions
| Width | 30 mm |
|---|---|
| Height | 30 mm |
| Dimension A | 8 mm |
| Dimension B | 30 mm |
| Dimension H | 30 mm |
| Dimension F | 28 mm |
| Dimension G (mm) | 20 |
| Dimension E | 27 mm |
| Dimension D | 11,7 mm |
Technical data
| Hinged | no |
|---|---|
| Hinge, adjustable | no |
| Breaking load | 1,2 kN |
| Fastening type | Clamp |
| Connection type/component | Miscellaneous |
| Flange thickness F min. | 2 mm |
| Flange thickness F max. | 8 mm |
| Dimension | 2-8mm |
| Surface | Galvanised, MAGNI 565 |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (3)
Tender specifications (2)
Variants
Type
Width
Height
Dimension B
Flange thickness F min.
Flange thickness F max.
Item no.
TK MULTI 8
30
30
30
2
8
1485140
TK MULTI 16
32
38
32
8
16
1485144
TK MULTI 24
42
48
42
16
24
1485148
Width
Height
Dimension B
Flange thickness F min.
Flange thickness F max.
TK MULTI 8
Item no.
1485140
Width
30
Height
30
Dimension B
30
Flange thickness F min.
2
Flange thickness F max.
8
TK MULTI 16
Item no.
1485144
Width
32
Height
38
Dimension B
32
Flange thickness F min.
8
Flange thickness F max.
16
TK MULTI 24
Item no.
1485148
Width
42
Height
48
Dimension B
42
Flange thickness F min.
16
Flange thickness F max.
24
