Beam clamp, horizontal BFK 187 FT

Beam clamp, horizontal BFK 187 FT

Type BFK 187 33 FT
|
Item no. 6003892
|
EAN 4012196079919
Show all variants
Item no. / Type
6003892 / BFK 187 33 FT

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

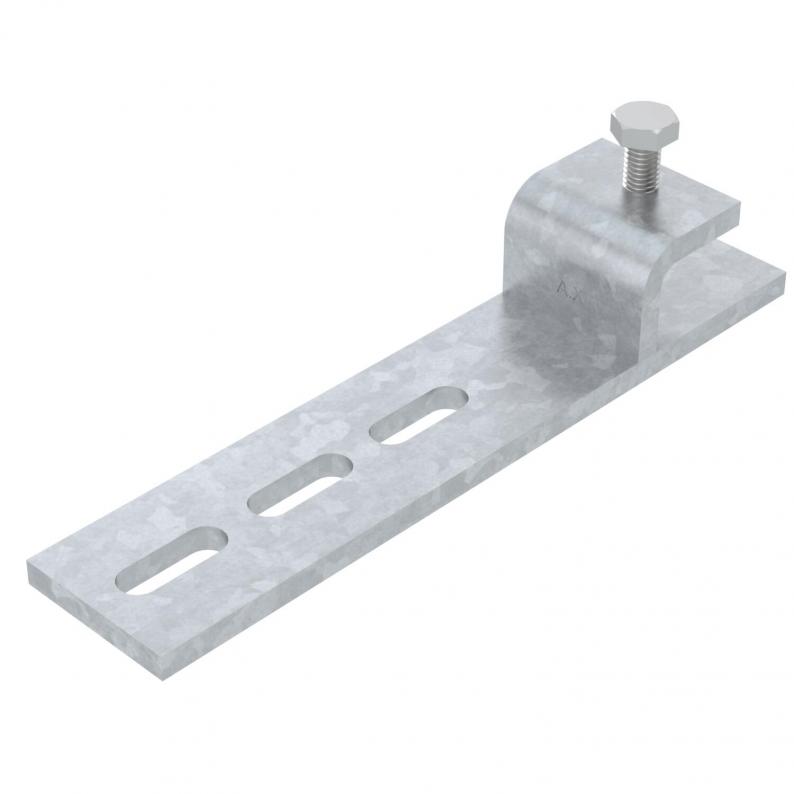

Beam clamp for clamping on the steel girder.

The cable support system attached to the beam clamp runs horizontally.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

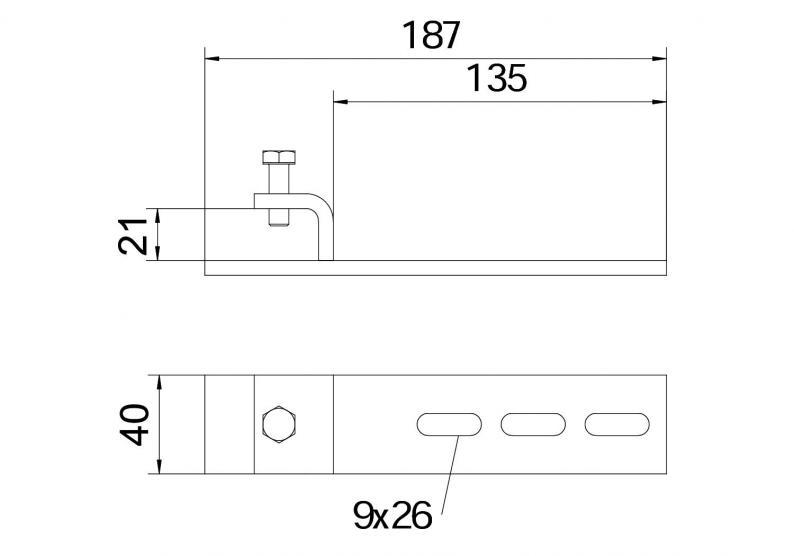

Dimensions

Width187 mm
Height20 mm
Dimension B187 mm
Dimension b135 mm
Dimension B1135 mm

Technical data

Suitable for profile shapesC profile
Version forMiscellaneous
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,999 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

BFK 187 33 FT
Item no.
6003892
Dimension b
135
