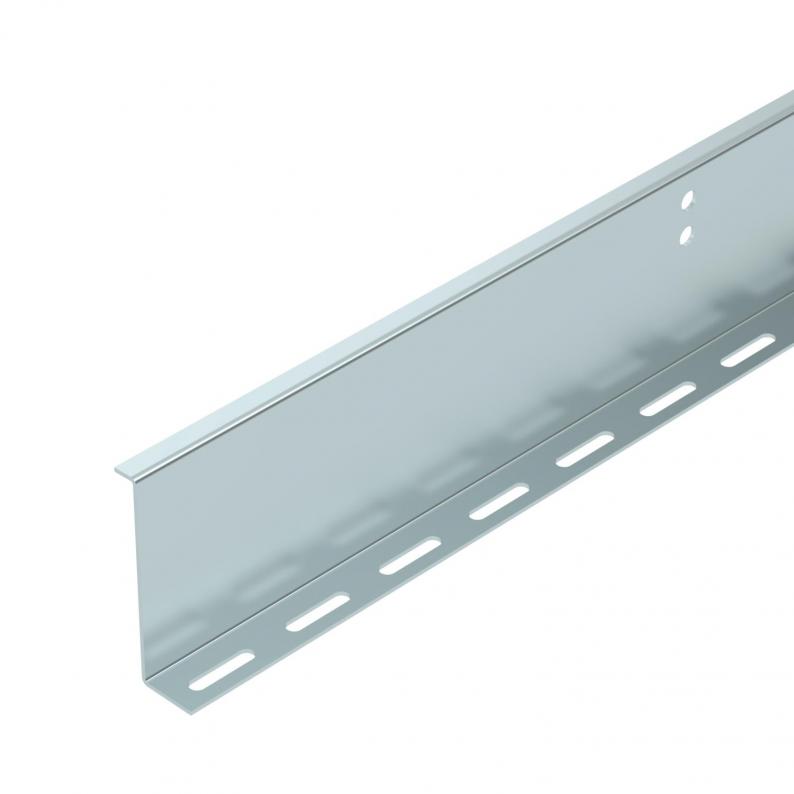

Barrier strip, Z-shaped 100 FS
Type TSG100Z BKRS FS
|Item no. 6062390
|EAN 4012196341788
Item no. / Type
6062390 / TSG100Z BKRS FS
Smallest selling unit: 3 m
3m
m
Description
Barrier strip for the BKRS walkable cable tray system. Fastening with truss-head bolts M6 x 12 in the base perforation.
For widths of 200 mm or more, a barrier strip with a maximum compartment size of 220 mm should be used.
For widths of 500 mm or more, two barrier strips with a maximum compartment size of 220 mm should be used.
Technical data

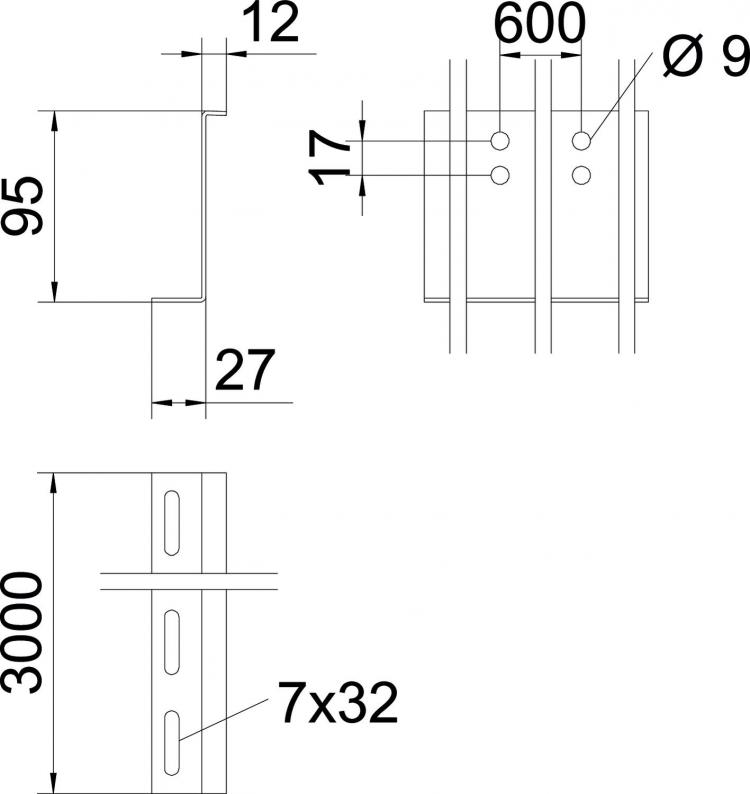

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 34 mm |
| Height | 95 mm |
| Dimension L | 3000 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Fastening perforation (ETIM) | yes |
| Version for | Miscellaneous |
| Dimension | 100x2x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,3791 kg CO2e / 1 Meter |
