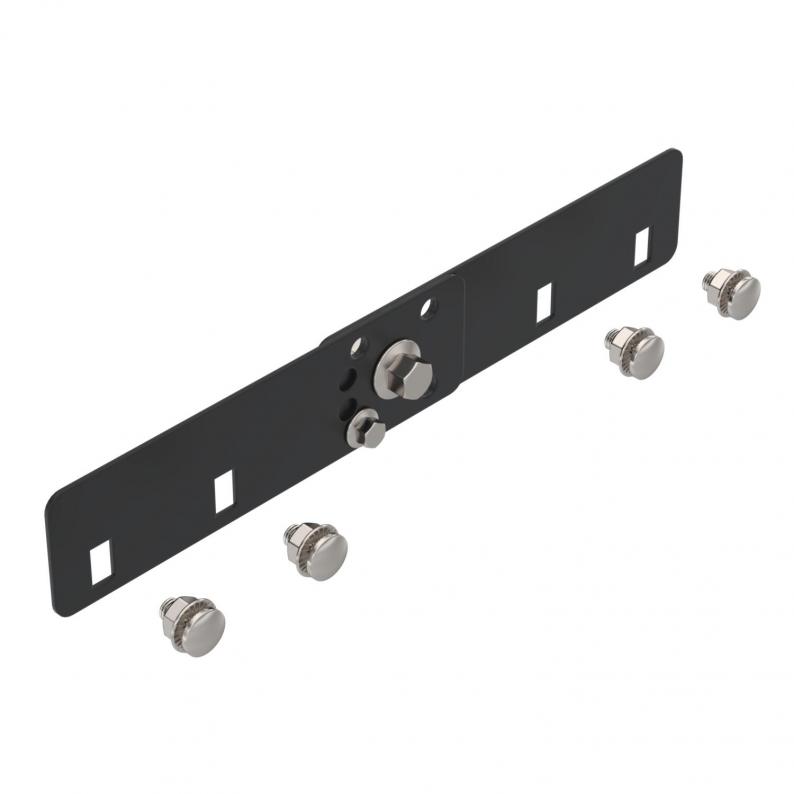

Articulated connector 60 FSK SW
Type GKSGV 60 FSK SW
|Item no. 6487884
|EAN 4012197464998
Item no. / Type
6487884 / GKSGV 60 FSK SW
Colour
Jet black; RAL 9005
Smallest selling unit: 20 piece
20piece
piece
Description
Articulated connector for vertical changes of direction of cable trays and barrier strips. Including appropiate fastening material.
Technical data

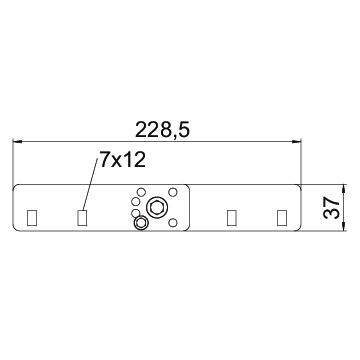

Dimensions
| Length | 229 mm |
|---|---|
| Width | 3 mm |
| Height | 37 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Quantity of bolts | 4 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Dimension | 37 x 229 |
| Suitable for cable support system width, min. | 50 mm |
| Suitable for cable support system width, max. | 500 mm |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight and angle connector |
| Connection type | Screw connector |
| Dimension | 60 |
| Surface | PES50 - Polyester/epoxy |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
