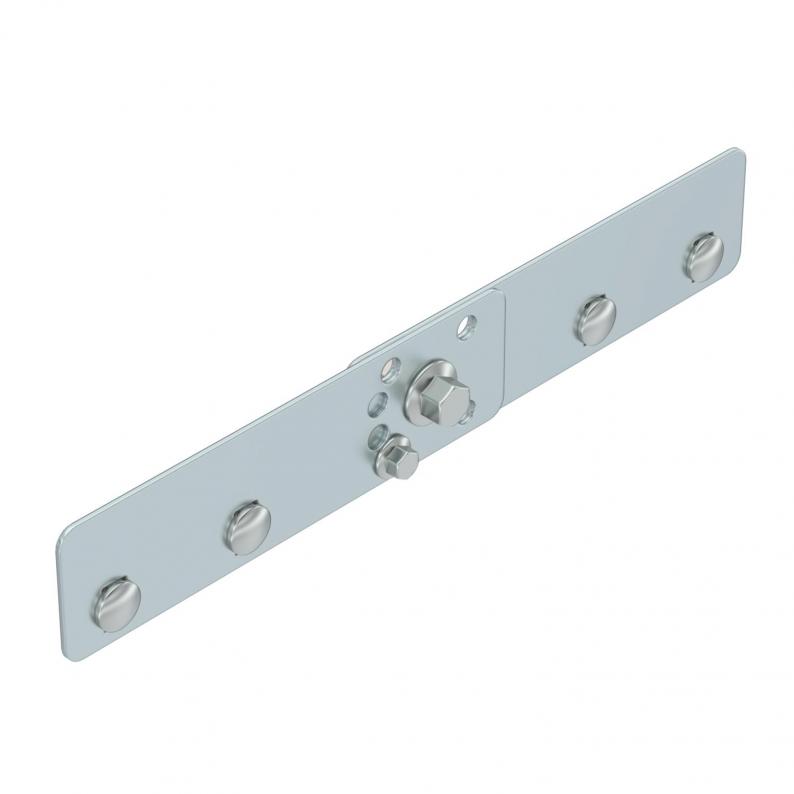

Articulated connector 60 FS
Type GKSGV 60 FS
|Item no. 6481350
|EAN 4012195495123
Item no. / Type
6481350 / GKSGV 60 FS
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Adjustable connector for vertical changes of direction of cable trays and barrier strips.
Including appropriate fastening material.
Technical data

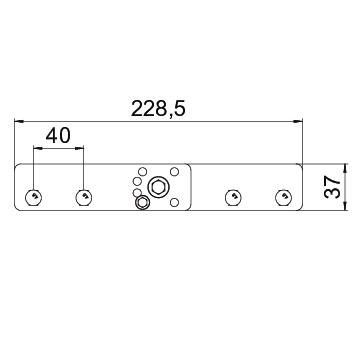

Dimensions
| Length | 229 mm |
|---|---|
| Height | 37 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Plate thickness | 1,5 mm |
| Quantity of bolts | 4 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Dimension | 37 x 229 |
| Suitable for cable tray system height | 60 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Dimension | 37x229 mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Height
Plate thickness
Colour
Item no.
GKSGV 60 FS
37
1,5
zinc
6481350
GKSGV 60 FS
Item no.
6481350
Height
37
Plate thickness
1,5
Colour
zinc
