Angle connector 75 FS
Type LWVG 75 FS
|Item no. 6487364
|EAN 4012196513345
Item no. / Type
6487364 / LWVG 75 FS
Smallest selling unit: 10 piece
10piece
piece
Description

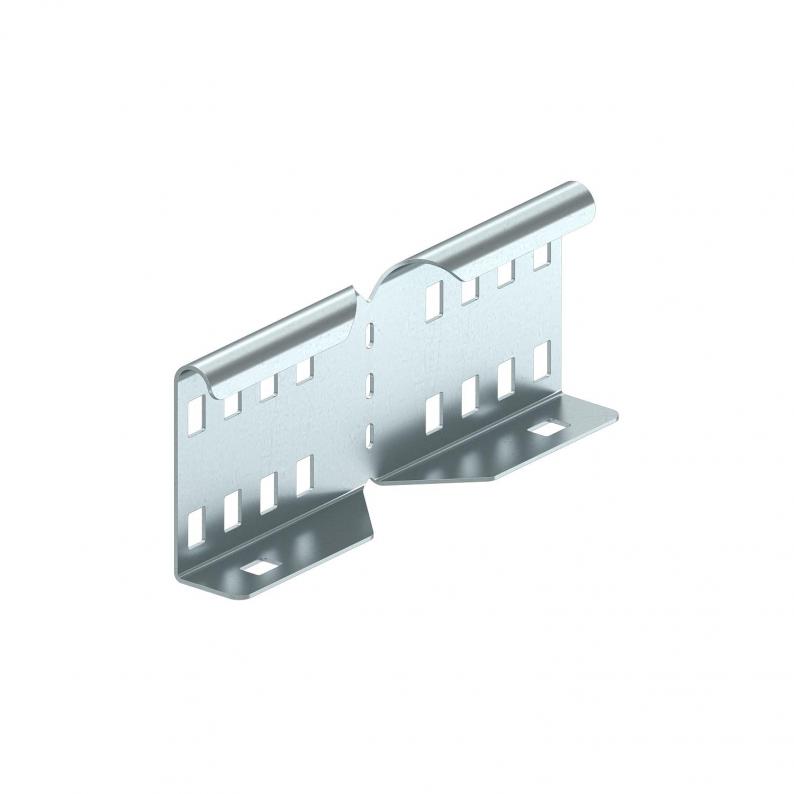

Angle connector as external connector to join cable ladders and fittings with a side height of 75 mm and continuous rail perforation.
Technical data

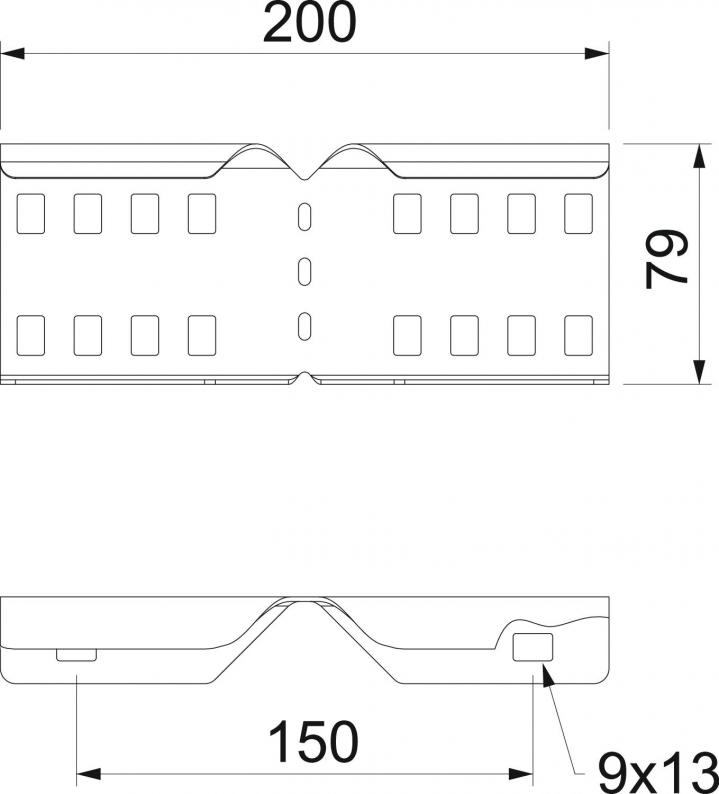

Dimensions
| Length | 200 mm |
|---|---|
| Height | 75 mm |
Technical data
| Suitable for cable tray system height | 75 mm |
|---|---|
| Dimension | 75 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Height
Item no.
LWVG 75 FS
75
6487364
LWVG 75 FS
Item no.
6487364
Height
75
