Angle connector 60 FS
Type GKSGO 60 FS
|Item no. 6481352
|EAN 4012195495147
Item no. / Type
6481352 / GKSGO 60 FS
Smallest selling unit: 1 piece
1piece
piece
Description
Angle connector for horizontal changes of direction of cable trays, fittings and barrier strips.
Including appropriate fastening material.
Technical data

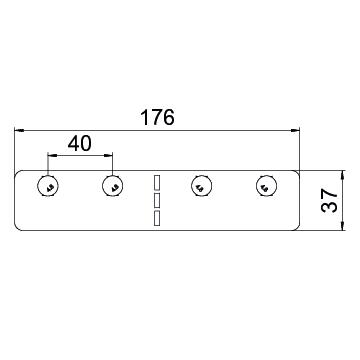

Dimensions
| Length | 176 mm |
|---|---|
| Height | 37 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Quantity of bolts | 4 St. |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | yes |
| Articulated connector, vertical | no |
| Dimension | 37 x 176 |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight and angle connector |
| Connection type | Screw connector |
| Dimension | 37x176 mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
