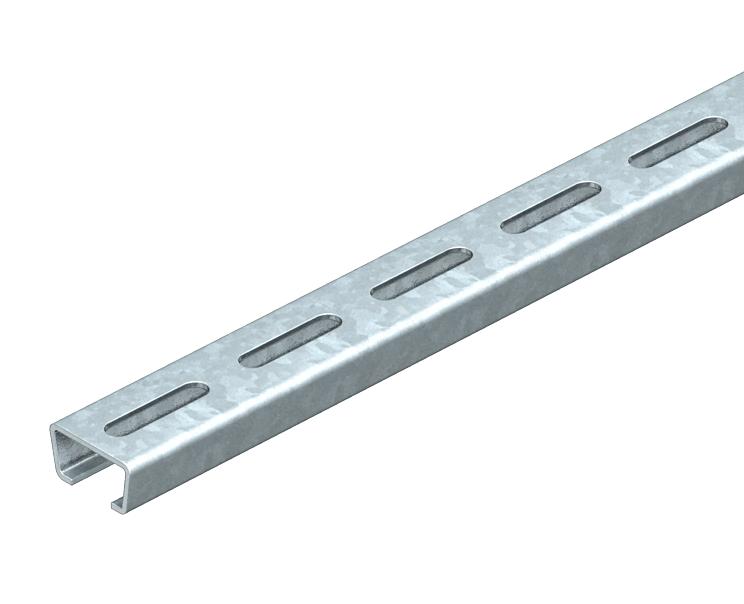

Anchor rail AMS3518, slot 16.5 mm, FT, perforated
Type AMS3518P2000FT
|Item no. 1112759
|EAN 4012195632535
Item no. / Type
1112759 / AMS3518P2000FT
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 2 m
2m
m
Description
Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
Technical data

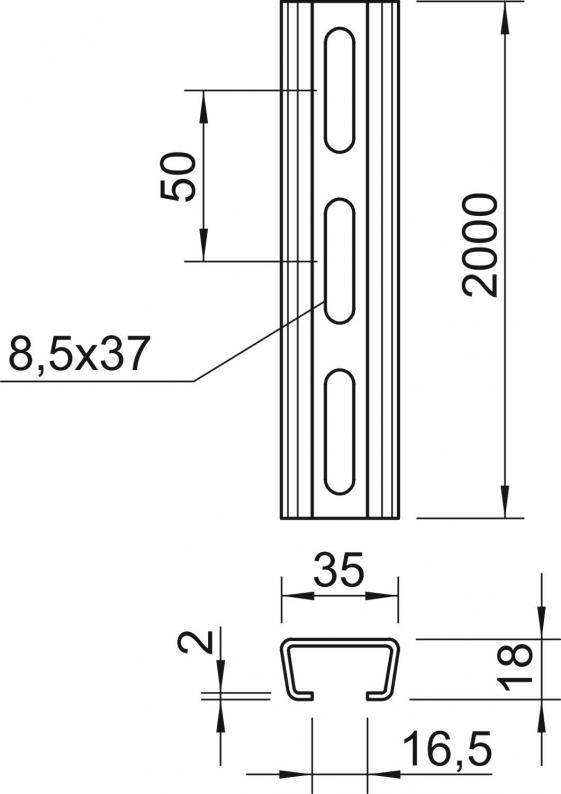

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 35 mm |
| Height | 18 mm |
| Dimension L | 2000 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Slot width | 16,5 mm |
| Material thickness | 2 mm |
| Static value A | 1,31 cm² |
| Static value ly | 0,54 cm⁴ |
| Static value lz | 2,31 cm⁴ |
| Static value Wy | 0,52 cm³ |
| Static value Wz | 1,32 cm³ |
| Profile shape | C profile |
| Type of perforation | Perforated back |
| Drill hole spacing, centre | 50 mm |
| With perforation | yes |
| Breakable | no |
| With toothing | no |
| Bundle | 20 m |
| Version for | Single profile |
| Dimension | 2000x35x18 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,4509 kg CO2e / 1 Meter |
