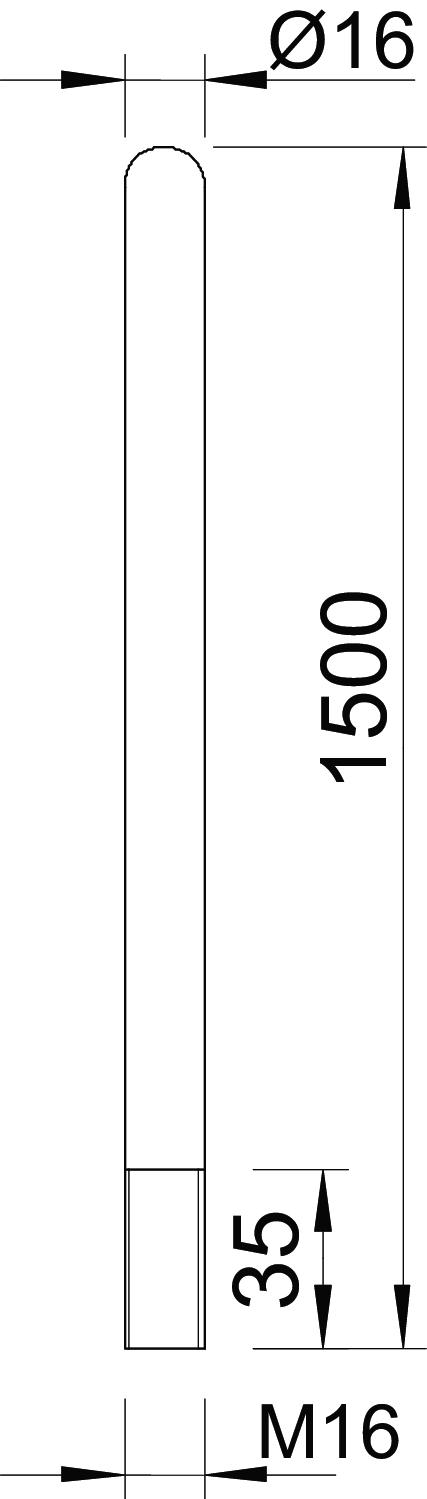

Air-termination rod, one end rounded, M16 thread
Type 101 CU M16 1500
|Item no. 5450274
|EAN 4012196883127
Item no. / Type
5450274 / 101 CU M16 1500
Smallest selling unit: 5 piece
5piece
piece
Description
• Made of steel with a copper sheath of min. 0.25 mm
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Nominal size Ø | 16 mm |
|---|---|
| High voltage-resistant, insulated version | no |
| Connection | Round conductor |
| Version for | Air-termination rod with thread |
| Material | Copper |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Nominal size Ø
Item no.
101 CU M16 1500
16
5450274
101 CU M16 1500
Item no.
5450274
Nominal size Ø
16
