Air-termination rod, one end rounded
Type 101 CU M16 500
|Item no. 5450270
|EAN 4012196883172
Item no. / Type
Length
Nominal size Ø
Smallest selling unit: 5 piece
5piece
piece
Description
• With M16 thread
• Complies with the requirements of VDE 0185-350 (IEC 62305)
• Complies with the requirements of VDE 0185-350 (IEC 62305)
Technical data

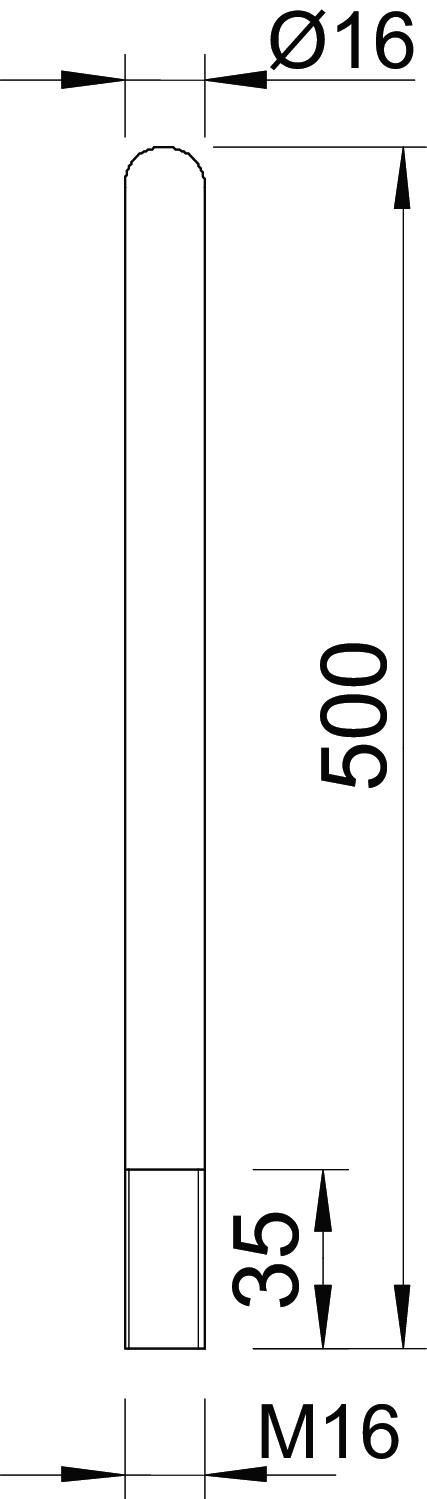

Dimensions
| Length | 500 mm |
|---|
Technical data
| Nominal size Ø | 16 mm |
|---|---|
| High voltage-resistant, insulated version | no |
| Connection | Round conductor |
| Version for | Air-termination rod with thread |
| Material | Copper |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Nominal size Ø
Item no.
101 CU M16 500
500
16
5450270
101 CU M16 1000
1000
16
5450272
101 CU M16 2000
2000
16
5450276
Length
101 CU M16 500
Item no.
5450270
Length
500
Nominal size Ø
16
101 CU M16 1000
Item no.
5450272
Length
1000
Nominal size Ø
16
101 CU M16 2000
Item no.
5450276
Length
2000
Nominal size Ø
16
