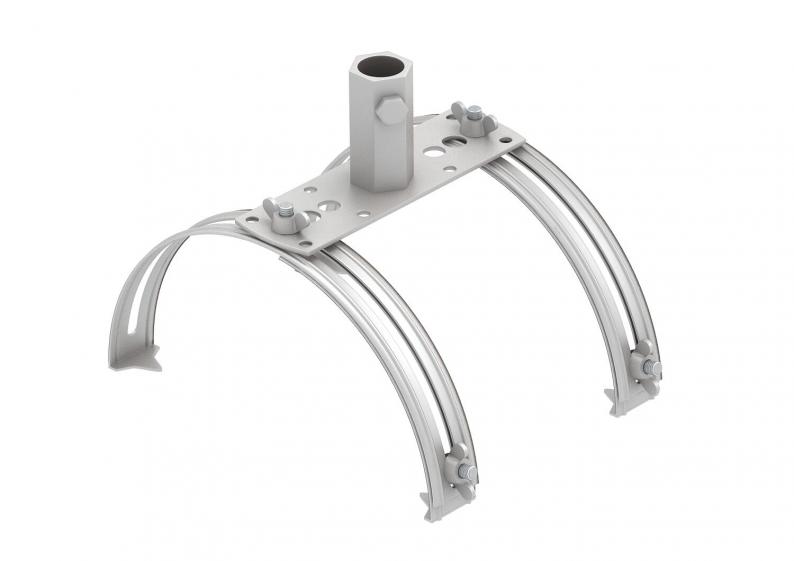

Air-termination rod holder for ridge tiles
Type F-FIX-132
|Item no. 5403330
|EAN 4012195613572
Item no. / Type
5403330 / F-FIX-132
Smallest selling unit: 1 piece
1piece
piece
Description

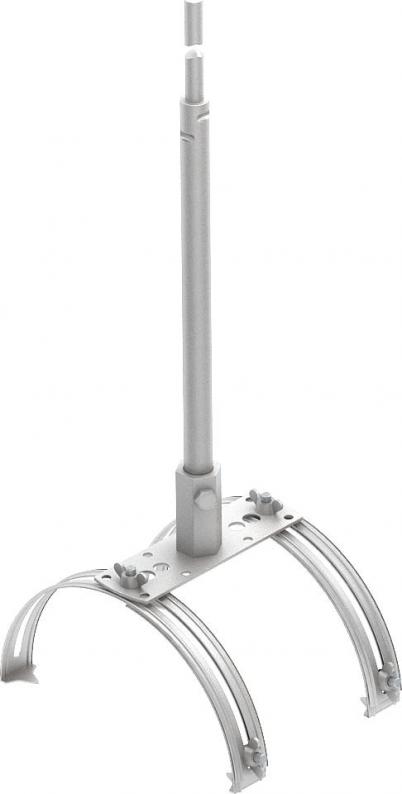

Rod holder for ridge tiles, for simple, quick and safe fastening of Ø 16 mm air-termination rods
• System consisting of holder made of V2A stainless steel and aluminium air-termination rods
• Quick and easy mounting thanks to pre-mounted air-termination rod
• Air-termination rod length: 1,000 mm
• Width adjustable between 180−260 mm
• Spacing of the ridge holders: 110 mm (5403330)
• Spacing of the ridge holders: 300 mm (5403333)
Application: To protect roof structures such as photovoltaic and TV/SAT systems.
• System consisting of holder made of V2A stainless steel and aluminium air-termination rods
• Quick and easy mounting thanks to pre-mounted air-termination rod
• Air-termination rod length: 1,000 mm
• Width adjustable between 180−260 mm
• Spacing of the ridge holders: 110 mm (5403330)
• Spacing of the ridge holders: 300 mm (5403333)
Application: To protect roof structures such as photovoltaic and TV/SAT systems.
Technical data

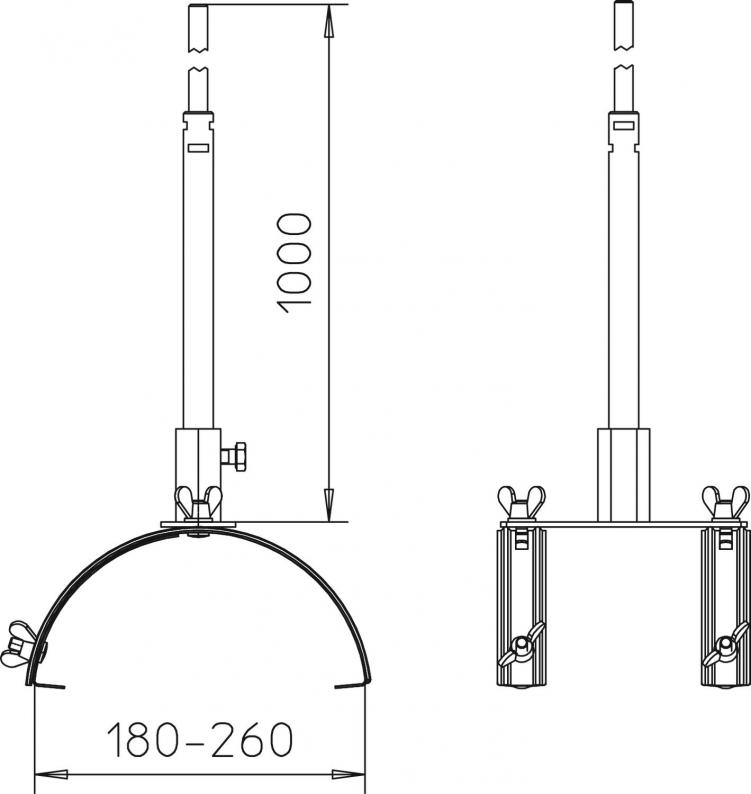

Dimensions
| Dimension L | 110 mm |
|---|
Technical data
| Dimension | 1m |
|---|---|
| Material | Stainless steel 1.4301 |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,9772 kg CO2e / 1 Piece |
